Nissan Ariya: Li-Ion Battery
Nissan Ariya (FE0) 2023-2025 Service & Repair Manual / Electric Power Train / Ev Battery System :: 91kwh Li-Ion Battery / Service Data / Li-Ion Battery
2wd Nissan Ariya 1st generation
Service Data
| Items | Specification | ||
|---|---|---|---|
| Type | Li-ion battery | ||
| Structure | 16 modules [2P96S (192 cells)] | ||
| Rated voltage | (V) | Approx. 352 | |
| Battery capacity | (kWh) | Approx. 91 | |
| Weight | [kg(lb)] | Approx. 572 (1261.3) | |
|
|
|||

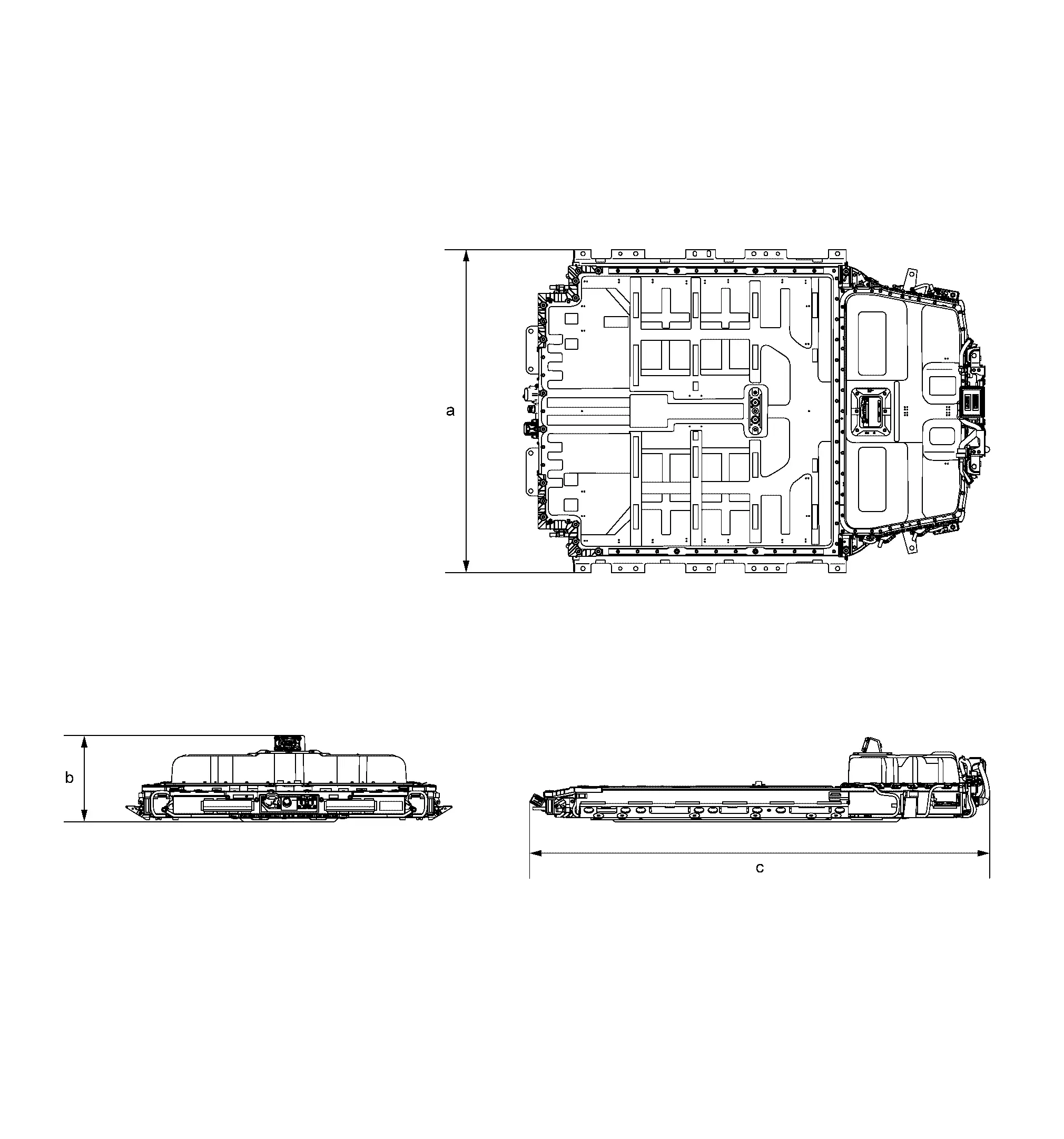

| External dimension | “a” | [mm(in)] | 1456 (57.32) |
| “b” | [mm(in)] | 384.6 (15.14) | |
| “c” | [mm(in)] | 2099.4 (82.65) | |
Awd Nissan Ariya SUV
Service Data
NOTE:

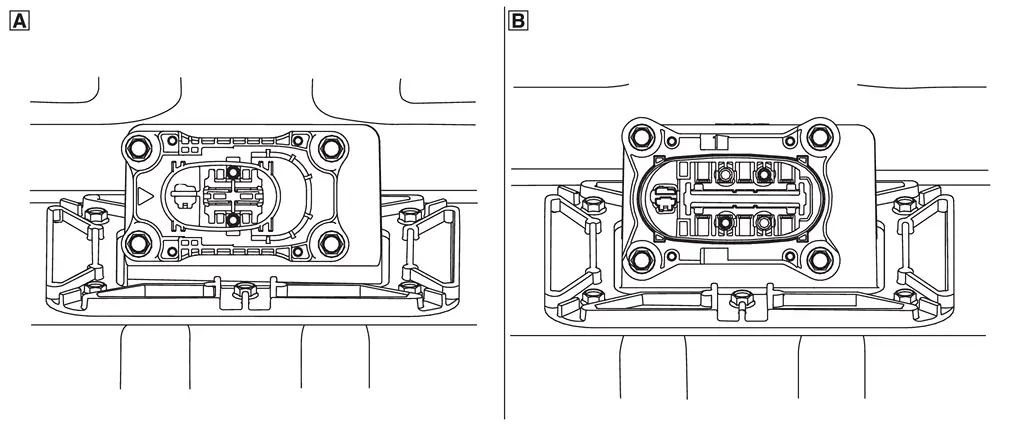

The size of service plug switch differs depends on Li-ion Battery specification. Remove the service plug and confirm its form.
: TYPE A
: TYPE B
| Items | Specification | ||
|---|---|---|---|
| Type | Li-ion battery | ||
| Structure | 16 modules [2P96S (192 cells)] | ||
| Rated voltage | (V) | Approx. 352 | |
| Battery capacity | (kWh) | Approx. 91 | |
| Weight | [kg(lb)] | Approx. 582 (1283.3) | |
|
|
|||
| Items | Specification | |||
|---|---|---|---|---|

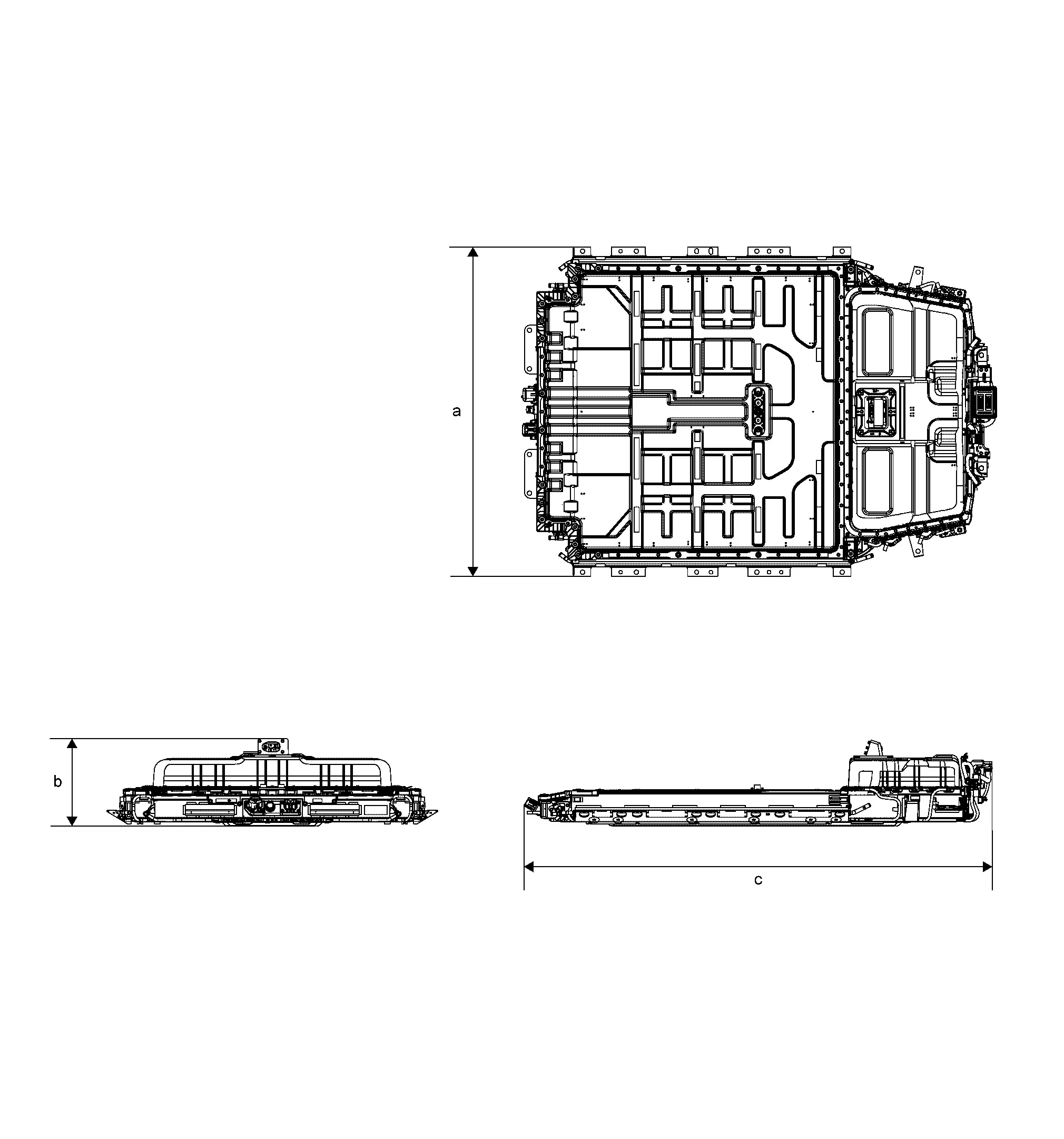

| External dimension | “a” | [mm(in)] | 1456 (57.32) | |
| “b” | [mm(in)] | 384.6 (15.14) | ||
| “c” | [mm(in)] | 2101.5 (82.74) | ||
| Items | Specification | |||
|---|---|---|---|---|
| External dimension | “a” | [mm(in)] | 1456 (57.32) | |
| “b” | [mm(in)] | 389.0 (15.31) | ||
| “c” | [mm(in)] | 2101.5 (82.74) | ||
