Nissan Ariya: Periodic Maintenance

• Headlamp Aiming Adjustment
• Front Fog Lamp Aiming Adjustment

Headlamp Aiming Adjustment

Adjustment

DESCRIPTION

PREPARATION BEFORE ADJUSTING

NOTE:

• For details, refer to the regulations in your own country.

• Perform aiming if the Nissan Ariya vehicle front body has been repaired and/or the headlamp assembly has been replaced.

Before performing aiming adjustment, check the following.

• Adjust the tire pressure to the specification.

• Fill with fuel, coolant and each oil.

• Maintain the unloaded Nissan Ariya vehicle condition. (Remove luggage from the passenger compartment and the luggage room.)

  NOTE:

  Never remove temporary tire, jack and on-Nissan Ariya vehicle tool.

• Wipe out dirt on the headlamp.

  CAUTION:

  Never use organic solvent (thinner, gasoline etc.).

• Ride alone on the driver seat.

• Headamp aiming switch sets "0".

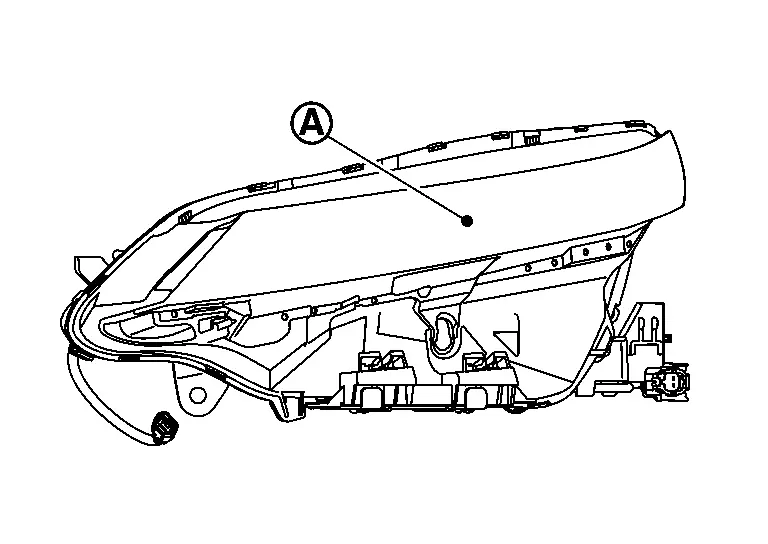

BULB CENTER WHEN ADJUSTING THE AIMING

When performing aiming adjustment, set headlamp (Lo) center at headlamp center mark .

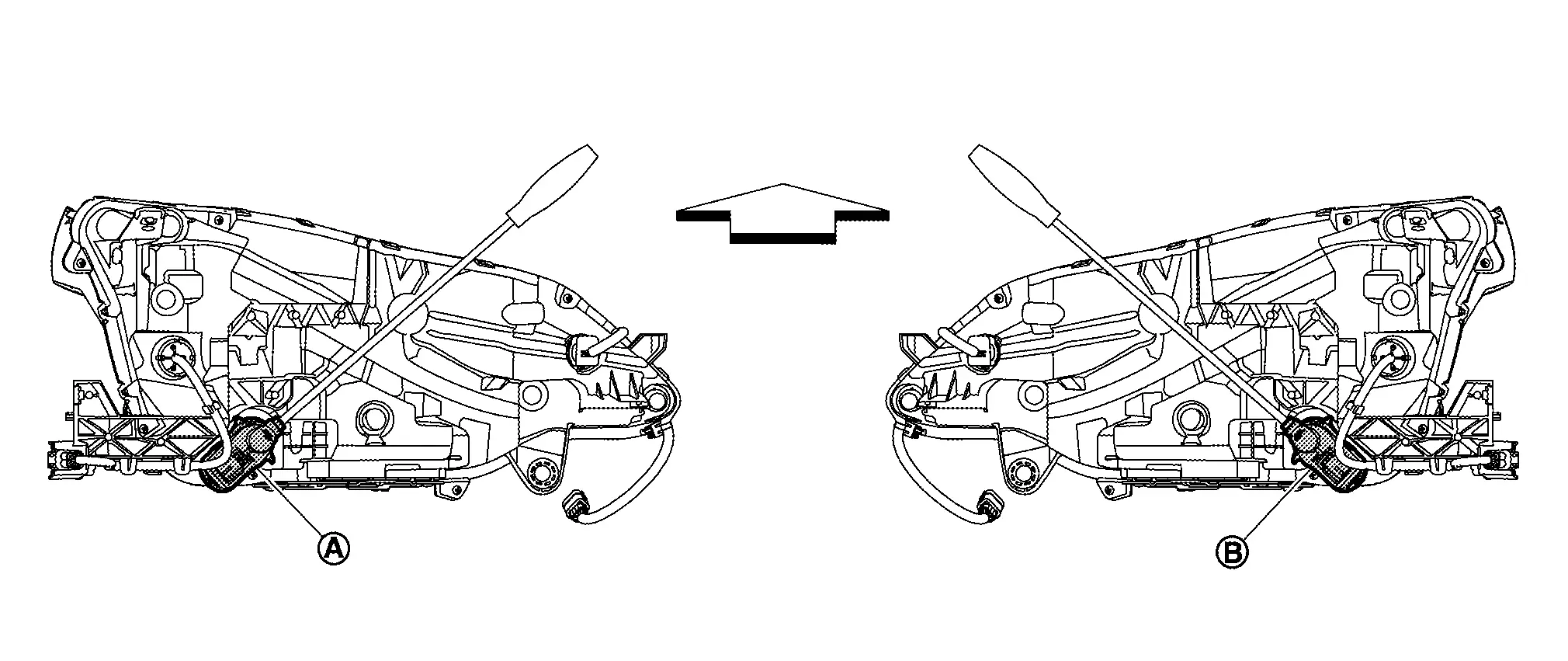

AIMING ADJUSTMENT SCREW

	Headlamp LH (UP/DOWN) adjustment screw		Headlamp RH (UP/DOWN) adjustment screw
	: Nissan Ariya Vehicle front

Adjustment screw		Screwdriver rotation	Facing direction
	Headlamp LH (UP/DOWN)	Clockwise	UP
		Counterclockwise	DOWN
	Headlamp RH (UP/DOWN)	Clockwise	UP
		Counterclockwise	DOWN

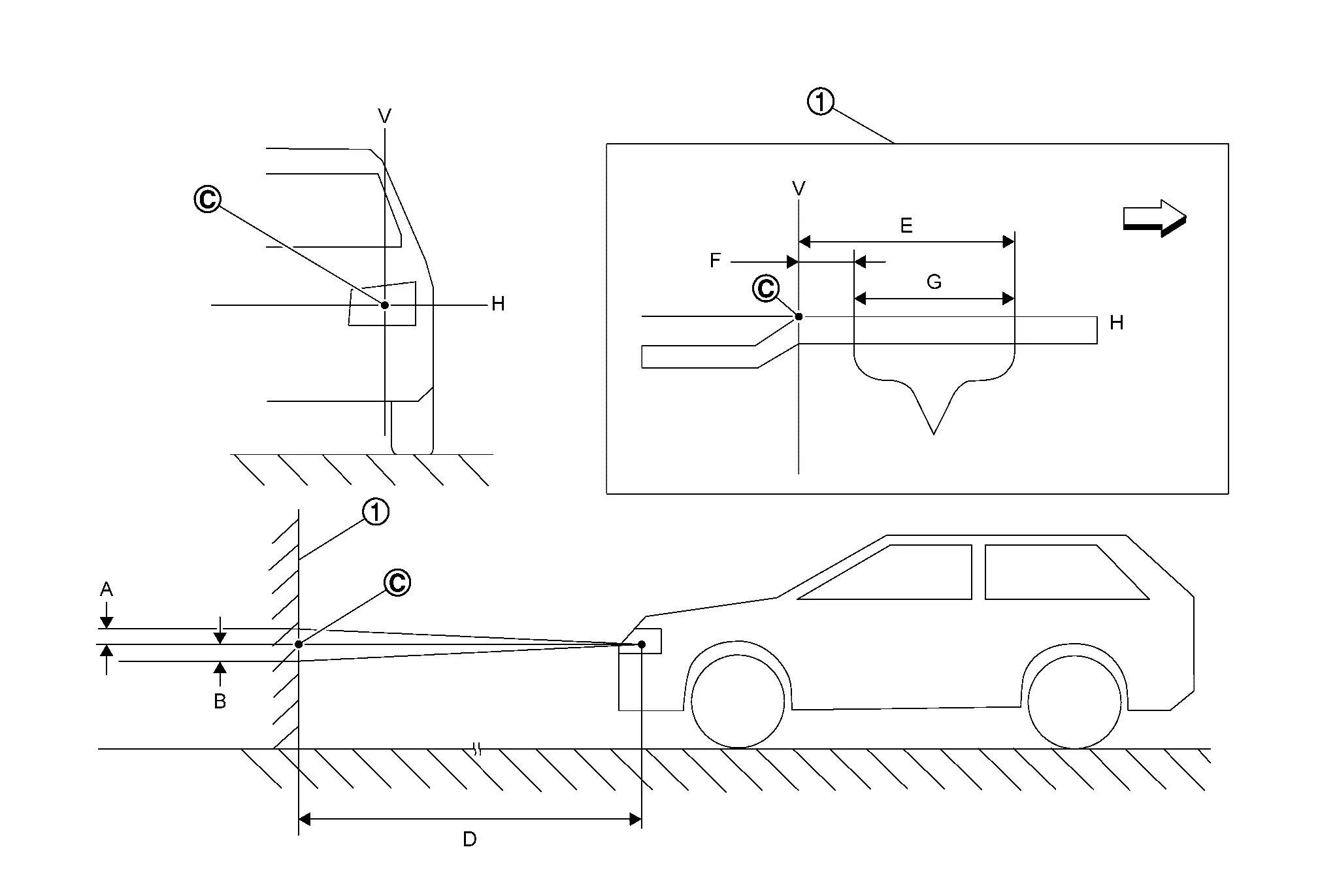

AIMING ADJUSTMENT PROCEDURE

	Adjustment screen		Highest cutoff line height		Lowest cutoff line height
	Headlamp bulb center (H-V point)	D.	Distance of headlamp aiming screen from Nissan Ariya vehicle 7.62 m (25 ft) or 10 m (32.8 ft)	E.	Maximum aim evaluation distance from vertical center on aiming screen 399 mm (3°R)
F.	Minimum aim evaluation distance from vertical center on aiming screen 133 mm (1°R)	G.	Aim evaluation area		Horizontal aiming evaluation line
	Vertical aiming evaluation line
	: Nissan Ariya Vehicle right

D
	mm	deg	mm	deg
7.62 m (25 ft)	10	0.75° up	10	0.75° down
10 m (32.8 ft)	13	0.75° up	13	0.75° down

NOTE:

• Basic illuminating area for evaluation and/or adjustment should be within range shown on aiming chart.

Use adjustment screw to perform aiming adjustment.

• Ensure fog lamps (if equipped) are turned off.

• The Nissan Ariya vehicle should have its standard load, which may include any outfitting or other equipment. Any load that is normally carried in the Nissan Ariya vehicle should be in the vehicle while verifying or performing headlamp adjustment. Any other load should be removed.

Block the opposite headlamp from projecting a beam pattern onto the adjustment screen, using a suitable object. Aim each headlamp individually.

CAUTION:

Do not cover the lens surface with a tape etc. The lens is made of resin.

Place the screen on the same level and flat surface as the Nissan Ariya vehicle.

NOTE:

Surface should be free of any debris that would cause a difference between the headlamp center and the adjustment screen.

Face the front of the Nissan Ariya vehicle to the screen and measure distance between the headlamp center and the screen surface.

Start the engine. Turn the headlamp on.

Determine the preferred vertical aim range dimensions, using the aiming chart.

Measure the projected beam within the aim evaluation segment on the screen.

Adjust the beam pattern of each headlamp until the aim evaluation segment (the area relative to both the highest and lowest cutoff line height) is positioned within the vertical aim range dimensions shown on the aiming chart.

Front Fog Lamp Aiming Adjustment

Adjustment

DESCRIPTION

PREPARATION BEFORE ADJUSTING

NOTE:

For details, refer to the regulations in your own country.

Before performing aiming adjustment, check the following.

• Adjust the tire pressure to the specification.

• Fill with fuel, coolant and each oil.

• Maintain the unloaded Nissan Ariya vehicle condition. (Remove luggage from the passenger compartment and the luggage room.)

  NOTE:

  Never remove temporary tire, jack and on-Nissan Ariya vehicle tool.

• Wipe out dirt on the headlamp.

  CAUTION:

  Never use organic solvent (thinner, gasoline etc.).

• Ride alone on the driver seat.

AIMING ADJUSTMENT SCREW

Turn the aiming adjusting screw for adjustment.

: UP

: DOWN

AIMING ADJUSTMENT PROCEDURE

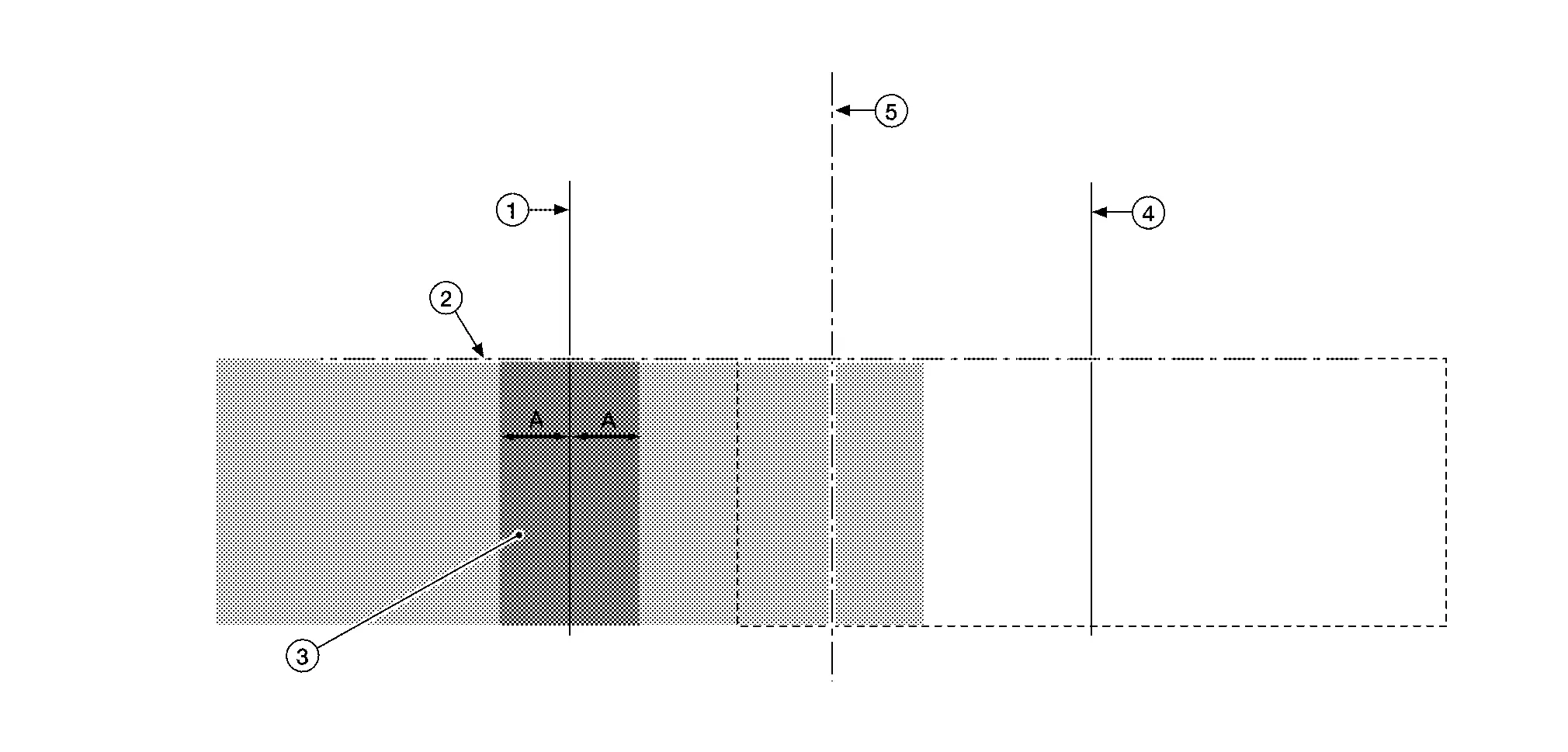

Aiming Chart

	Vertical center line of front fog lamp (LH)		Lamp center above ground		Front fog lamp high intensity area (LH)
	Vertical center line of front fog lamp (RH)		Vertical center axis
A	: 100mm (4in)

NOTE:

• (LH) Front fog lamp aiming specifications shown, (RH) similar.

• Check the following conditions before performing the aiming adjustment.

  • Keep all tires inflated to correct pressure.

  • Place Nissan Ariya vehicle on level ground.

  • See that vehicle is unloaded (except for full levels of coolant, engine oil and fuel, and spare tire, jack, and tools). Have the driver or equivalent weight placed in driver seat.

  • When performing adjustment, if necessary, cover the headlamps and opposite front fog lamp.

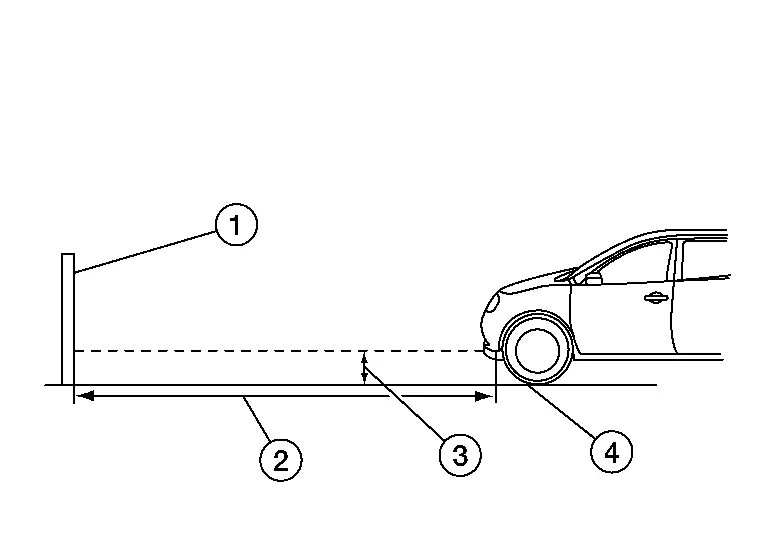

Set the distance between the screen and the center of the front fog lamp lens as shown.

Aiming screen or a matte white surface

7.62 m (25 ft)

Floor to center of front fog lamp lens

Floor

Turn front fog lamps ON.

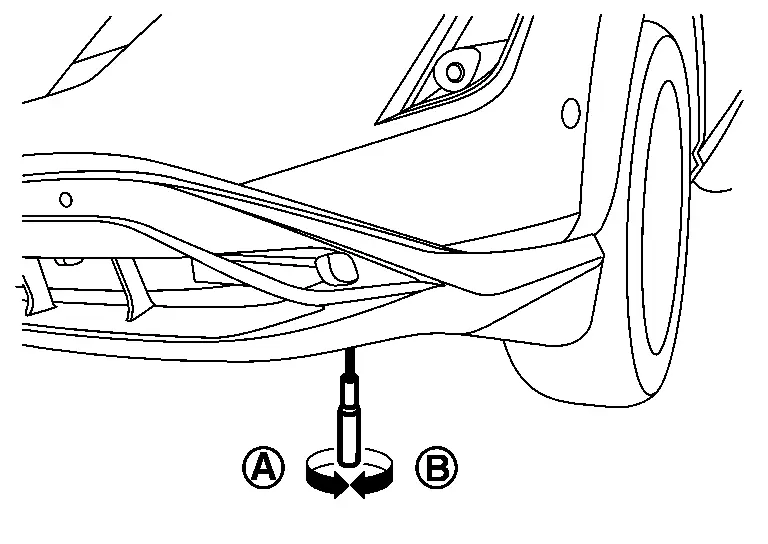

Access adjusting screw from underneath front bumper fascia. Adjust front fog lamps using adjusting screw so that the top edge of the high intensity zone is at the front fog lamp centers above ground.
