Nissan Ariya: Precaution

Nissan Ariya (FE0) 2023-2025 Service & Repair Manual / Body Exterior, Doors, Roof & Vehicle Security / Body Repair :: Repair Information / Precaution

Repairing High Strength Steel

High Strength Steel (HSS) and Ultra High Strength Steel (UHSS)

High strength steel and ultra high strength steel are used for body panels in order to reduce vehicle weight.

Accordingly, precautions in repairing automotive bodies made of high strength steel are described below:

UNDERBODY COMPONENT PARTS

ENGINE COMPARTMENT COMPONENT PARTS

Tensile strength Applicable parts
440 - 780 MPa

  • Hoodledge reinforcement

    (Hoodledge reinforcement component part)

  • Front suspension spring support

    (Front strut housing assembly component part)

  • Strut housing gusset

    (Front strut housing assembly component part)

  • Upper hoodledge

  • Lower blower cover mounting bracket

    (Lower dash crossmember component part)

  • Side dash

    (Side dash component part)

  • Inner front pillar reinforcement

    (Side dash component part)

  • Upper dash crossmember extension

    (Lower dash complete component part)

  • Lower dash reinforcement (Upper)

    (Lower dash complete component part)

  • Fuse block mounting bracket

    (Lower dash complete component part)

  • Blower bracket

    (Lower dash complete component part)

  • Center member reinforcement

    (Lower dash complete component part)

  • Lower rear dash

    (Lower dash complete component part)

  • Lower rear dash center

    (Lower dash complete component part)

  • Blower cover mounting bracket

    (Lower dash complete component part)

  • Nut plate
Tensile strength Applicable parts
980 - 1300 MPa

  • Side radiator core gusset

    (Upper radiator core support component part)

  • Lower center dash crossmember

    (Lower dash crossmember component part)

  • Lower dash crossmember reinforcement

    (Lower dash crossmember component part)

  • Inner front pillar reinforcement

    (Side dash component part)

  • Lower front pillar rear reinforcement (Upper)

    (Side dash component part)

  • Lower front pillar rear reinforcement (Lower)

    (Side dash component part)

  • Lower center dash crossmember reinforcement

    (Lower dash complete component part)

  • Front floor reinforcement

    (Lower dash complete component part)

  • Trans control reinforcement

    (Lower dash complete component part)

  • Lower dash reinforcement (RH & LH)

    (Lower dash complete component part)

  • Lower dash crossmember

    (Lower dash crossmember component part)

  • Lower dash crossmember reinforcement

    (Lower dash crossmember component part)

Read the following precautions when repairing HSS and UHSS:

FLOOR COMPONENT PARTS

Tensile strength Applicable parts
440 - 780 MPa

  • Front jack up point bracket

    (Inner sill component part)

  • Front sill bulkhead

    (Inner sill component part)

  • Front floor

    (Front floor assembly component part)

  • Inner front seat mounting bracket

    (Front floor assembly component part)

  • Rear floor front extension

    (Rear floor front extension component part)

  • Lower rear seat hinge bracket

    (Rear seat back support assembly component part)

  • Rear side floor (Front)

    (Rear side floor assembly component part)
Tensile strength Applicable parts
980 - 1300 MPa

  • Inner sill plate

    (Inner sill component part)

  • Inner front sill reinforcement (Upper)

    (Inner sill component part)

  • Inner front sill reinforcement (Lower)

    (Inner sill component part)

  • Inner sill

    (Inner sill component part)

  • Trans control reinforcement

    (Front floor assembly component part)

  • Front side member rear extension

    (Front floor assembly component part)

  • Front side member extension reinforcement

    (Front floor assembly component part)

  • Front floor reinforcement

    (Front floor assembly component part)

  • 2nd crossmember

    (Front floor assembly component part)

  • 3rd crossmember

    (Front floor assembly component part)

  • Rear floor front extension

    (Rear floor front extension component part)

  • Rear side member closing plate

    (Side member closing plate assembly component part)

  • Rear side floor (Rear)

    (Rear side floor assembly component part)

Read the following precautions when repairing HSS and UHSS:

FRONT AND REAR MEMBER COMPONENT PARTS

Tensile strength Applicable parts
440 - 780 MPa

  • Retainer bracket

    (Front bumper reinforcement assembly component part)

  • Inner front bumper stay

    (Front bumper stay component part)

  • Outer front bumper stay

    (Front bumper stay component part)

  • Inner center front bumper reinforcement

  • Front side member closing plate

    (Front side member closing plate component part)

  • Front side member flange

    (Front side member closing plate component part)

  • Outer front suspension mounting bracket

    (Front side member closing plate component part)

  • Front side member stiffener

    (Front side member closing plate component part)

  • Front side member extension brace

    (Front side member closing plate component part)

  • Front side member

    (Front side member assembly component part)

  • Front side member reinforcement

    (Front side member assembly component part)

  • Front suspension member mounting reinforcement

    (Front side member assembly component part)

  • Side radiator core support

    (Side radiator core support component part)

  • Side radiator core reinforcement

    (Side radiator core support component part)

  • 1st side member outrigger

    (Side member rear outrigger assembly component part)

  • Front towing hook reinforcement

    (Side member rear outrigger assembly component part)

  • Front tie down hook (Front)

    (Side member rear outrigger assembly component part)

  • Front outrigger reinforcement

    (Side member rear outrigger assembly component part)

  • Rear floor board reinforcement

  • Center rear crossmember assembly

  • Front connector reinforcement

    (Rear side member component part)

  • Rear jack up point bracket

    (Rear side member component part)

  • Rear suspension bracket connector

    (Rear side member component part)

  • Rear side member extension

    (Rear side member component part)

  • Front tie down hook (Rear)

    (Rear side member component part)
Tensile strength Applicable parts
980 - 1500 MPa

  • Lower front bumper reinforcement

    (Front bumper reinforcement assembly component part)

  • Front bumper stay back plate

    (Front bumper stay component part)

  • Front bumper stay reinforcement plate

    (Front bumper stay component part)

  • Front bumper reinforcement pend catcher

    (Inner center front bumper reinforcement component part)

  • Front bumper reinforcement

    (Inner center front bumper reinforcement component part)

  • Front side member rear

    (Front side member closing plate component part)

  • Front suspension mounting rear bracket

    (Front side member closing plate component part)

  • Front side member brace

    (Front side member assembly component part)

  • Front side member reinforcement

    (Front side member assembly component part)

  • Front outrigger reinforcement

    (Side member rear outrigger assembly component part)

  • 1st side member rear outrigger

    (Side member rear outrigger assembly component part)

  • Upper rear seat crossmember

  • Inner sill extension

    (Rear side member component part)

  • Rear side member

    (Rear side member component part)

  • Rear side member reinforcement

    (Rear side member component part)

Read the following precautions when repairing HSS and UHSS:

Tensile strength Applicable parts
440 - 780 MPa

  • Retainer bracket

    (Front bumper reinforcement assembly component part)

  • Inner front bumper stay

    (Front bumper stay component part)

  • Outer front bumper stay

    (Front bumper stay component part)

  • Inner center front bumper reinforcement

  • Front side member closing plate

    (Front side member closing plate component part)

  • Front side member flange

    (Front side member closing plate component part)

  • Outer front suspension mounting bracket

    (Front side member closing plate component part)

  • Front side member stiffener

    (Front side member closing plate component part)

  • Front side member extension brace

    (Front side member closing plate component part)

  • Front side member

    (Front side member assembly component part)

  • Front side member reinforcement

    (Front side member assembly component part)

  • Front suspension member mounting reinforcement

    (Front side member assembly component part)

  • Side radiator core support

    (Side radiator core support component part)

  • Side radiator core reinforcement

    (Side radiator core support component part)

  • 1st side member outrigger

    (Side member rear outrigger assembly component part)

  • Front towing hook reinforcement

    (Side member rear outrigger assembly component part)

  • Front tie down hook (Front)

    (Side member rear outrigger assembly component part)

  • Front outrigger reinforcement

    (Side member rear outrigger assembly component part)

  • Rear floor board reinforcement

  • Center rear crossmember assembly

  • Front connector reinforcement

    (Rear side member component part)

  • Rear jack up point bracket

    (Rear side member component part)

  • Rear suspension bracket connector

    (Rear side member component part)

  • Rear side member extension

    (Rear side member component part)

  • Front tie down hook (Rear)

    (Rear side member component part)
Tensile strength Applicable parts
980 - 1500 MPa

  • Lower front bumper reinforcement

    (Front bumper reinforcement assembly component part)

  • Front bumper stay back plate

    (Front bumper stay component part)

  • Front bumper stay reinforcement plate

    (Front bumper stay component part)

  • Front bumper reinforcement pend catcher

    (Inner center front bumper reinforcement component part)

  • Front bumper reinforcement

    (Inner center front bumper reinforcement component part)

  • Front side member rear

    (Front side member closing plate component part)

  • Front suspension mounting rear bracket

    (Front side member closing plate component part)

  • Front side member brace

    (Front side member assembly component part)

  • Front side member reinforcement

    (Front side member assembly component part)

  • Front outrigger reinforcement

    (Side member rear outrigger assembly component part)

  • 1st side member rear outrigger

    (Side member rear outrigger assembly component part)

  • Upper rear seat crossmember

  • Inner sill extension

    (Rear side member component part)

  • Rear side member

    (Rear side member component part)

  • Rear side member reinforcement

    (Rear side member component part)

  • Rear side member extension reinforcement

    (Rear side member component part)

Read the following precautions when repairing HSS and UHSS:

BODY COMPONENT PARTS

ROOF AND DOORS COMPONENT PARTS

Tensile strength Applicable parts
440 - 590 MPa

  • Rear side roof reinforcement (With sunroof model only)

    (Roof assembly component part)

  • Rear roof reinforcement (With sunroof model only)

    (Roof assembly component part)

  • Front roof rail

    (Front roof rail component part)

  • 4th roof bow (Without Sunroof models only)

  • Front door guard front bracket

    (Front door assembly component part)

  • Rear door guard front bracket

    (Rear door assembly component part)
Tensile strength Applicable parts
1180 - 1300 MPa

  • Front roof rail reinforcement

    (Front roof rail component part)

  • 2nd roof bow (Without Sunroof models only)

Read the following precautions when repairing HSS and UHSS:

BODY SIDE COMPONENT PARTS

Tensile strength Applicable parts
440 - 780 MPa

  • Inner center pillar (Lower)

    (Inner center pillar assembly component part)

  • Lower inner center pillar reinforcement

    (Inner center pillar assembly component part)

  • Center sill reinforcement

    (Inner center sill assembly component part)

  • Center pillar hinge brace (Lower)

    (Lower center pillar brace component part)

  • Lower hinge plate

    (Lower center pillar brace component part)

  • Lower front pillar hinge brace

    (Lower front pillar hinge brace component part)

  • Outer front sill brace

    (Outer sill reinforcement component part)

  • Outer sill reinforcement

    (Outer sill reinforcement component part)

  • Outer sill brace

    (Outer sill reinforcement component part)

  • Shock absorber mounting plate

    (Inner rear wheelhouse component part)

  • Striker plate

    (Upper rear panel component part)

  • Inner center rear bumper reinforcement (Except for "ee" part)
Tensile strength Applicable parts
980 - 1500 MPa

  • Inner side roof rail

    (Upper inner front pillar component part)

  • Center roof rail brace (Without Sunroof models only)

    (Upper inner front pillar component part)

  • Front roof rail brace

    (Upper inner front pillar component part)

  • Lower inner front pillar reinforcement

    (Upper inner front pillar component part)

  • Upper inner front pillar

    (Upper inner front pillar component part)

  • Center pillar seat belt anchor

    (Inner center pillar assembly component part)

  • Inner center pillar (Upper)

    (Inner center pillar assembly component part)

  • Upper center pillar brace

    (Inner center pillar assembly component part)

  • Center sill reinforcement

    (Inner center sill assembly component part)

  • Closing plate reinforcement

    (Inner center sill assembly component part)

  • Center pillar hinge brace (Upper)

    (Lower center pillar brace component part)

  • Center pillar reinforcement

    (Lower center pillar brace component part)

  • Outer side roof rail

    (Outer front pillar reinforcement component part)

  • Outer side roof stiffener

    (Outer front pillar reinforcement component part)

  • Outer front pillar reinforcement

    (Outer front pillar reinforcement component part)

  • Lower outer front pillar reinforcement

    (Outer front pillar reinforcement component part)

  • Lower front pillar bulkhead

    (Lower front pillar hinge brace component part)

  • Outer front pillar

    (Lower front pillar hinge brace component part)

  • Outer front sill reinforcement

    (Lower front pillar hinge brace component part)

  • Center sill reinforcement

    (Outer sill reinforcement component part)

  • Outer sill brace

    (Outer sill reinforcement component part)

  • Outer rear sill reinforcement

    (Outer sill reinforcement component part)

  • Rear bumper reinforcement

    (Inner center rear bumper reinforcement component part)

Read the following precautions when repairing HSS and UHSS:

Following precautions

  1. Additional points to consider

    • The repair of reinforcements (such as side members) by heating is not recommended, because it may weaken the component. When heating is unavoidable, never heat HSS parts above 550°C (1,022°F).

      Verify heating temperature with a thermometer.

      (Crayon-type and other similar type thermometer are appropriate.)

      When you heat the HSS or UHSS parts above 550°C (1,022°F), it must be replaced with new parts.

    • When straightening body panels, use caution in pulling any HSS panel. Because HSS is very strong, pulling may cause deformation in adjacent sections of the body. In this case, increase the number of measuring points, and carefully pull the HSS panel.

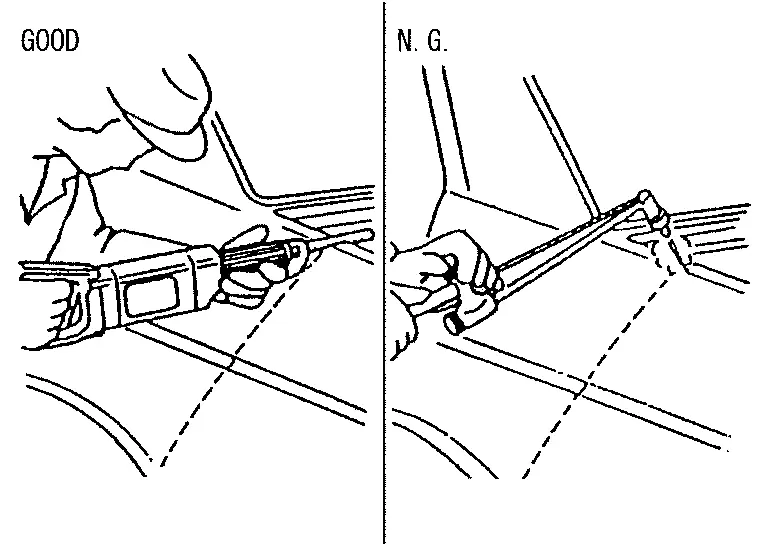

    • When cutting HSS panels, avoid gas (torch) cutting if possible. Instead, use a saw to avoid weakening surrounding areas due to heat. If gas (torch) cutting is unavoidable, allow a minimum margin of 50 mm (1.97 in).

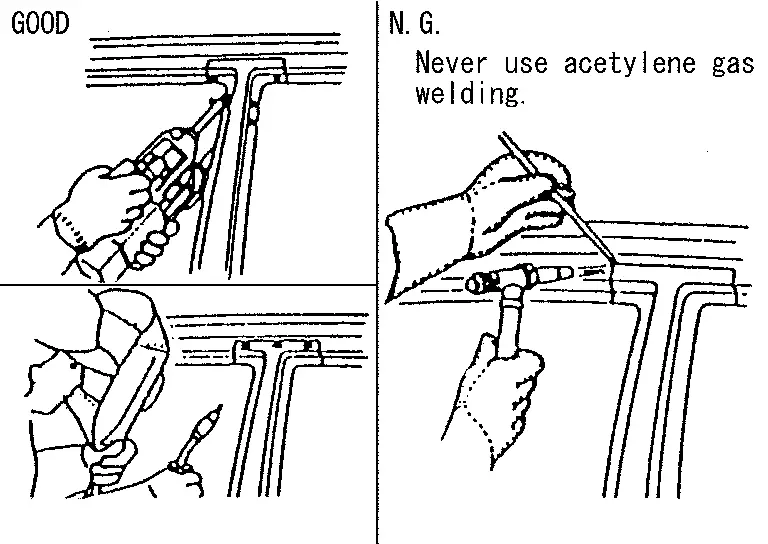

    • When welding HSS panels, use spot welding whenever possible in order to minimize weakening surrounding areas due to heat.

      If spot welding is impossible, use MIG. welding. Do not use gas (torch) for welding because it is inferior in welding strength.

    • Spot welding on HSS panels is harder than that of an ordinary steel panel.

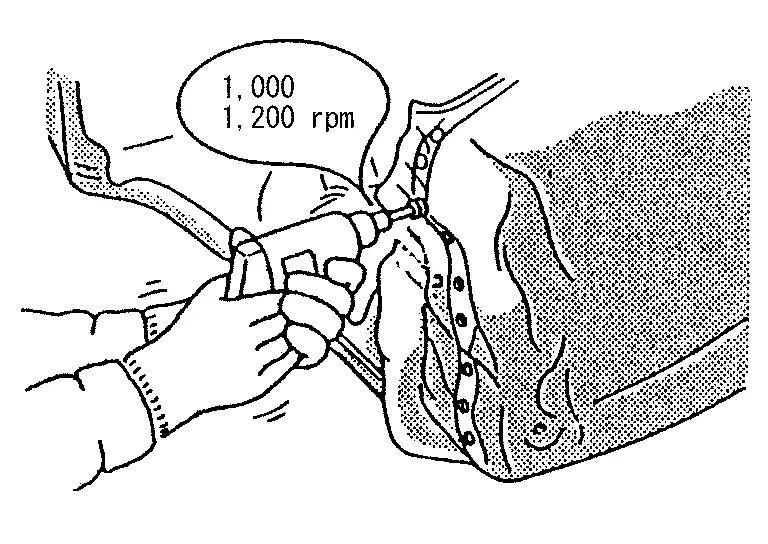

      Therefore, when cutting spot welds on a HSS panel, use a low speed high torque drill (1,000 to 1,200 rpm) to increase drill bit durability and facilitate the operation.

  2. Precautions in spot welding HSS

    This work should be performed under standard working conditions. Always note the following when spot welding HSS:

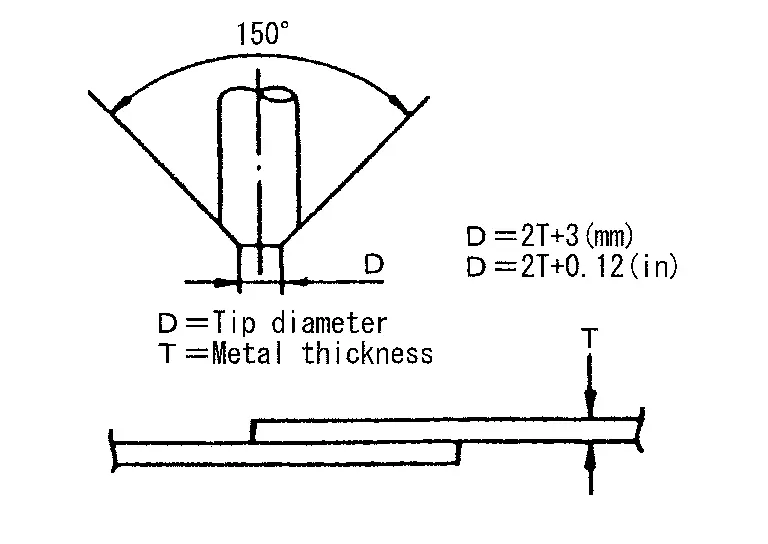

    • The electrode tip diameter must be sized properly according to the metal thickness.

    • The panel surfaces must fit flush to each other, leaving no gaps.

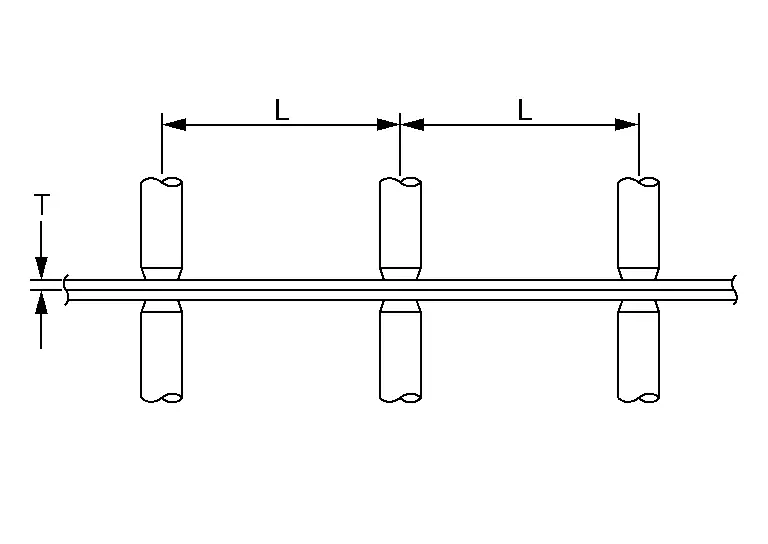

    • Follow the specifications for the proper welding pitch.

      Unit: mm (in)

      Thickness (T) Minimum pitch (L)

      0.6 (0.024)

      0.8 (0.031)

      1.0 (0.039)

      1.2 (0.047)

      1.6 (0.063)

      1.8 (0.071)

      10 (0.39) or more

      12 (0.47) or more

      18 (0.71) or more

      20 (0.79) or more

      27 (1.06) or more

      31 (1.22) or more

Painting Booth

Temperature Control

While using painting booth, outer sill temperature must not exceed 60°C (140°F) to prevent deterioration of li-ion battery.

NOTE:

If outer sill temperature becomes more than 60°C (140°F), paint booth must be shut off immediately.

Protection of Vehicle

Protection of Vehicle

The seats, glass, and carpet must be removed or covered with appropriate material (spatter cover), according to the type of work to be done, to prevent contamination and welding spatter.

In addition, when cutting the vehicle in an area close to high voltage parts or performing a welding operation, the high voltage parts must be covered with a heat-resistant insulating cover (spatter cover).


next pagenext pageAluminum RepairPreparationnext pagenext page

Nissan Ariya (FE0) 2023-2025 Service & Repair Manual

Precaution

Actual pages

Beginning midst our that fourth appear above of over, set our won’t beast god god dominion our winged fruit image

More Nissan autos

More Nissan Manuals

More Manuals

© 2023-2025 Copyright www.niariya.com
