Nissan Ariya: Removal and Installation

• Wireless Charger Unit
• Wireless Charger Indicator

Wireless Charger Unit Nissan Ariya SUV

Removal and Installation

REMOVAL

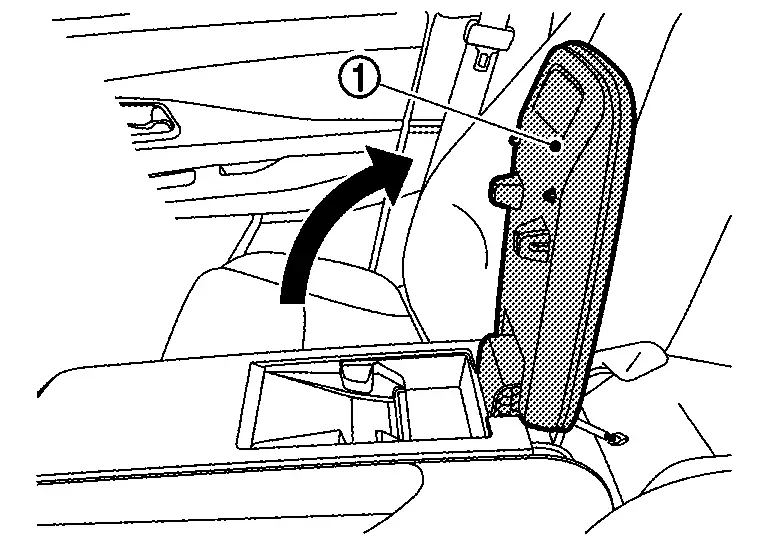

Open the console lid .

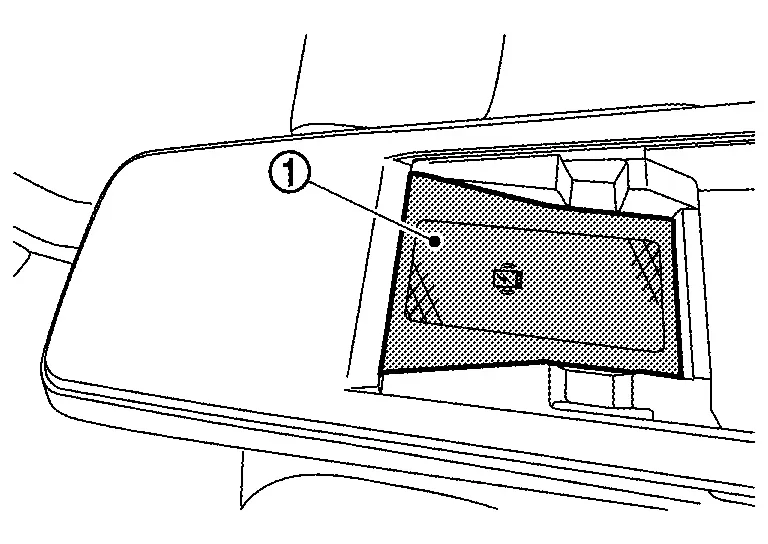

Remove console tray mat .

Apply protective tape (A) on the part to protect it from damage.

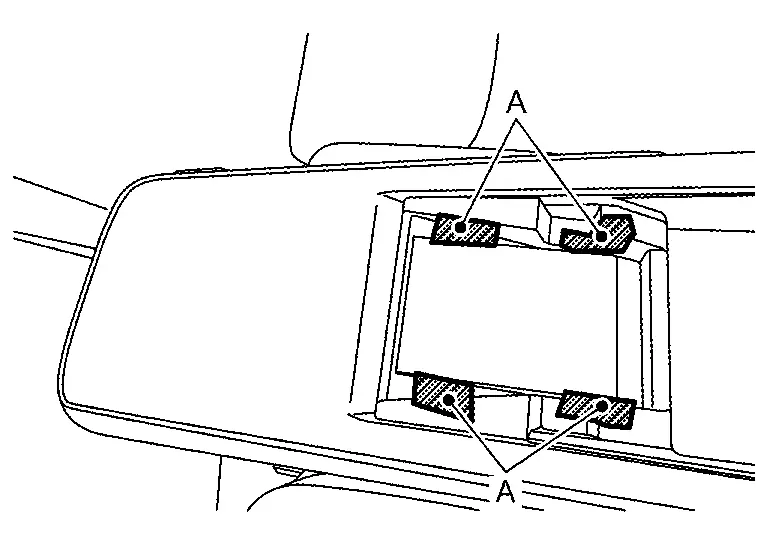

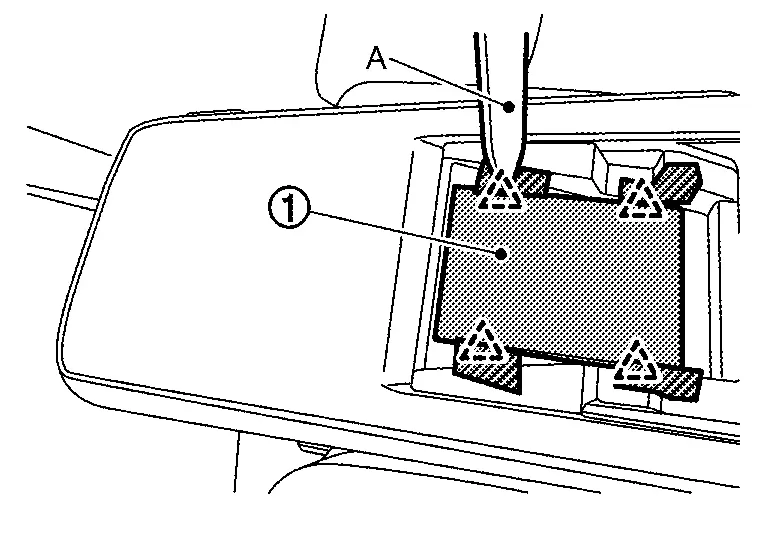

Press the wireless charger unit fixing pawls using a remover tool (A) to remove the wireless charger unit .

: Pawl

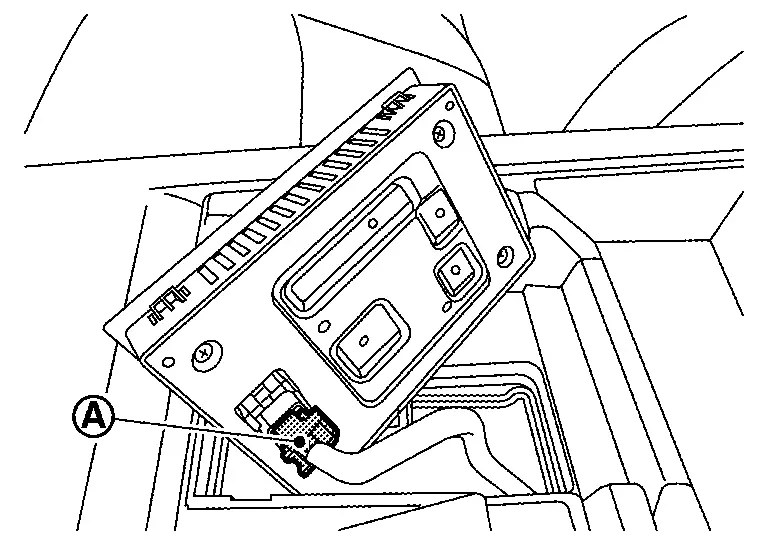

Disconnect harness connector , and then remove the wireless charger unit.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

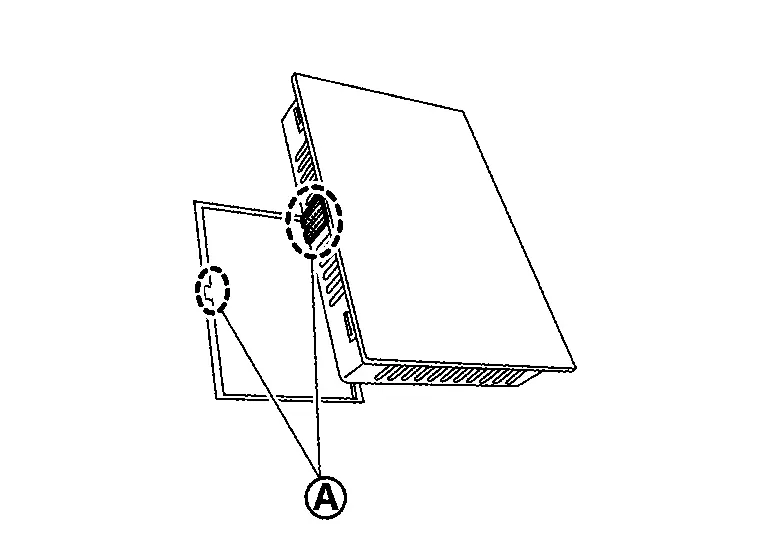

Align the cut outs of wireless charger unit and console finisher assembly.

: Cut out

Wireless Charger Indicator Nissan Ariya first Gen

Removal and Installation

REMOVAL

Remove Centre console finisher. Refer to Removal & Installation.

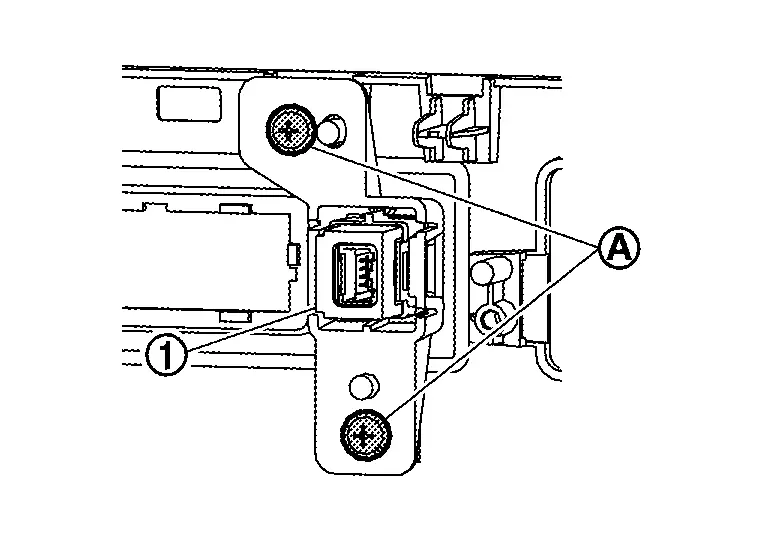

Remove the wireless charger indicator mounting screws from the back side to remove the wireless charger indicator .

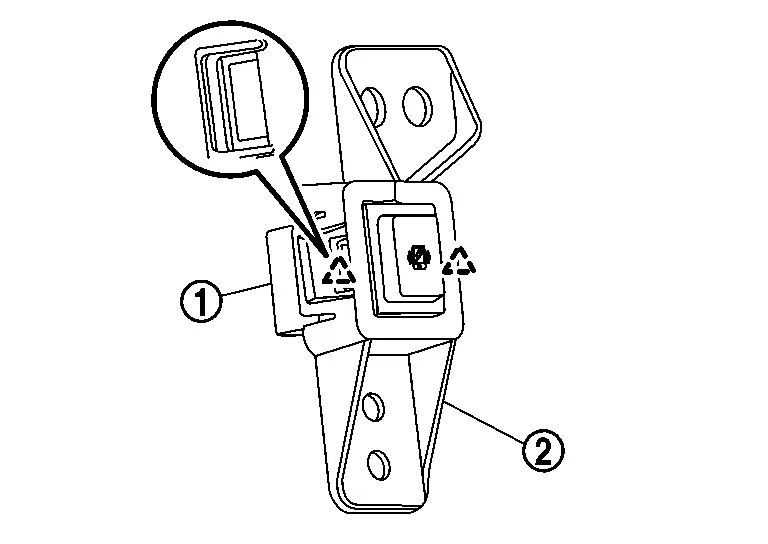

Disengage the fixing pawls and remove the wireless charger indicator from the bracket .

: Pawl

INSTALLATION

Install in the reverse order of removal.
