Nissan Ariya: Description
Component Parts. Tpms

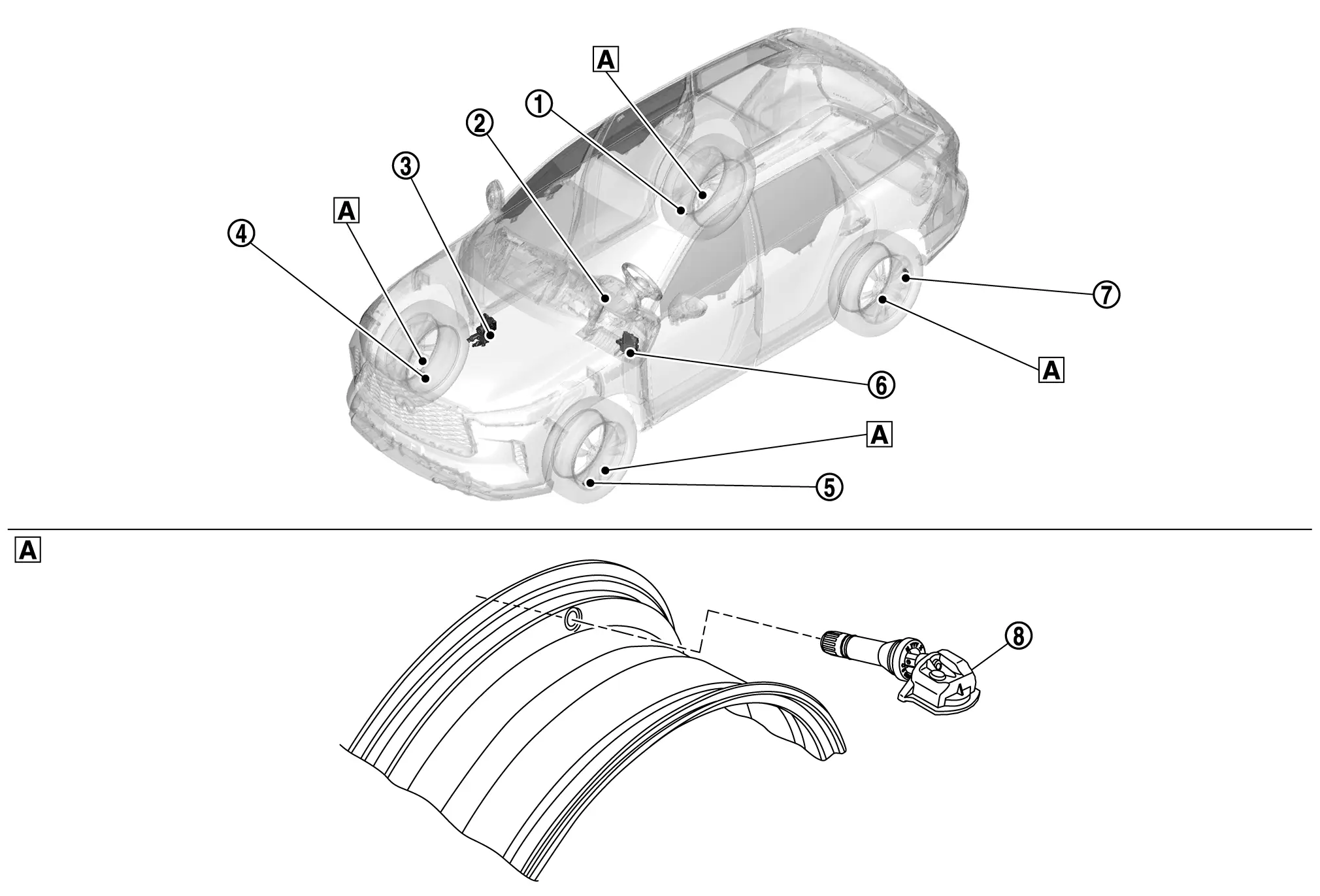

Component Parts Location
 |
Wheel | ||||
 |
Rear wheel sensor (RH) Refer toComponent Parts Location for detailed installation location. |
 |
Combination meter Refer toComponent Part Location for detailed installation location. |
 |
ABS actuator and electric unit (control unit) Refer to Component Parts Locationfor detailed installation location. |
 |
Front wheel sensor (RH) Refer to Component Parts Location for detailed installation location. |
 |
Front wheel sensor (LH) Refer to Component Parts Location for detailed installation location. |
 |
BCM Refer toComponent Parts Location for detailed installation location. |
 |
Rear wheel sensor (LH) Refer to Component Parts Location for detailed installation location. |
 |
Tire pressure sensor |

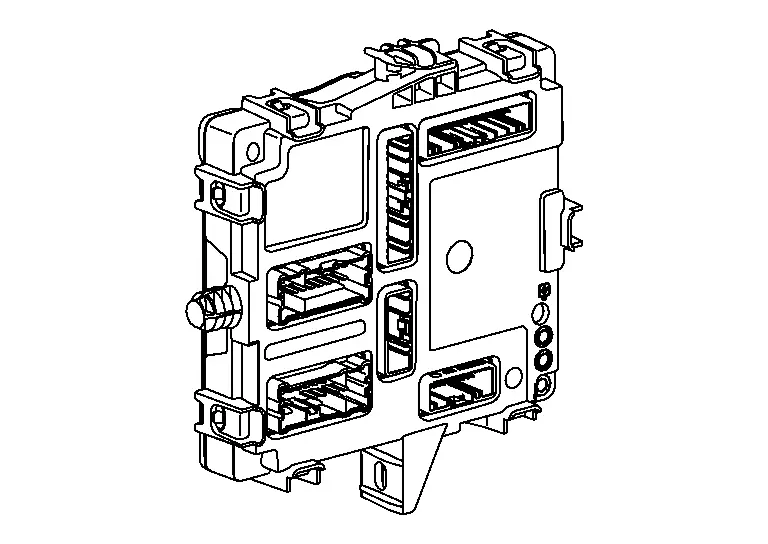

BCM
FUNCTIONS WITHIN THE SYSTEM
-
Tire pressure receiver is integrated in BCM.
-
BCM receives the signals of tire air pressure and tire temperature as an input from the tire pressure sensor in each wheel through a radio signal and controls tire pressure monitoring system.
INDIVIDUAL FUNCTIONS WITHIN THE SYSTEM
BCM uses CAN communication to Illuminate the low tire pressure warning light in the combination meter when tire pressure is lowered to less than the specified value or a system malfunction exists.
INDIVIDUAL OPERATION
Refer to System Description.
PARTS LOCATION
Refer to Component Part Location .

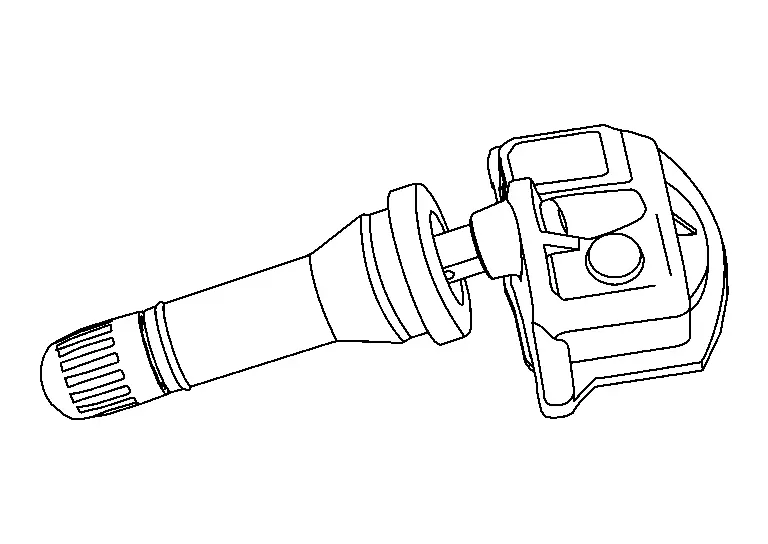

Tire Pressure Sensor
FUNCTIONS WITHIN THE SYSTEM
A tire pressure sensor detects tire air pressure and tire temperature.
INDIVIDUAL FUNCTIONS WITHIN THE SYSTEM
A tire pressure sensor transmits the detected air pressure and tire temperature in the form of a radio signal to the low tire pressure warning control unit.
INDIVIDUAL OPERATION
Refer to System Description.
PARTS LOCATION
A tire pressure sensor integrated with a valve is install in each wheel. Refer to Component Part Location .
Diagnosis System (bcm). Air Pressure Monitor
CONSULT Function (BCM - AIR PRESSURE MONITOR)
DATA MONITOR
NOTE:
The following table includes information (items) inapplicable to this Nissan Ariya vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.
| Monitor Item (Unit) | Description |
|---|---|
|
SET AIR PRESSURE 1 FL (mBar) |
Displays the standard air pressure of front left tire. |
|
SET AIR PRESSURE 1 FR (mBar) |
Displays the standard air pressure of front right tire. |
|
SET AIR PRESSURE 1 RR (mBar) |
Displays the standard air pressure of rear right tire. |
|
SET AIR PRESSURE 1 RL (mBar) |
Displays the standard air pressure of rear left tire. |
|
TPMS SET SWITCH (On/Off) |
Displays the set active status of set function. |
|
Tire status-FL (Normal/MALF 1/MALF 2/MALF 3/MALF 4) |
Displays the front left tire status. |
|
Tire status-FR (Normal/MALF 1/MALF 2/MALF 3/MALF 4) |
Displays the front right tire status. |
|
Tire status-RR (Normal/MALF 1/MALF 2/MALF 3/MALF 4) |
Displays the rear right tire status. |
|
Tire status-RL (Normal/MALF 1/MALF 2/MALF 3/MALF 4) |
Displays the rear left tire status. |
|
Nissan Ariya Vehicle speed (km/h) |
Displays the vehicle speed. |
|
AIR PRESS FL (mBar) |
Displays the air pressure of front left tire. |
|
AIR PRESS FR (mBar) |
Displays the air pressure of front right tire. |
|
AIR PRESS RR (mBar) |
Displays the air pressure of rear right tire. |
|
AIR PRESS RL (mBar) |
Displays the air pressure of rear left tire. |
|
TIRE TEMPERATURE FL (°C) |
Displays the temperature of front left tire. |
|
TIRE TEMPERATURE FR (°C) |
Displays the temperature of front right tire. |
|
TIRE TEMPERATURE RR (°C) |
Displays the temperature of rear right tire. |
|
TIRE TEMPERATURE RL (°C) |
Displays the temperature of rear left tire. |
|
SET AIR PRESSURE 2 FL (mBar) |
Displays the standard air pressure of front left tire. |
|
SET AIR PRESSURE 2 FR (mBar) |
Displays the standard air pressure of front right tire. |
|
SET AIR PRESSURE 2 RR (mBar) |
Displays the standard air pressure of rear right tire. |
|
SET AIR PRESSURE 2 RL (mBar) |
Displays the standard air pressure of rear left tire. |
|
WARNING AIR PRESSURE FL (mBar) |
Displays the warning air pressure of front left tire. |
|
WARNING AIR PRESSURE FR (mBar) |
Displays the warning air pressure of front right tire. |
|
WARNING AIR PRESSURE RR (mBar) |
Displays the warning air pressure of rear right tire. |
|
WARNING AIR PRESSURE RL (mBar) |
Displays the warning air pressure of rear left tire. |
WORK SUPPORT
| Support Item | Description |
|---|---|
| ID REGIST | Refer to Description. |
