Nissan Ariya: Dtc/circuit Diagnosis

• B2f98-04 Sunshade Motor
• B2f98-95 Sunshade Motor
• Power Supply and Ground Circuit
• Sunroof Switch Assembly
• Communication Signal Circuit
• Lin Communication Circuit

B2f98-04 Sunshade Motor

DTC Description

DTC DETECTION LOGIC

DTC No.	CONSULT screen terms	DTC detection condition
B2F98-04	Sunshade motor	Diagnosis condition	When power switch ON or timer operates.
		Signal (terminal)	—
		Threshold	CPU in sunshade motor assembly detect internal malfunction
		Diagnosis delay time	1 second or less

POSSIBLE CAUSE

Sunshade motor assembly

FAIL SAFE

Sunshade auto operation is forbidden

DTC CONFIRMATION PROCEDURE

PERFORM DTC CONFIRMATION PROCEDURE

1. Power switch ON.

2. Operate sunshade switch to any position.

3. Select “Self Diagnostic Result” mode of “BCM” using CONSULT.

4. Check DTC.

Is DTC detected?

YES>>

Refer to Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

Diagnosis Procedure

REPLACE SUNSHADE MOTOR ASSEMBLY

Replace sunshade motor assembly. Refer to Removal & Installation.

>>

INSPECTION END

B2f98-95 Sunshade Motor

DTC Description

NOTE:

When the power switch is turned ON, the DTC may be detected. If it has been detected due to previous error/operation, erase the history once and check if the DTC is detected again.

DTC DETECTION LOGIC

DTC No.	CONSULT screen terms	DTC detection condition
B2F98-95	Sunshade motor	Diagnosis condition	When power switch ON or timer operates.
		Signal (terminal)	LIN communication signal
		Threshold	BCM cannot LIN communication with sunshade motor assembly.
		Diagnosis delay time	2 second or less

POSSIBLE CAUSE

• LIN communication line

• Sunshade motor assembly

• BCM

FAIL SAFE

—

DTC CONFIRMATION PROCEDURE

CHECK DTC PRIORITY

When DTC "B2F98-95" is displayed together with DTC "B2F98-04", perform the diagnosis of DTC "B2F98-04" first.

Is applicable DTC detected?

YES>>

Refer to DTC Description.

NO>>

GO TO 2.

CHECK SELF-DIAG RESULT

With CONSULT

1. Power switch ON.

2. Perform “Self Diagnostic Result” mode of “BCM” using CONSULT.

Is DTC detected?

YES-1>>

CRNT: Refer to Diagnosis Procedure.

YES-2>>

PAST: GO TO 3.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

CHECK OPERATION

Check that sunshade operate properly.

Is the inspection result normal?

YES>>

INSPECTION END

NO>>

Refer to Diagnosis Procedure.

Diagnosis Procedure

CHECK DTC PRIORITY

When DTC "B2F98-95" is displayed together with DTC "B2F98-04", perform the diagnosis of DTC "B2F98-04" first.

Is applicable DTC detected?

YES>>

Refer to DTC Description.

NO>>

GO TO 2.

CHECK SUNSHADE MOTOR ASSEMBLY POWER SUPPLY AND GROUND CIRCUIT

Check sunshade motor assembly power supply and ground circuit. Refer to Diagnosis Procedure.

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

Repair or replace the malfunctioning parts.

CHECK LIN COMMUNICATION CIRCUIT

Check LIN communication circuit. Refer to Diagnosis Procedure.

Is the inspection result normal?

YES>>

Replace sunshade motor assembly. Refer to Removal & Installation.

NO>>

Repair or replace the malfunctioning parts.

Communication Signal Circuit

Component Function Check

CHECK SUNSHADE FUNCTION

Operating sunshade switch and check sunshade OPEN/CLOSE operations.

Is the inspection result normal?

YES>>

INSPECTION END

NO>>

Refer to Diagnosis Procedure.

Diagnosis Procedure

CHECK COMMUNICATION SIGNAL

1. Power switch ON.

2. Check signal between sunshade motor assembly harness connector and ground with oscilloscope.

   (+)		(–)	Signal
   Sunshade motor assembly
   Connector	Terminal
   R14	7	Ground

Is the inspection result normal?

YES>>

Replace sunshade motor assembly. Refer to Removal & Installation.

NO>>

GO TO 2.

CHECK COMMUNICATION SIGNAL CIRCUIT

1. Power switch OFF.

2. Disconnect sunroof motor assembly connector and sunshade motor assembly connector.

3. Check continuity between sunroof motor assembly harness connector and sunshade motor assembly harness connector.

   Sunroof motor assembly		Sunshade motor assembly		Continuity
   Connector	Terminal	Connector	Terminal
   R12	7	R14	7	Existed

4. Check continuity between sunshade motor assembly harness connector and ground.

   Sunshade motor assembly		—	Continuity
   Connector	Terminal
   R14	7	Ground	Not existed

Is the inspection result normal?

YES>>

Replace sunroof motor assembly. Refer to Removal & Installation.

NO>>

Repair or replace harness.

Lin Communication Circuit

Diagnosis Procedure

CHECK BCM OUTPUT SIGNAL

1. Power switch ON.

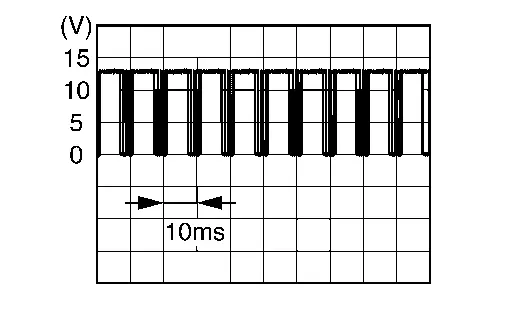

2. Check signal between BCM harness connector and ground using an oscilloscope.

   (+)		(−)	Signal
   BCM
   Connector	Terminal
   M8	24	Ground

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

GO TO 2.

CHECK LIN COMMUNICATION CIRCUIT

1. Power switch OFF, and then wait for 1 minutes with driver door open.

   NOTE:

   • Even after power switch OFF, power is supplied to accessories for a certain amount of time by the AUTO ACC function.

   • When Nissan Ariya vehicle is operated while on standby, power may be supplied to accessories.

2. Disconnect following connectors.

   • BCM

   • Power window main switch

   • Front power window motor (driver side)

   • Front power window motor (passenger side)

   • Rear power window motor RH

   • Rear power window motor LH

   • Sunroof motor assembly

   • Sunshade motor assembly

   • Passenger door mirror control module

   Connecting parts other than power window.

3. Check continuity between BCM harness connector and ground.

   BCM		—		Continuity
   Connector	Terminal
   M8	24	Ground		Not existed

Is the inspection result normal?

YES>>

Replace BCM. Refer to Removal and Installation.

NO>>

Repair or replace harness.

CHECK LIN COMMUNICATION SIGNAL

1. Power switch OFF, and then wait for 1 minutes with driver door open.

   NOTE:

   • Even after power switch OFF, power is supplied to accessories for a certain amount of time by the AUTO ACC function.

   • When Nissan Ariya vehicle is operated while on standby, power may be supplied to accessories.

2. Disconnect following connectors.

   • Power window main switch

   • Front power window motor (driver side)

   • Front power window motor (passenger side)

   • Rear power window motor RH

   • Rear power window motor LH

   • Sunroof motor assembly

   • Sunshade motor assembly

   • Passenger door mirror control module

3. Power switch ON.

4. Check signal between power window main switch harness connector, all power window motor harness connector and ground using an oscilloscope.

   (+)			(−)	Signal
   Connector		Terminal
   Sunroof motor assembly	R12	9	Ground
   Sunshade motor assembly	R14

Is the inspection result normal?

YES>>

INSPECTION END

NO-1>>

Sunroof motor assembly: GO TO 4.

NO-2>>

Sunshade motor assembly: GO TO 5.

CHECK LIN COMMUNICATION CIRCUIT (SUNROOF MOTOR ASSEMBLY)

1. Power switch OFF.

2. Disconnect BCM connector.

3. Check continuity between BCM harness connector and sunroof motor assembly harness connector.

   BCM		Sunroof motor assembly		Continuity
   Connector	Terminal	Connector	Terminal
   M8	24	R12	9	Existed

Is the inspection result normal?

YES>>

INSPECTION END

NO>>

Repair or replace harness.

CHECK LIN COMMUNICATION CIRCUIT (SUNSHADE MOTOR ASSEMBLY)

1. Power switch OFF.

2. Disconnect BCM connector.

3. Check continuity between BCM harness connector and sunshade motor assembly harness connector.

   BCM		Sunshade motor assembly		Continuity
   Connector	Terminal	Connector	Terminal
   M8	24	R14	9	Existed

Is the inspection result normal?

YES>>

INSPECTION END

NO>>

Repair or replace harness.
