Nissan Ariya: Evse

Nissan Ariya (FE0) 2023-2025 Service & Repair Manual / Electric Power Train / Vehicle Charging System :: Description / Component Parts / Evse

120v/240v Evse
120v Evse

120v/240v Evse

Component Description

OUTLINE

NOTE:

The type of EVSE differs depending on vehicle production date and new parts purchasing date.

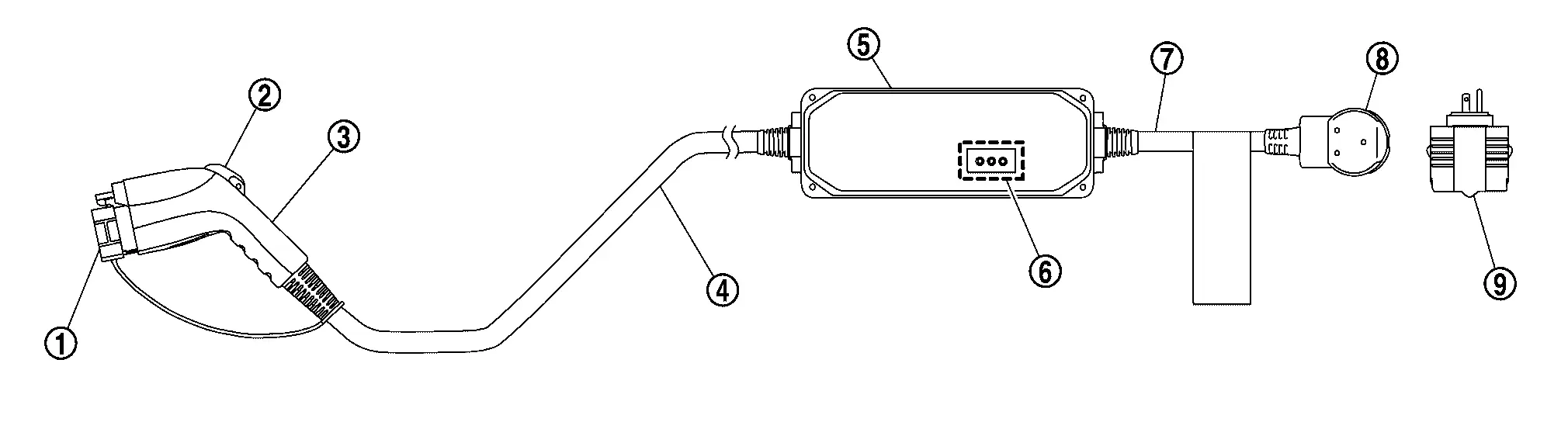

120/240V EVSE (L1/L2):TYPE A

Protective cap

Release switch

Normal charge connector

Cable

Control box

LED lamps

READY (Green)
POWER (Orange)
FAULT (Red)

Cord

Plug

Genuine NISSAN Adapter (For 120 V outlet only)

The EVSE (Electric Vehicle Supply Equipment) is manufactured based on the specifications prescribed in SAE-J1772, and is for charging by connecting a commercial power source to the Nissan Ariya vehicle. The EVSE consists of adapter, plug, cable, control box, and a normal charge connector and supplies power to the Nissan Ariya vehicle using commercial power. By conducting communication with the VCM, the EVSE performs safe and suitable charging for the Nissan Ariya vehicle.

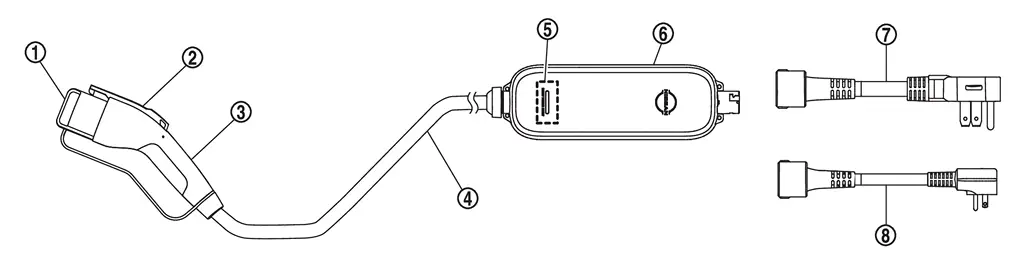

120/240V EVSE (L1/L2):TYPE B

Protective cap

Release switch

Normal charge connector

Cable

LED lamps

READY (Green)
POWER (Orange)
FAULT (Red)

Control box

Exchangeable plug

(120V/240V outlet)

Exchangeable plug

(120V outlet)

The EVSE (Electric Vehicle Supply Equipment) is manufactured based on the specifications prescribed in SAE-J1772, and is for charging by connecting a commercial power source to the Nissan Ariya vehicle. The EVSE consists of exchangeable plug, cable, control box, and a normal charge connector and supplies power to the Nissan Ariya vehicle using commercial power. By conducting communication with the VCM, the EVSE performs safe and suitable charging for the Nissan Ariya vehicle.

NORMAL CHARGE CONNECTOR

The normal charge connector is equipped with a release switch to maintain the connection between the normal charge port and the charge connector.

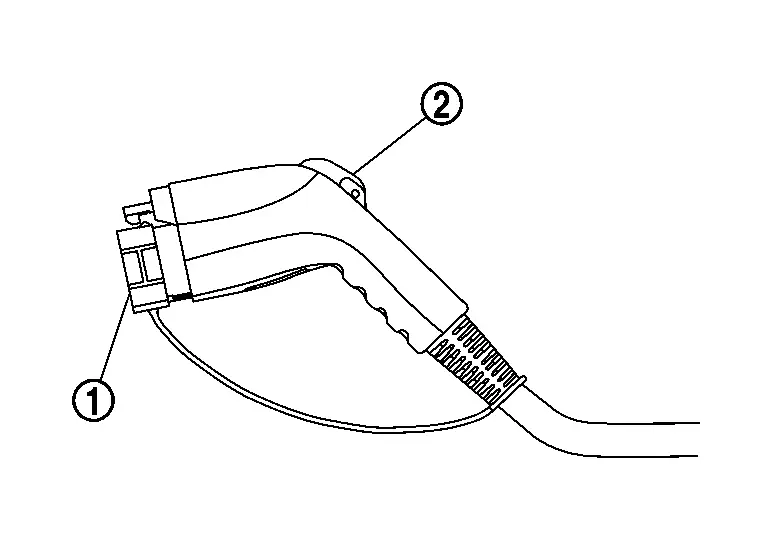

TYPE A

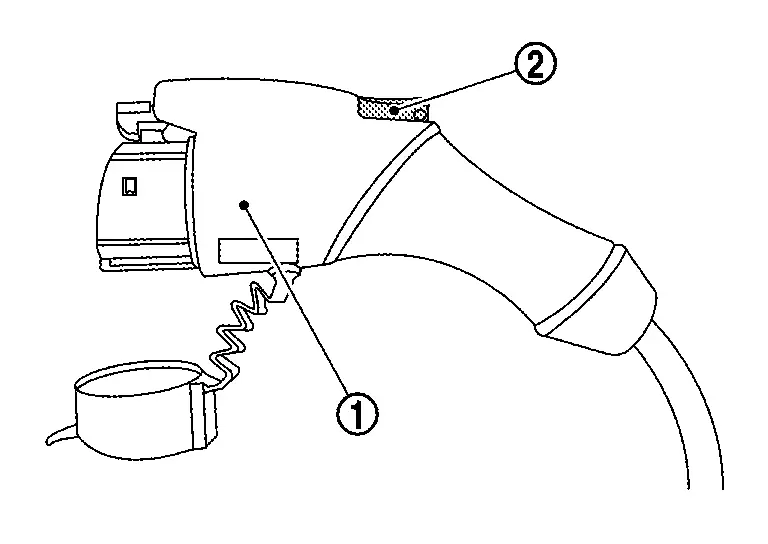

TYPE B

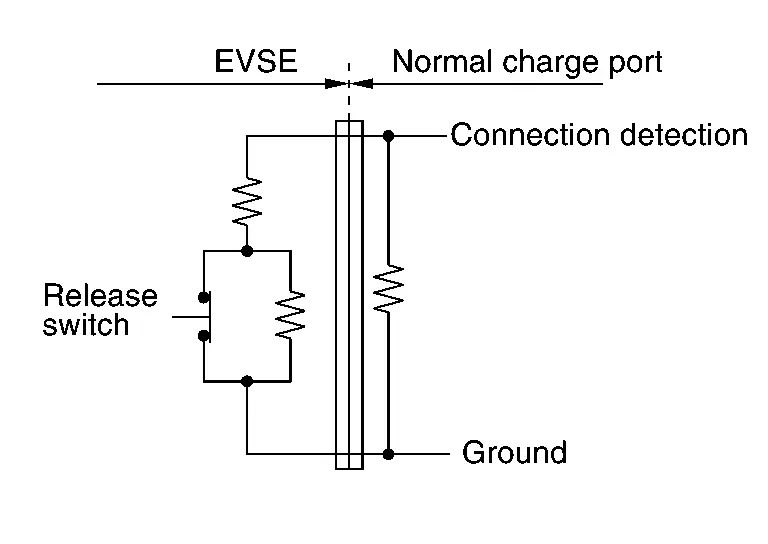

The charging connector is equipped with a release switch to maintain the connection between the normal charging port and the charging connector. In addition, a circuit for detecting the hold status is incorporated into the release switch, which stops the charging temporarily if the release switch is pressed during charging.

NOTE:

When the release switch is pressed, the contacts turn OFF.

The release switch cannot be pressed while the charge connector is locked.

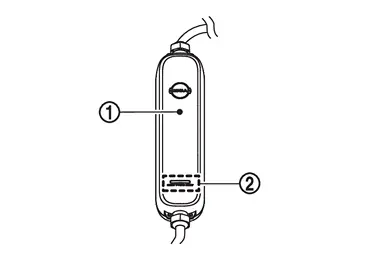

CONTROL BOX

The control box is equipped with an indicator that can be used to check the charging status and malfunction detection status. The indicator operates in the following cases when a commercial power supply is connected to the EVSE.

TYPE A

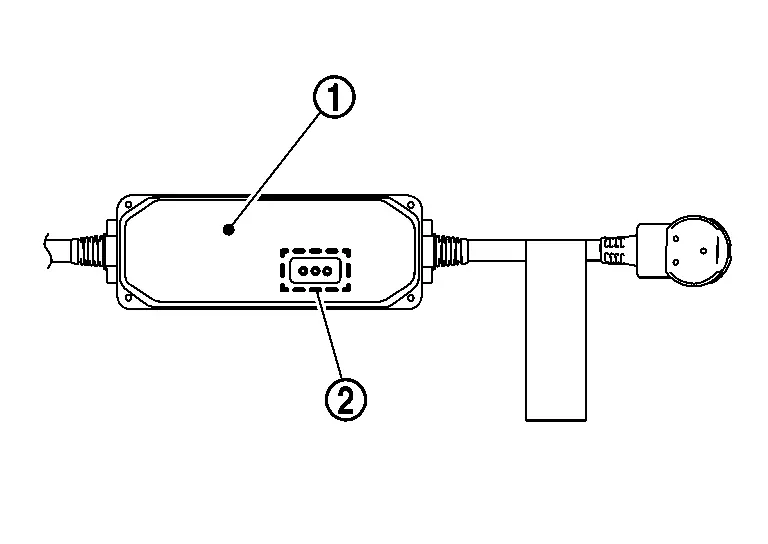

TYPE B

<List of Operations:TYPE A>
Condition	Illumination status
Condition	READY	POWER	FAULT
When AC power source is connected	ON (Approx.0.5 s)	ON (Approx.0.5 s)	ON (Approx.0.5 s)
When there is AC power supply input and the EVSE is able to communicate with the Nissan Ariya vehicle charger (when not charging)	ON	OFF	OFF
Charging	ON	ON	OFF
When there is no AC power supply input When the EVSE is not operating	OFF	OFF	OFF
When ground is not connected	Blink	OFF	OFF
When the EVSE detects a malfunction of the temperature detection circuit in the plug. (Charge current reduced)	Blink	Blink	ON
When the EVSE detects a malfunction of the temperature detection circuit in the plug. (Charge stopped)	Blink	OFF	ON
When the plug is high temperature. (Charge current reduced)	Blink	Blink	Blink
When the plug is high temperature. (Charge stopped)	Blink	OFF	Blink
When the EVSE detects a malfunction in itself or is connected to an incorrectly wired and / or incorrectly installed AC power supply	ON	Blink	ON
	ON	OFF	ON
When the EVSE detects electric leakage or error in communication signal	ON	OFF	Blink

<List of Operations:TYPE B>
Condition	Illumination status
Condition	READY	POWER	FAULT
When AC power source is connected	ON (Approx.0.5 s)	ON (Approx.0.5 s)	ON (Approx.0.5 s)
When there is AC power supply input and the EVSE is able to communicate with the Nissan Ariya vehicle charger (when not charging)	ON	OFF	OFF
Charging	ON	ON	OFF
When there is no AC power supply input When the EVSE is not operating	OFF	OFF	OFF
When ground is not connected	Blink	OFF	OFF
When the EVSE detects a malfunction of the temperature detection circuit. (Charge current reduced)	Blink	Blink	ON
When the EVSE detects a malfunction of the temperature detection circuit. (Charge stopped)	Blink	OFF	ON
When the EVSE is high temperature. (Charge current reduced)	Blink	Blink	Blink
When the EVSE is high temperature. (Charge stopped)	Blink	OFF	Blink
When the EVSE detects a malfunction in itself or is connected to an incorrectly wired and / or incorrectly installed AC power supply	ON	Blink	ON
	ON	OFF	ON
When the EVSE detects electric leakage or error in communication signal	ON	OFF	Blink

PLUGS AND RECEPTACLES

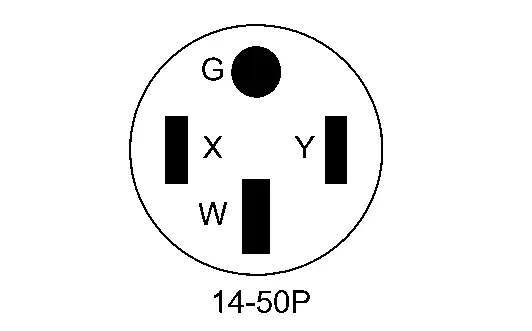

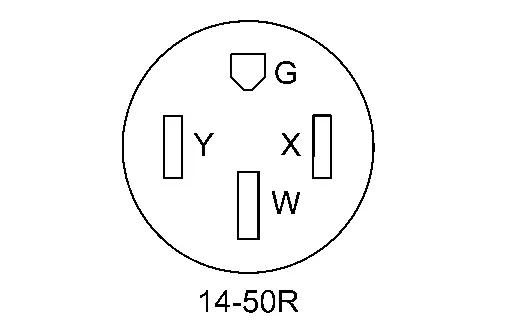

For 120/240V EVSE (L1/L2), 240V outlet plug type is NEMA 14-50.

NEMA CONFIGTATIONS FOR NON-LOCKNG PLUGS AND RECEPTACLES
Description	NEMA No.	Amperes	Receptacle	Plug

3-POLE 4-WIRE GROUNDING	14	50 A

CAUTION:

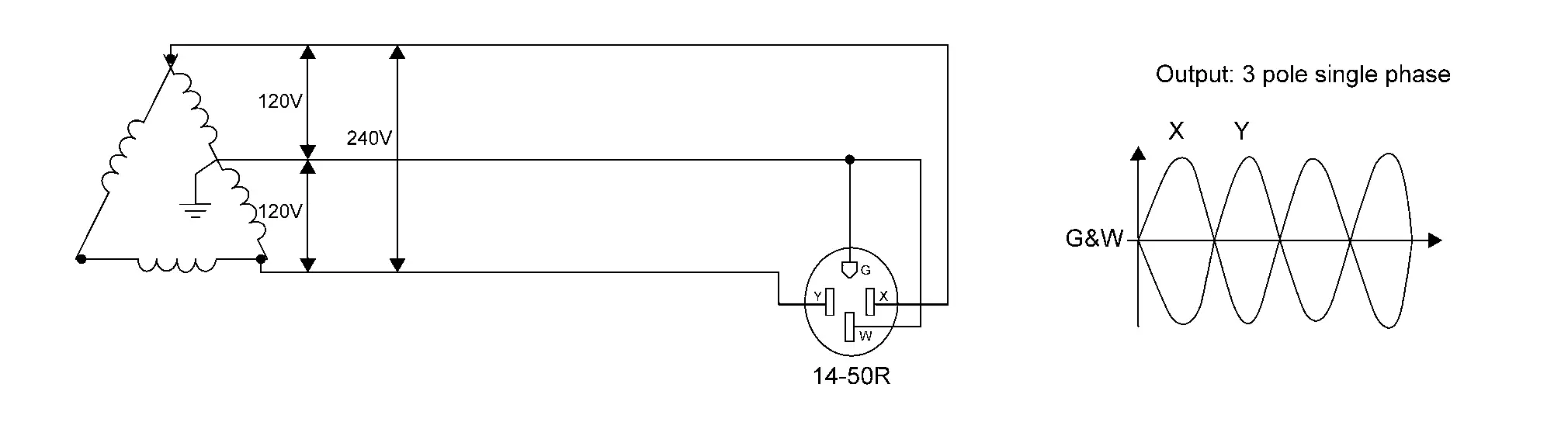

240 V outlet must be connected to a single phase power supply obtained from delta connection. If connected to other type power supply, EVSE does not work normally.

Delta connection

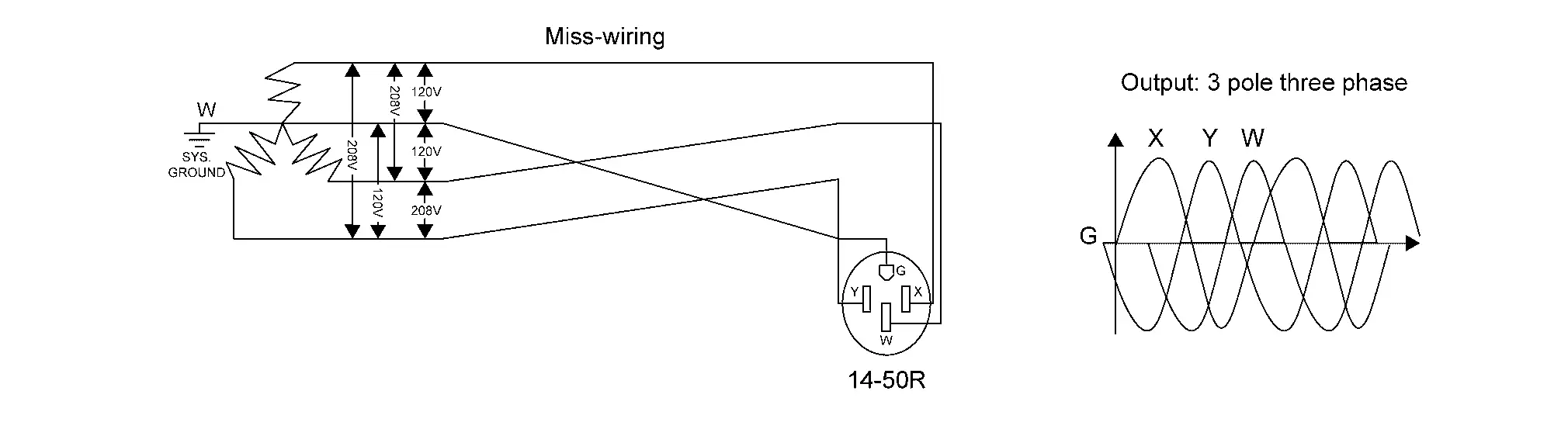

Never use 240 V outlet that is connected to star connection.

Star connection

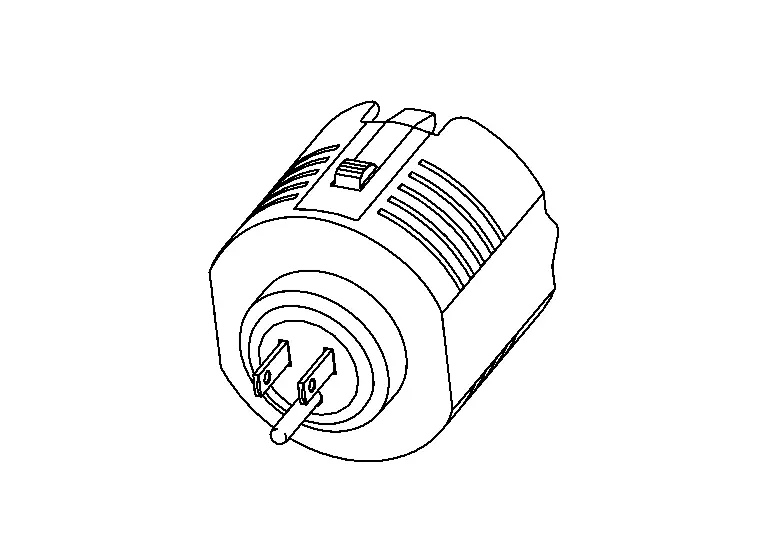

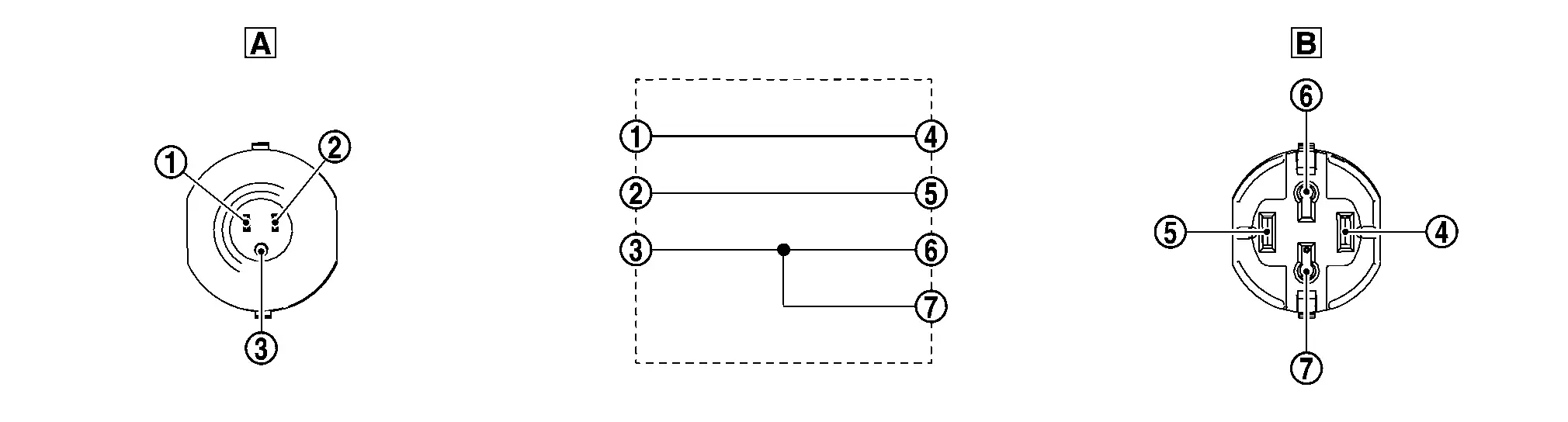

GENUINE NISSAN ADAPTER (TYPE A)

The genuine NISSAN adapter is used when 120/240V EVSE (L1/L2) is used with 120V outlet.

Circuit

Power outlet side

(Male terminal)

Plug side

(Female terminal)

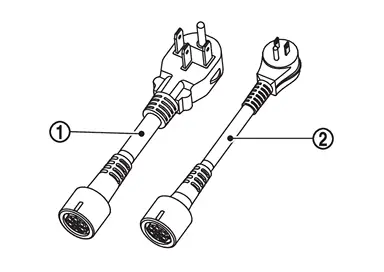

EXCHANGEABLE PLUG (TYPE B)

Use the appropriate exchangeable plug for the output of the outlet to be charged.

There are two types of exchangeable plugs: one for 240 V (NEMA 14-50) and the other for 120 V (NEMA 5-15).

120v Evse

Component Description

NOTE:

The type of EVSE differs depending on vehicle production date and new parts purchasing date.

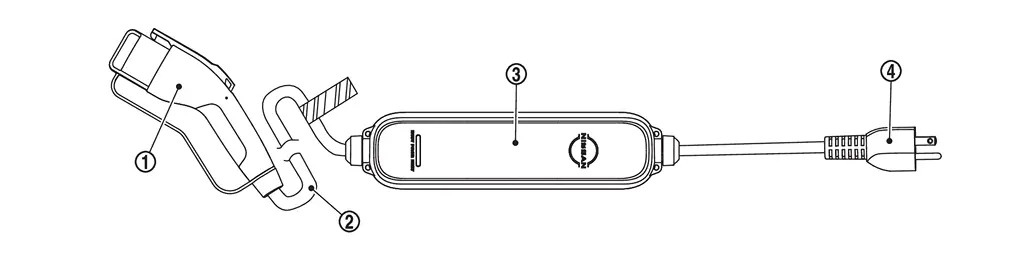

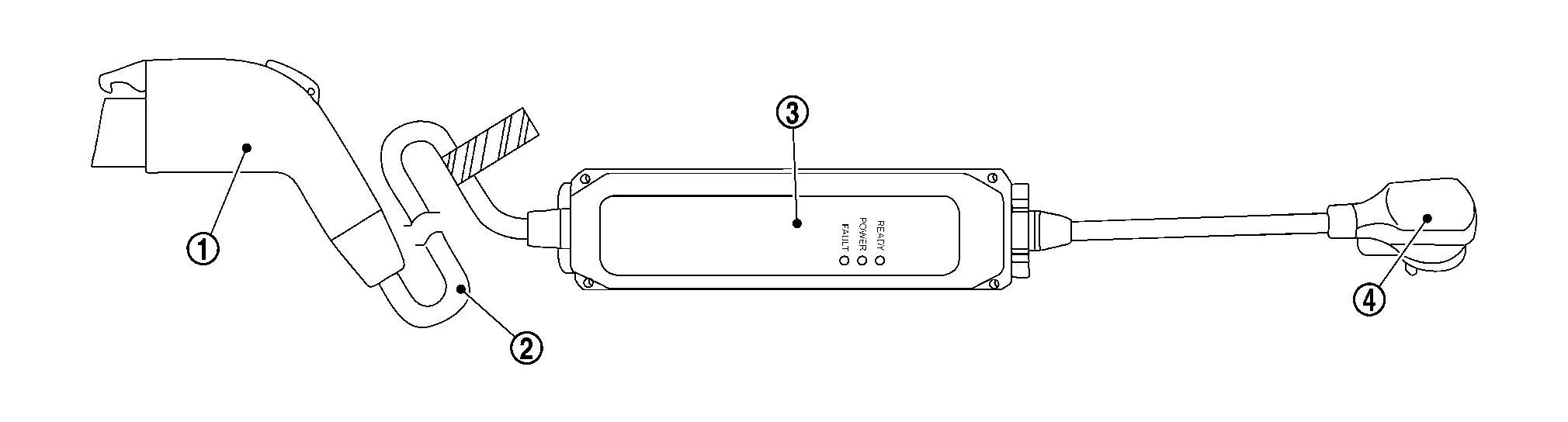

120V EVSE (L1):TYPE A

	Normal charge connector		Cable		Control box
	Plug

120V EVSE (L1):TYPE B

	Normal charge connector		Cable		Control box
	Plug

The EVSE (Electric Vehicle Supply Equipment) is manufactured based on the specifications prescribed in SAE-J1772, and is for charging by connecting a commercial power source to the Nissan Ariya vehicle. The EVSE consists of a plug, cable, control box, and a normal charge connector and supplies power to the Nissan Ariya vehicle using commercial power. By conducting communication with the VCM, the EVSE performs safe and suitable charging for the Nissan Ariya vehicle.

Normal Charge Connector

The normal charge connector is equipped with a release switch to maintain the connection between the normal charge port and the charge connector.

TYPE A

TYPE B

NOTE:

When the release switch is pressed, the contacts turn OFF.

The release switch cannot be pressed while the charge connector is locked.

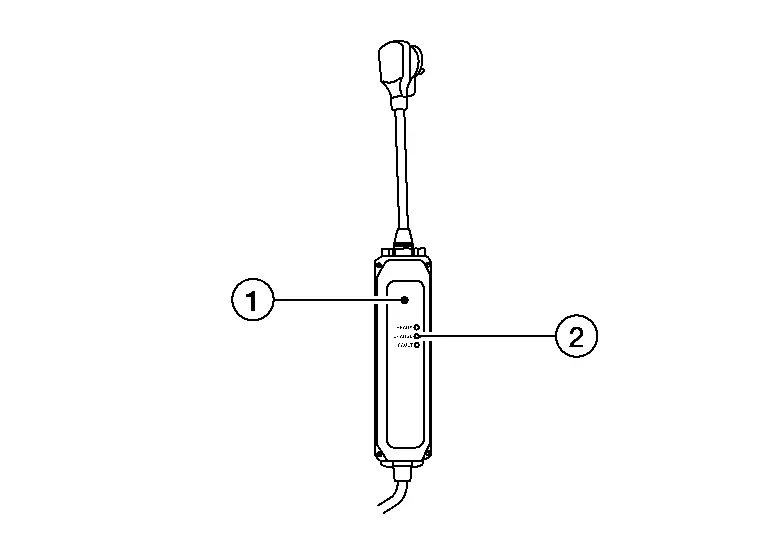

Control Box

TYPE A

TYPE B

List of Operations:TYPE A
READY	POWER	FAULT	Explanation
ON (Approx.0.5 s)	ON (Approx.0.5 s)	ON (Approx.0.5 s)	All indicator lamps will illuminate for a 0.5 second check when the EVSE is first connected to the outlet socket.
ON	OFF	OFF	The EVSE is connected to the outlet socket. If the Normal Charge Connector is connected to the Nissan Ariya vehicle of Normal Charge Port, the charging is completed or the charge timer is set. Refer to System Description.
ON	ON	OFF	The EVSE is charging the Nissan Ariya vehicle.
OFF	OFF	OFF	No power is detected by the EVSE from the outlet socket. Check the outlet supply breaker. If the outlet supply is normal and all the indicator lamps do not illuminate for 0.5 second, perform EVSE inspection. Refer to Symptom Table(120V/240V EVSE) or Symptom Table(120V EVSE).
Blink	OFF	OFF	The EVSE could not detect sufficient Outlet Socket Earth grounding for reliable EV charging.
Blink	Blink	ON	The temperature detection circuit in the plug of the EVSE is malfunctioning. (Charge current is reduced.)
Blink	OFF	ON
Blink	Blink	Blink	The EVSE detected excessive heat in the plug. (Charge current is reduced.)
Blink	OFF	Blink
ON	Blink	ON	The EVSE internal circuits malfunction.
ON	OFF	ON	The EVSE internal circuits malfunction.
ON	OFF	Blink	The EVSE detected leakage current or PWM signal error. Stop the EVSE immediately.

List of Operations:TYPE B
READY	POWER	FAULT	Explanation
ON (Approx.0.5 s)	ON (Approx.0.5 s)	ON (Approx.0.5 s)	All indicator lamps will illuminate for a 0.5 second check when the EVSE is first connected to the outlet socket.
ON	OFF	OFF	The EVSE is connected to the outlet socket. If the Normal Charge Connector is connected to the Nissan Ariya vehicle of Normal Charge Port, the charging is completed or the charge timer is set. Refer to System Description.
ON	ON	OFF	The EVSE is charging the Nissan Ariya vehicle.
OFF	OFF	OFF	No power is detected by the EVSE from the outlet socket. Check the outlet supply breaker. If the outlet supply is normal and all the indicator lamps do not illuminate for 0.5 second, perform EVSE inspection. Refer to Symptom Table(120V/240V EVSE) or Symptom Table(120V EVSE).
Blink	OFF	OFF	The EVSE could not detect sufficient Outlet Socket Earth grounding for reliable EV charging.
Blink	Blink	ON	The temperature detection circuit in the EVSE is malfunctioning. (Charge current is reduced.)
Blink	OFF	ON
Blink	Blink	Blink	The EVSE detected excessive heat in the EVSE. (Charge current is reduced.)
Blink	OFF	Blink
ON	Blink	ON	The EVSE internal circuits malfunction.
ON	OFF	ON	The EVSE internal circuits malfunction.
ON	OFF	Blink	The EVSE detected leakage current or PWM signal error. Stop the EVSE immediately.
