Nissan Ariya: Service Data
Body Alignment

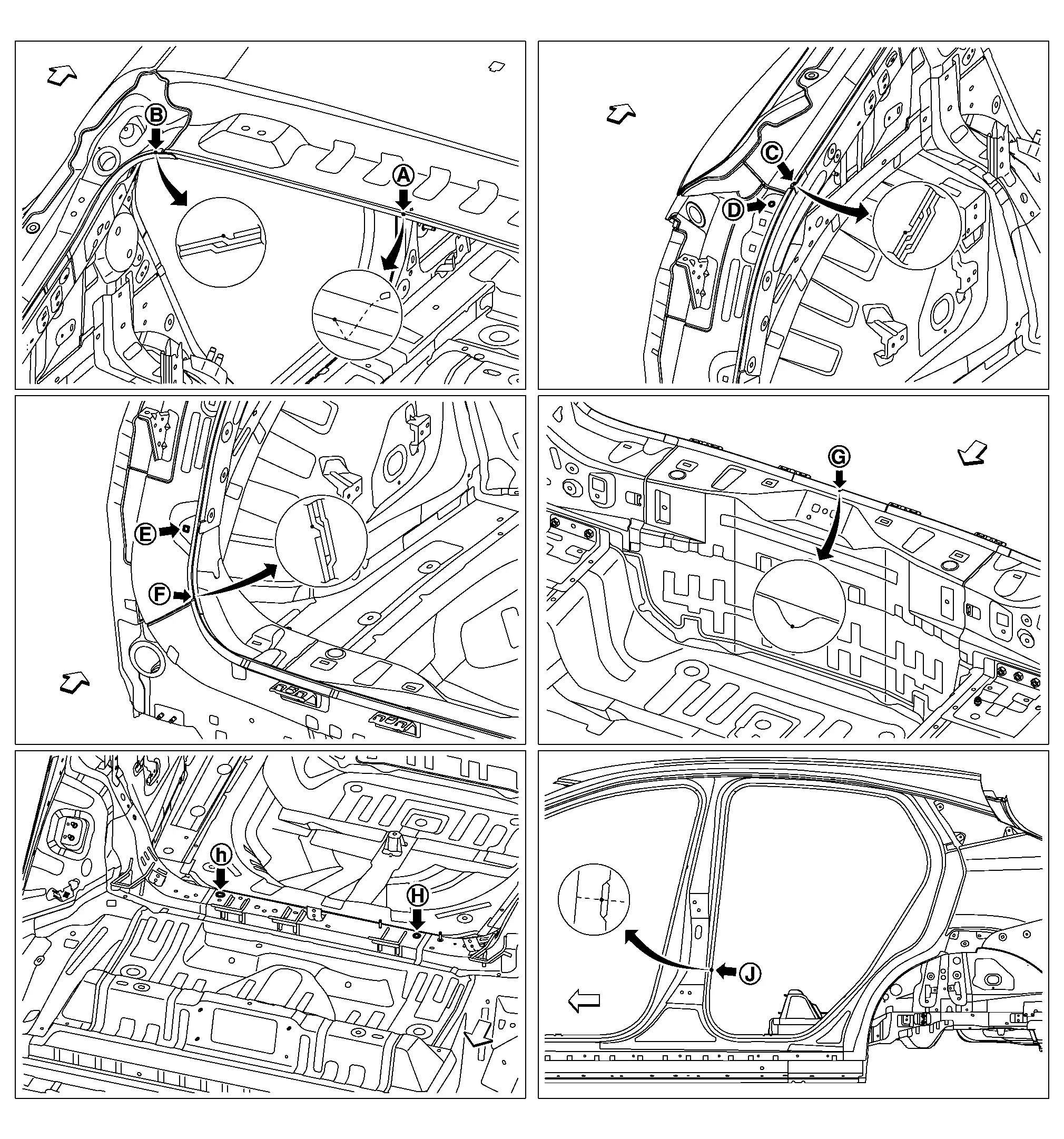

Body Center Marks

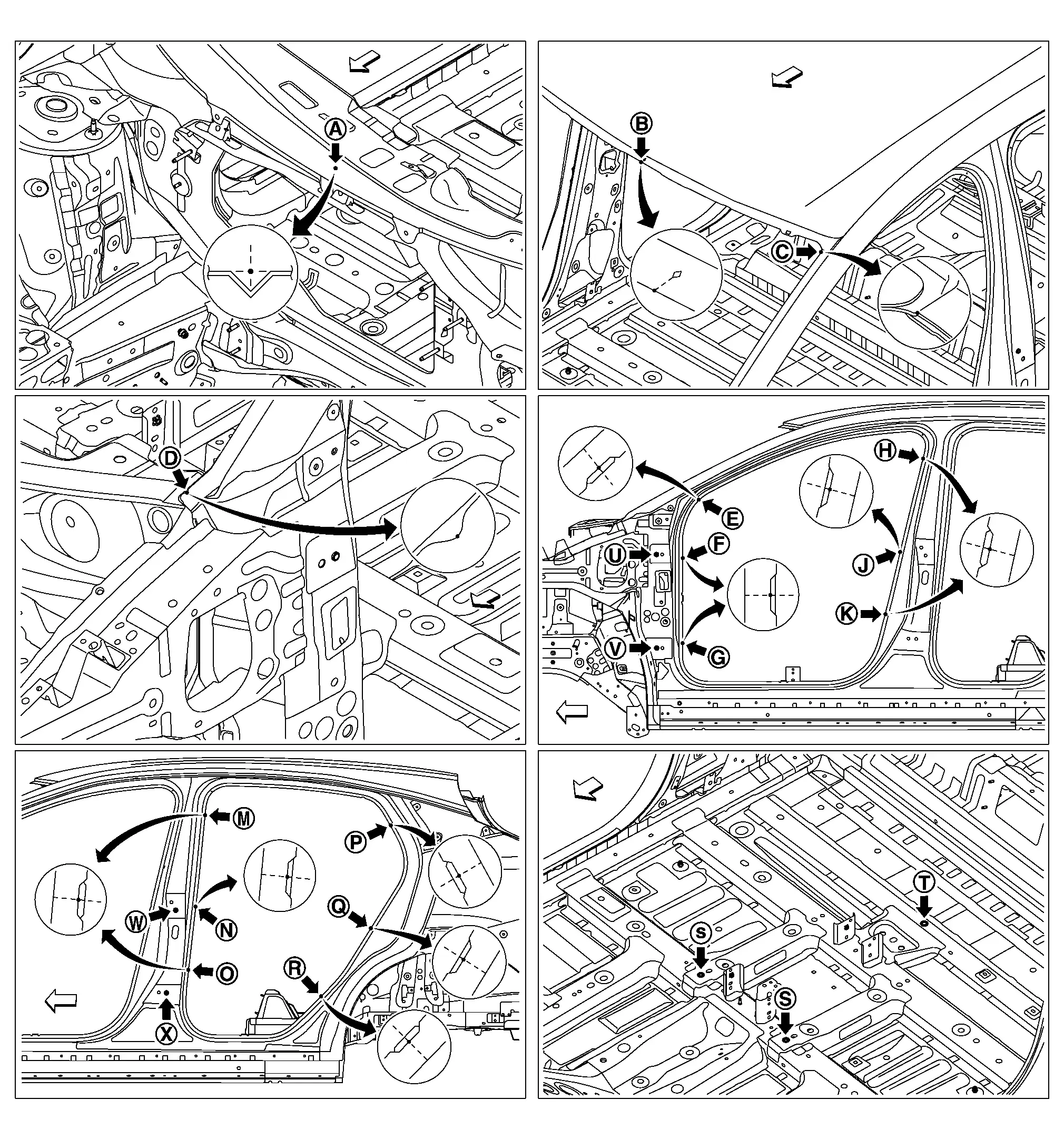

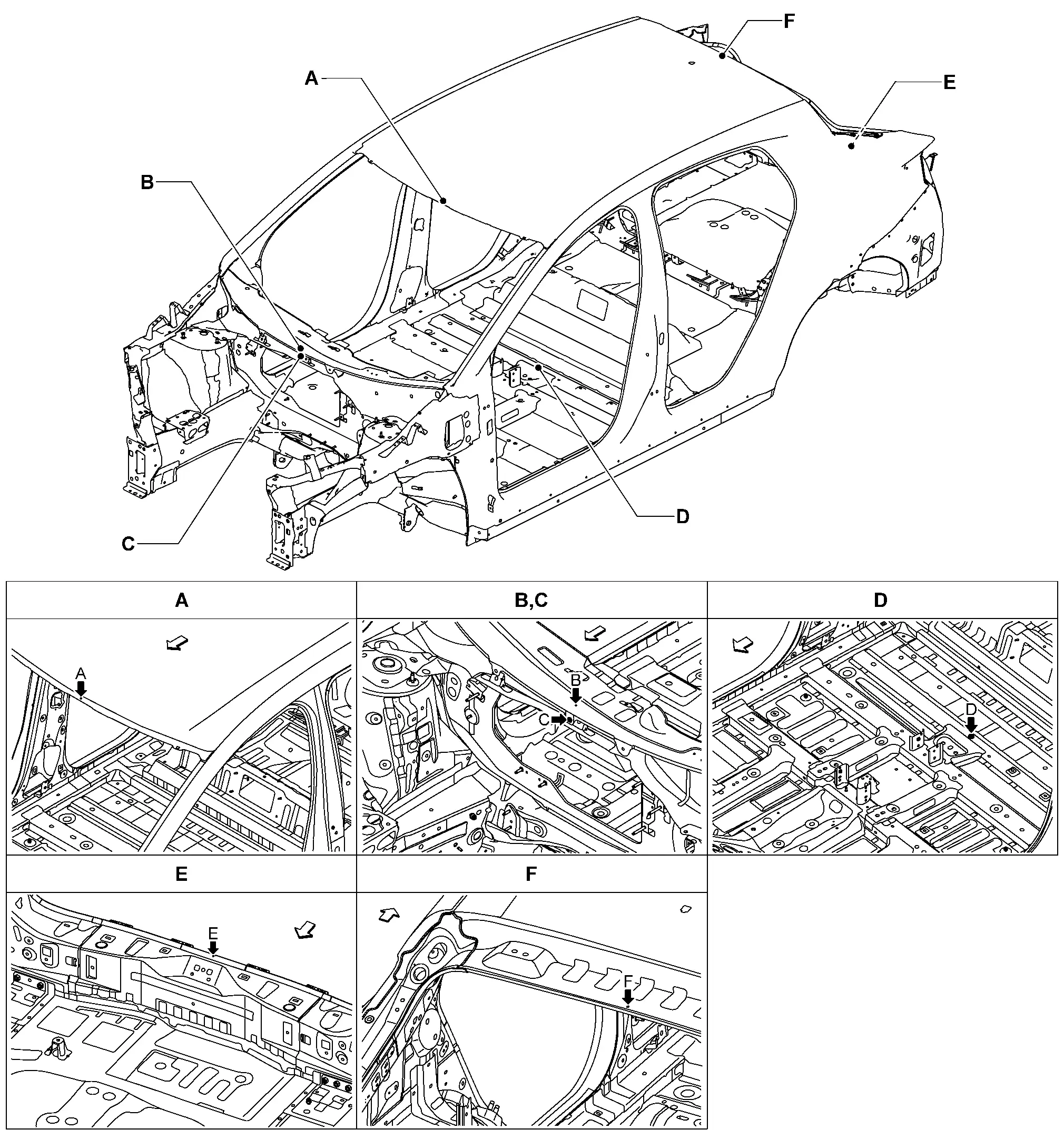

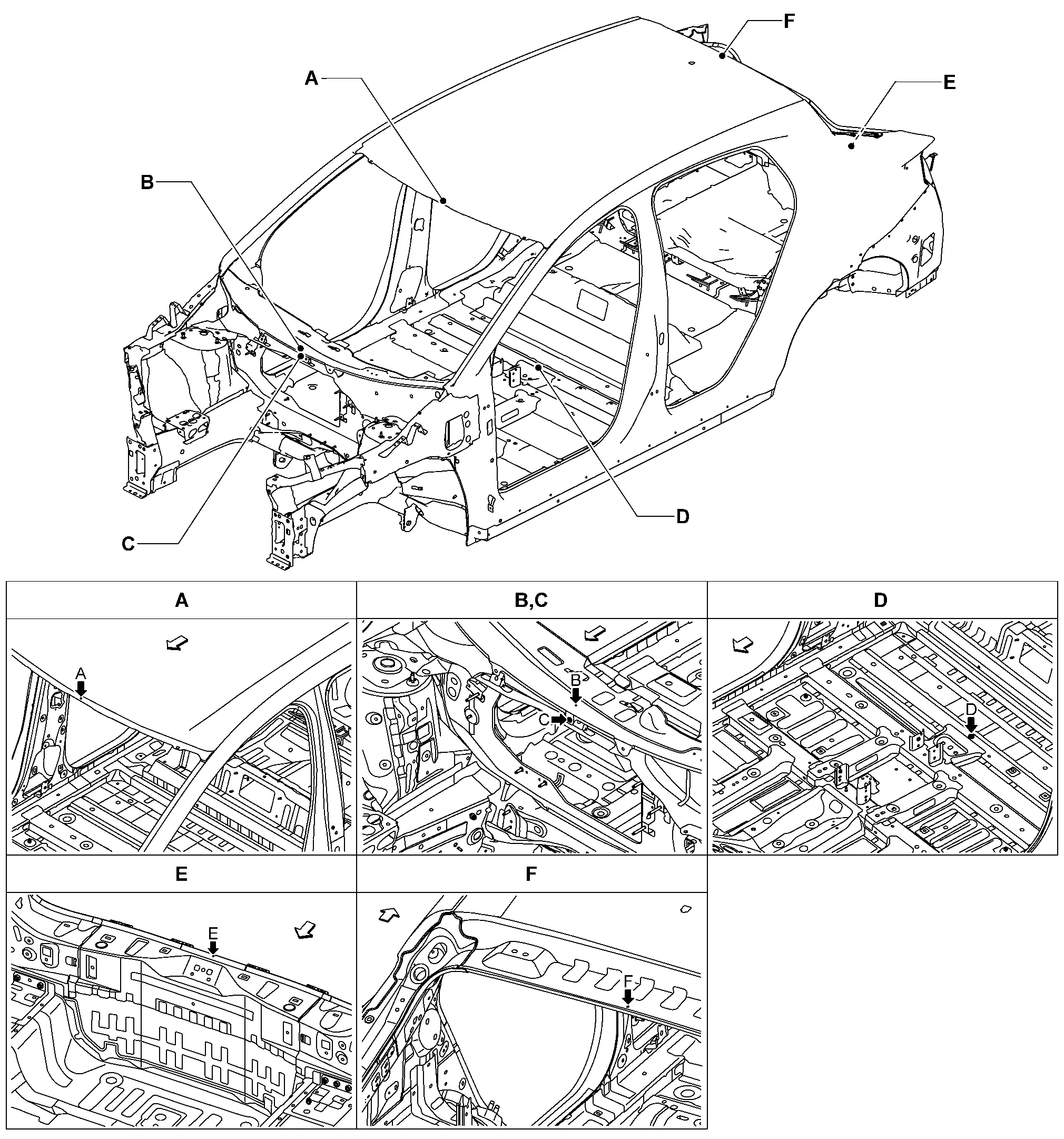

Factory marks exist on certain parts of the body to indicate the vehicle center. When repairing the Nissan Ariya vehicle frame (members, pillars, etc.) damaged in an accident, the most accurate and effective repair will be achieved by using these marks together with body alignment specifications.
2WD
 : Nissan Ariya Vehicle front |
Unit: mm (in)
| Points | Portion | Marks |
|---|---|---|
| A | Front roof | Embossment |
| B | Cowl top | Embossment |
| C | Cowl top | Hole φ9 (0.35) |
| D | Front floor rear center reinforcement | Hole φ16 (0.63) |
| E | Upper rear panel reinforcement | Indent |
| F | Rear roof | Embossment |
AWD
| : Nissan Ariya Vehicle front |
Unit: mm (in)
| Points | Portion | Marks |
|---|---|---|
| A | Front roof | Embossment |
| B | Cowl top | Embossment |
| C | Cowl top | Hole φ9 (0.35) |
| D | Front floor rear center reinforcement | Hole φ16 (0.63) |
| E | Upper rear panel reinforcement | Indent |
| F | Rear roof | Embossment |
Description
-
All dimensions indicated in the figures are actual.
-
When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself to make sure there is no free play.
-
When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
-
Measurements should be taken at the center of the mounting holes.
-
A star mark (
) following the value at the measuring point indicates that the measuring point on the other side is symmetrically the same value. -
The coordinates of the measurement points are the distances measured from the standard line of ″X″, ″Y″ and ″Z″.
-

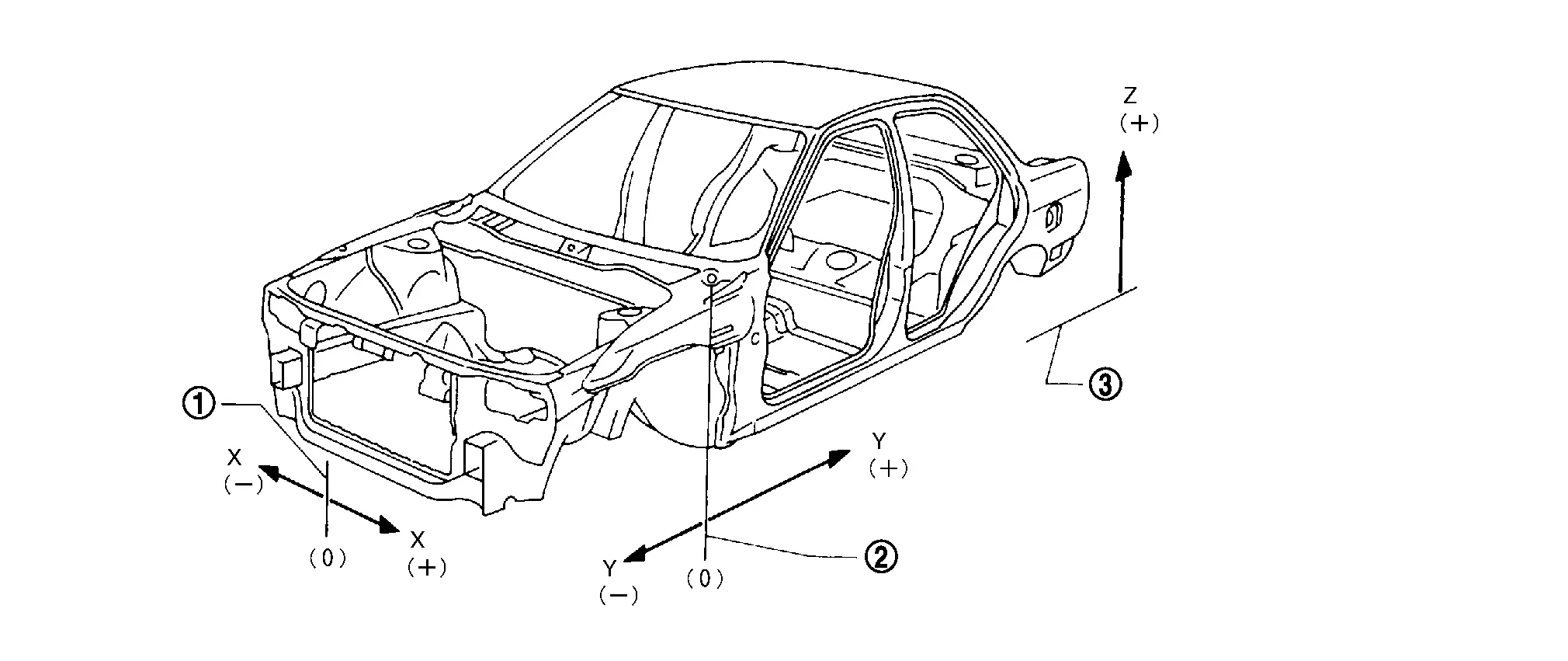

″Z″: Imaginary base line [200 mm (7.87 in) below datum line (″0Z″ at design plan)]
 |
Nissan Ariya Vehicle center |  |
Front axle center |  |
Imaginary base line |
Motor Room
MEASUREMENT
Dimensions marked with ″″ indicate symmetrically identical dimensions on both the right and left hand of the Nissan Ariya vehicle.
| Unit: mm (in) |
Unit: mm (in)
| Point | Dimension | Memo | Point | Dimension | Memo | Point | Dimension | Memo |
|---|---|---|---|---|---|---|---|---|
 –  |
779 (30.67) |
–  |
1554 (61.18) |  –  |
865 (34.06) | |||
–  |
795 (31.30) |
 –  |
1107 (43.58) |  –  |
882 (34.72) | |||
–  |
805 (31.69) |
–  |
336 (13.23) |
– |
830 (32.68) | |||
| – |
614 (24.17) |
–  |
1333 (52.48) |
 –  |
954 (37.56) | |||
| – |
688 (27.09) | –  |
544 (21.42) |
 –  |
946 (37.24) | |||
| – |
664 (26.14) | –  |
1120 (44.09) |
–  |
343 (13.50) |
|||
 – |
369 (14.53) |
–  |
1564 (61.57) | –  |
1027 (40.43) | |||
| – |
1368 (53.86) |
–  |
1564 (61.57) | – |
1035 (40.75) | |||
| – |
555 (21.85) |
– |
833 (32.80) | — | — |

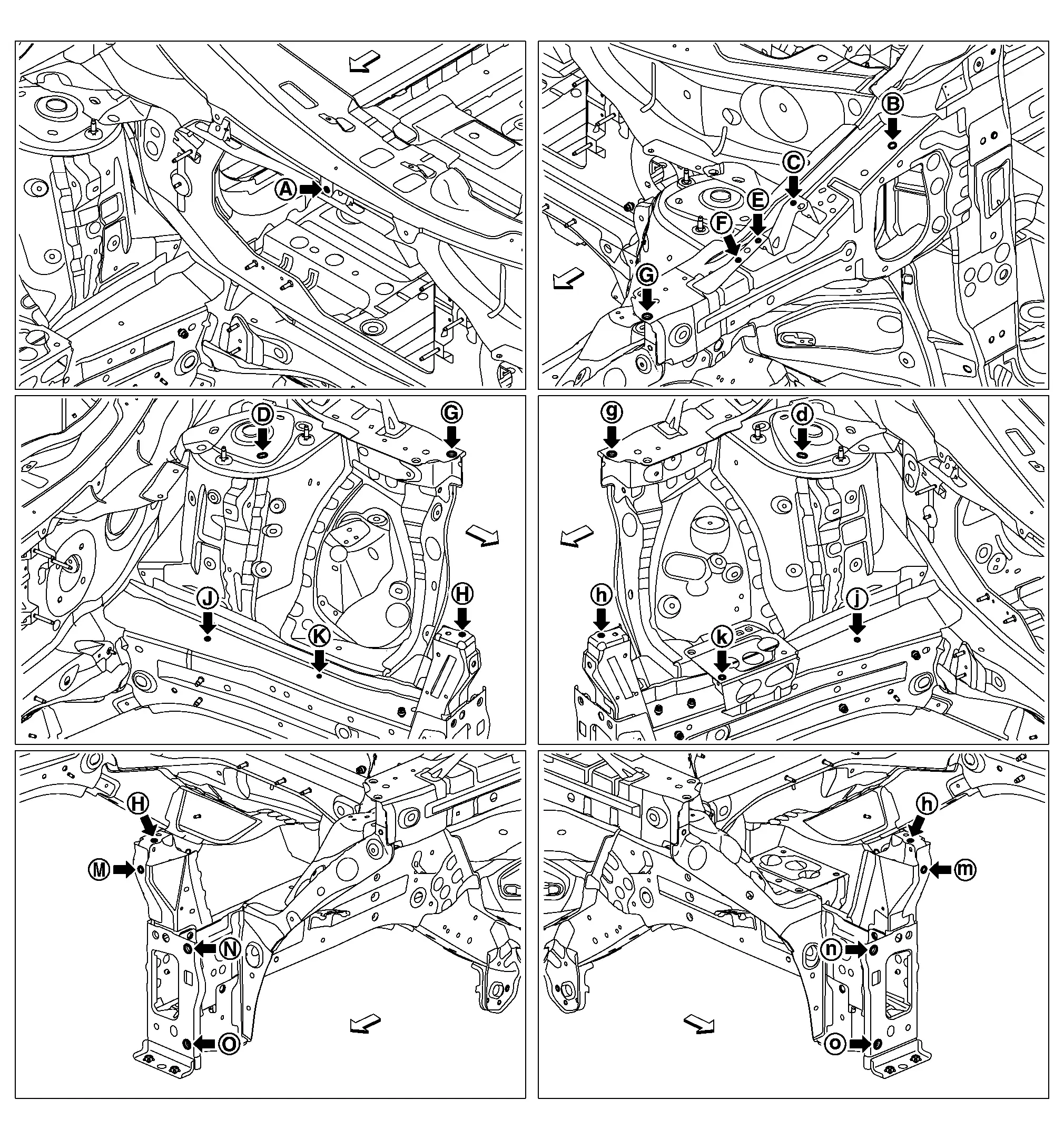

MEASUREMENT POINTS
| : Nissan Ariya Vehicle front |
Unit: mm (in)
| Point | Material | Point | Material |
|---|---|---|---|
|
Cowl top hole center of center positioning mark φ9 (0.35) | |
Upper center radiator core support installing hole center
: φ11 (0.43) |
 |
Hood hinge installing hole center φ12 (0.47) | |
Front side member hole center
: φ5 (0.20) |
|
Front fender installing hole center φ7 (0.28) | |
Battery mounting bracket hole center φ11 (0.43) |
|
Front suspension installing hole center 16 x 10 (0.63 x 0.39) | |
Front bumper reinforcement installing hole center φ16 (0.63) |
|
Hoodledge reinforcement hole center φ15 (0.59) | — | — |
Underbody
2WD
MEASUREMENT
Dimensions marked with ″″ indicate symmetrically identical dimensions on both the right and left hand of the Nissan Ariya vehicle.

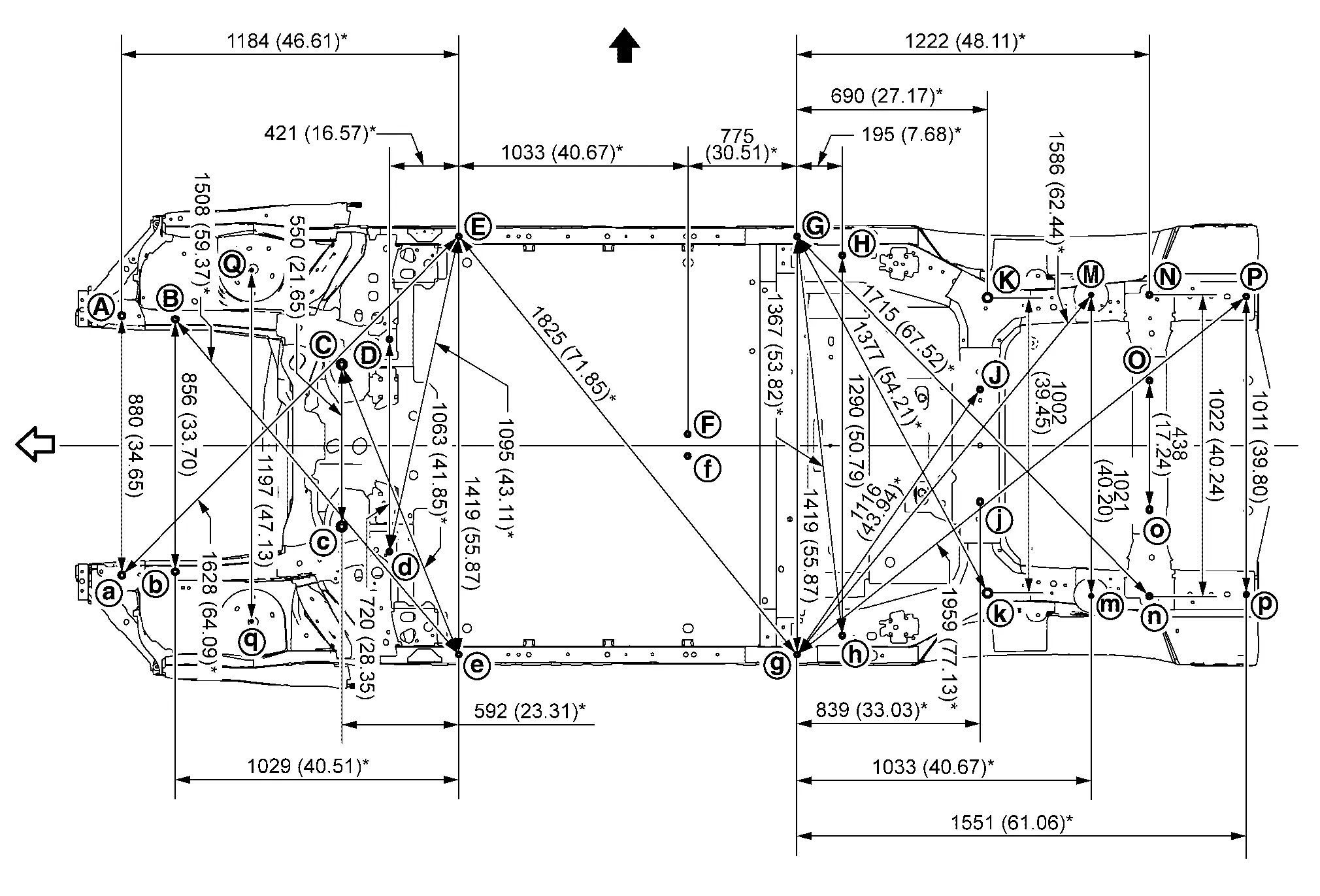

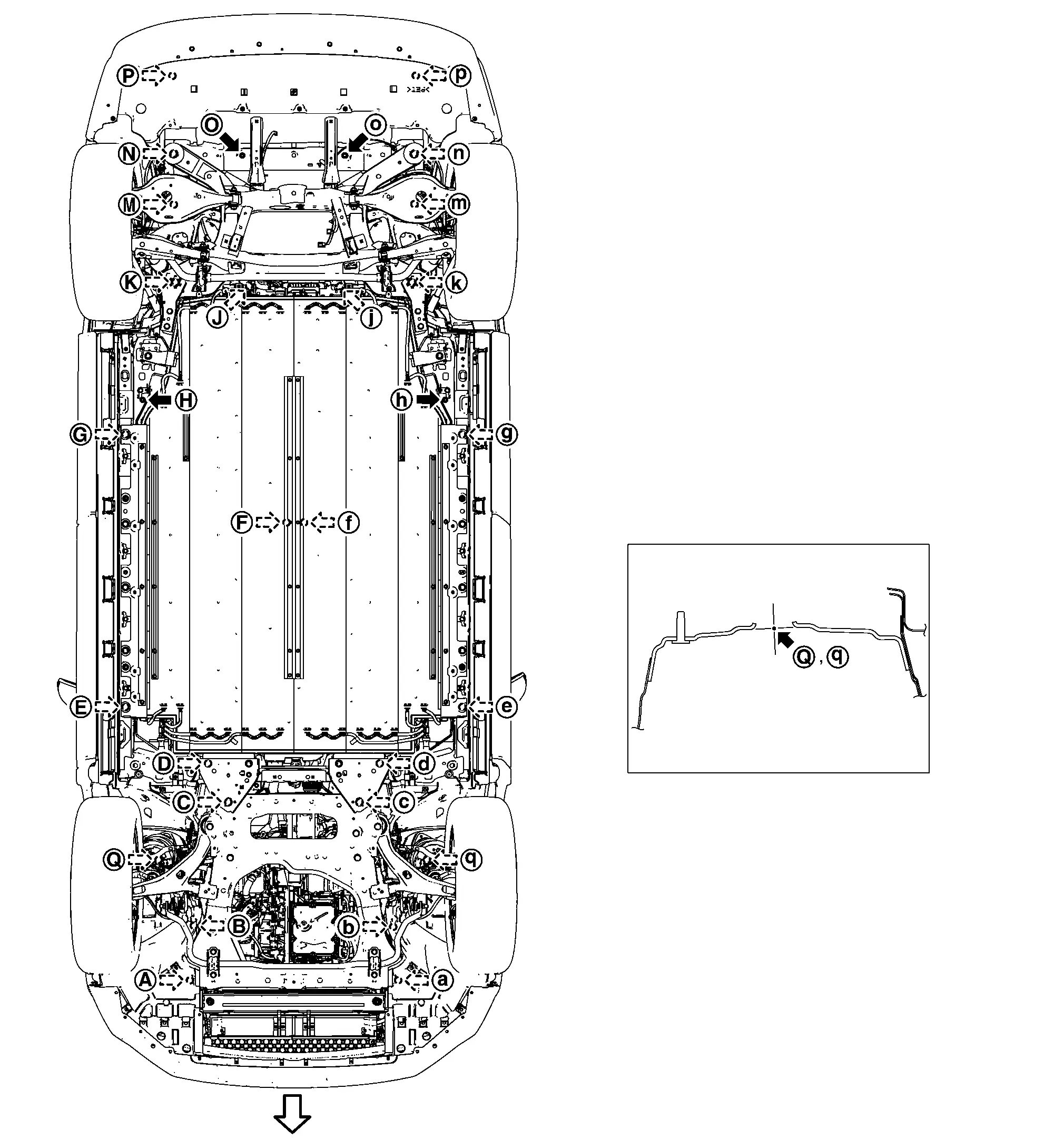

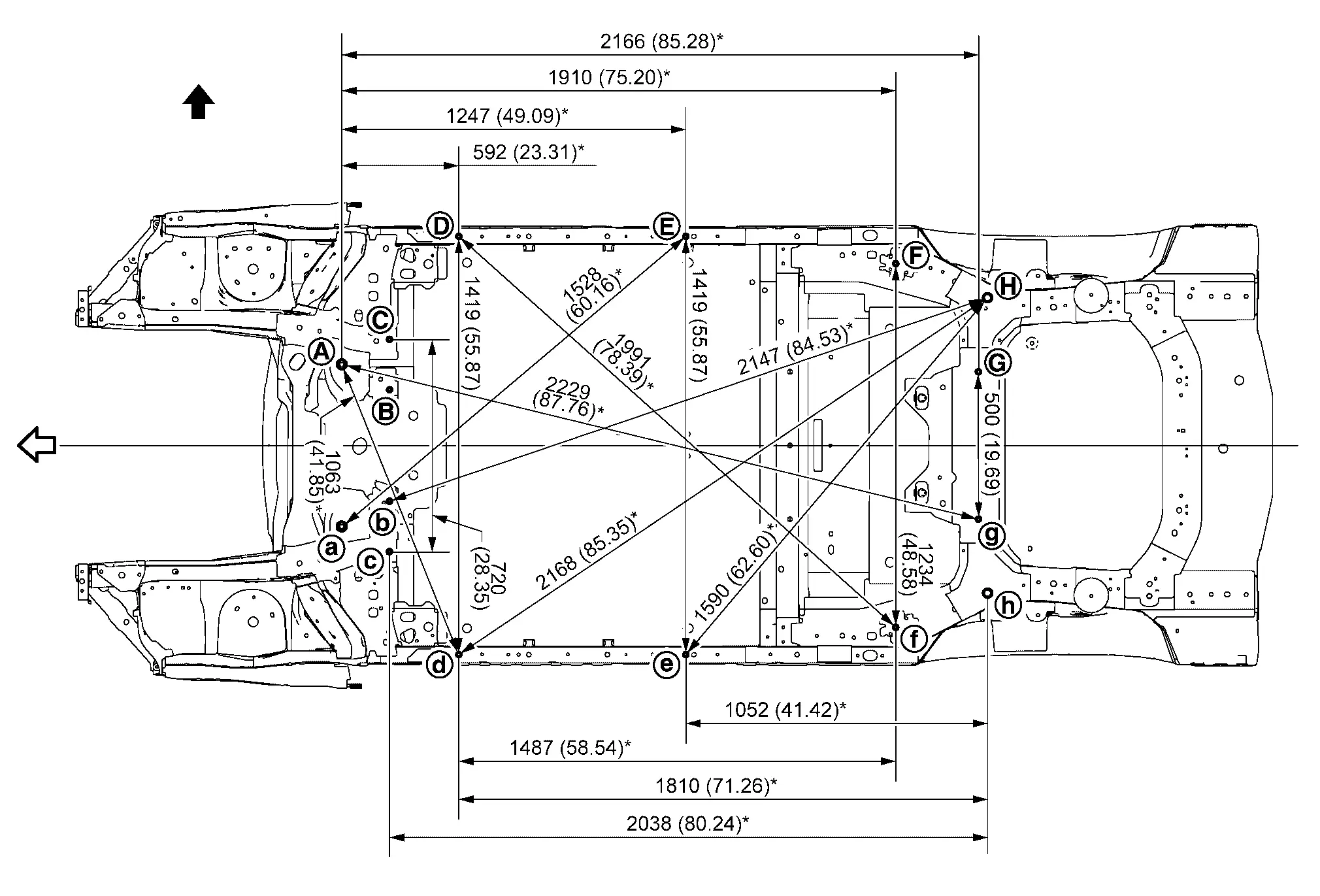

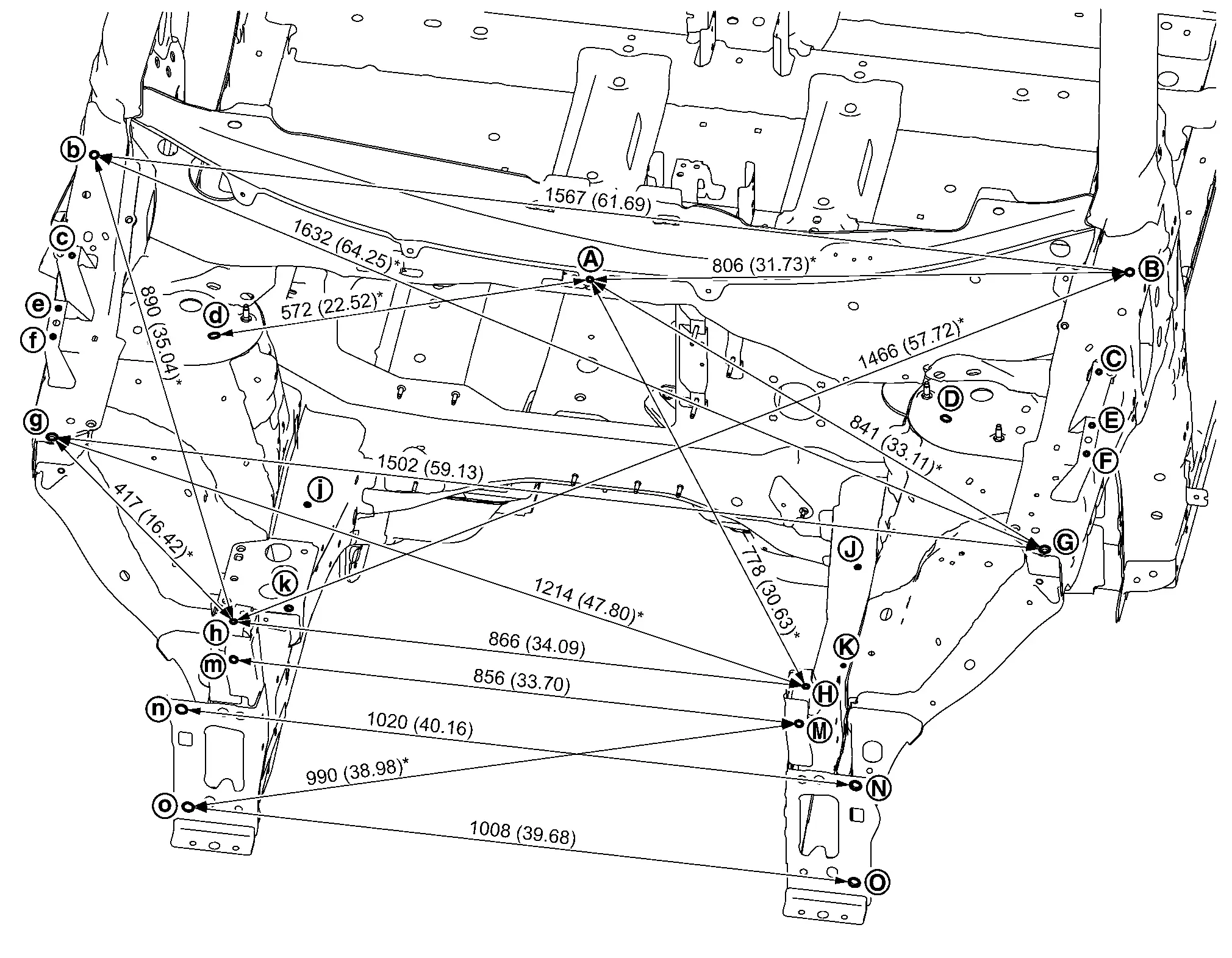

The following figure shows a bottom view of the vehicle.
|
Unit: mm (in)
 : Vehicle left side |
Unit: mm (in)
| Point | Dimension | Memo | Point | Dimension | Memo | Point | Dimension | Memo |
|---|---|---|---|---|---|---|---|---|
| – |
918 (36.14)★ | – |
1118 (44.02)★ | – |
1519 (59.80) | |||
| – |
1098 (43.23)★ | – |
1449 (57.05)★ | – |
1557 (61.30)★ | |||
| – |
1786 (70.31)★ | – |
1637 (64.45)★ | –  |
1792 (70.55)★ | |||
| – |
1198 (47.17)★ | – |
1297 (51.06) | – |
381 (15.00) | |||
| – |
1068 (42.05)★ | – |
1298 (51.10) | – |
909 (35.79)★ | |||
| – |
802 (31.57)★ | – |
1517 (59.72) | – |
1140 (44.88)★ |

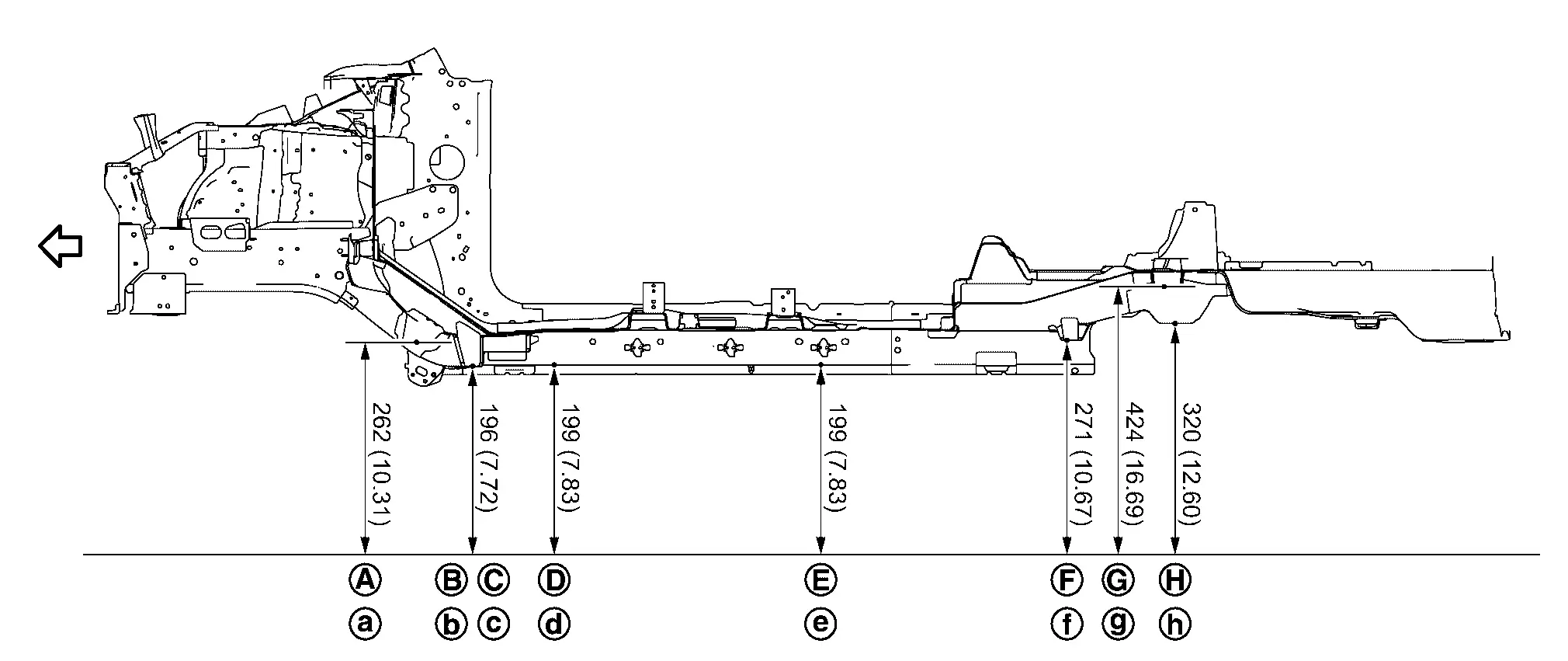

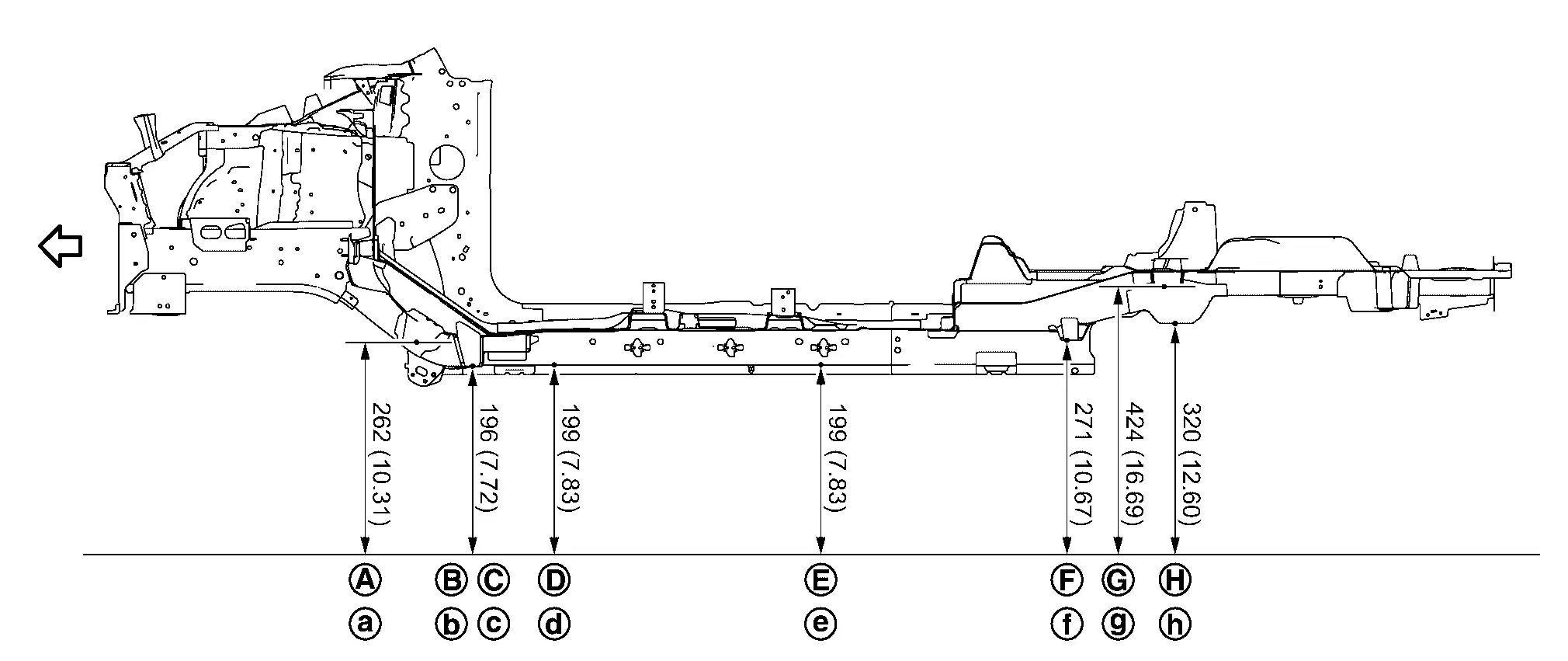

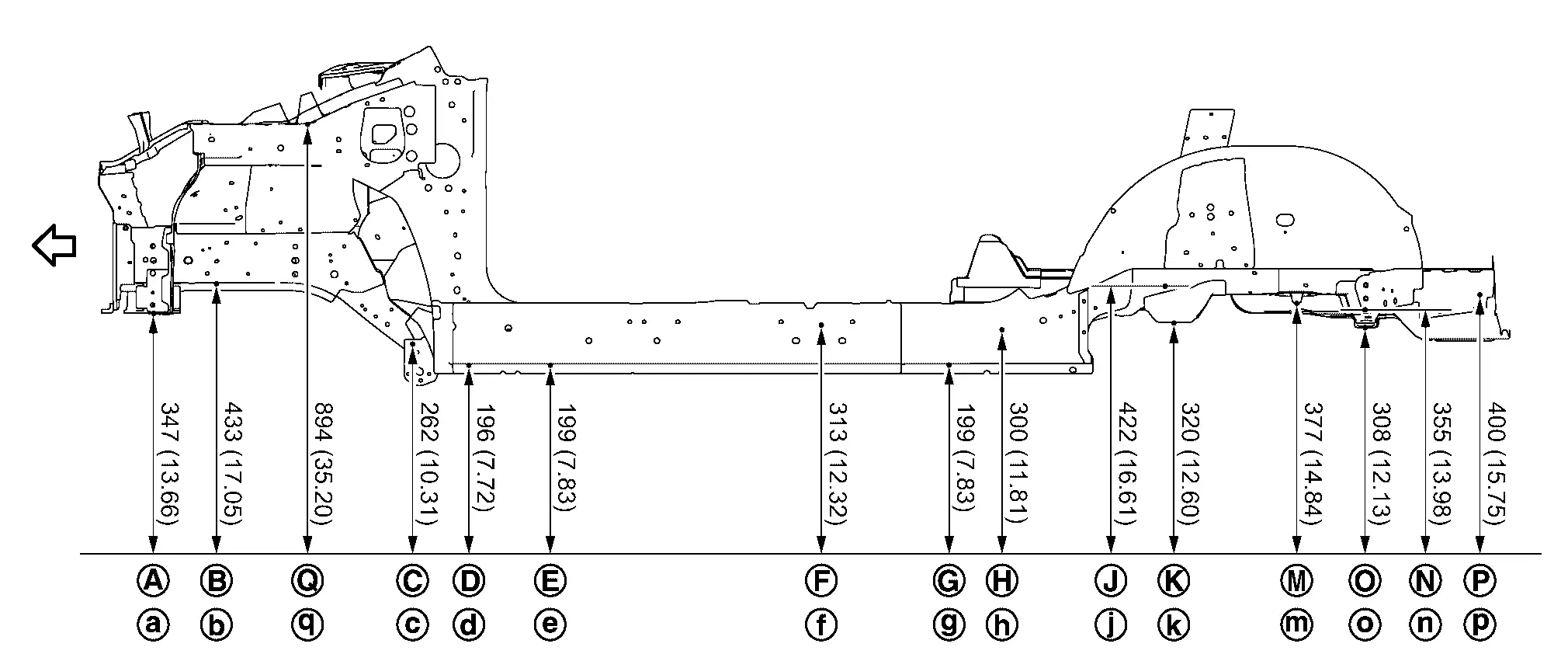

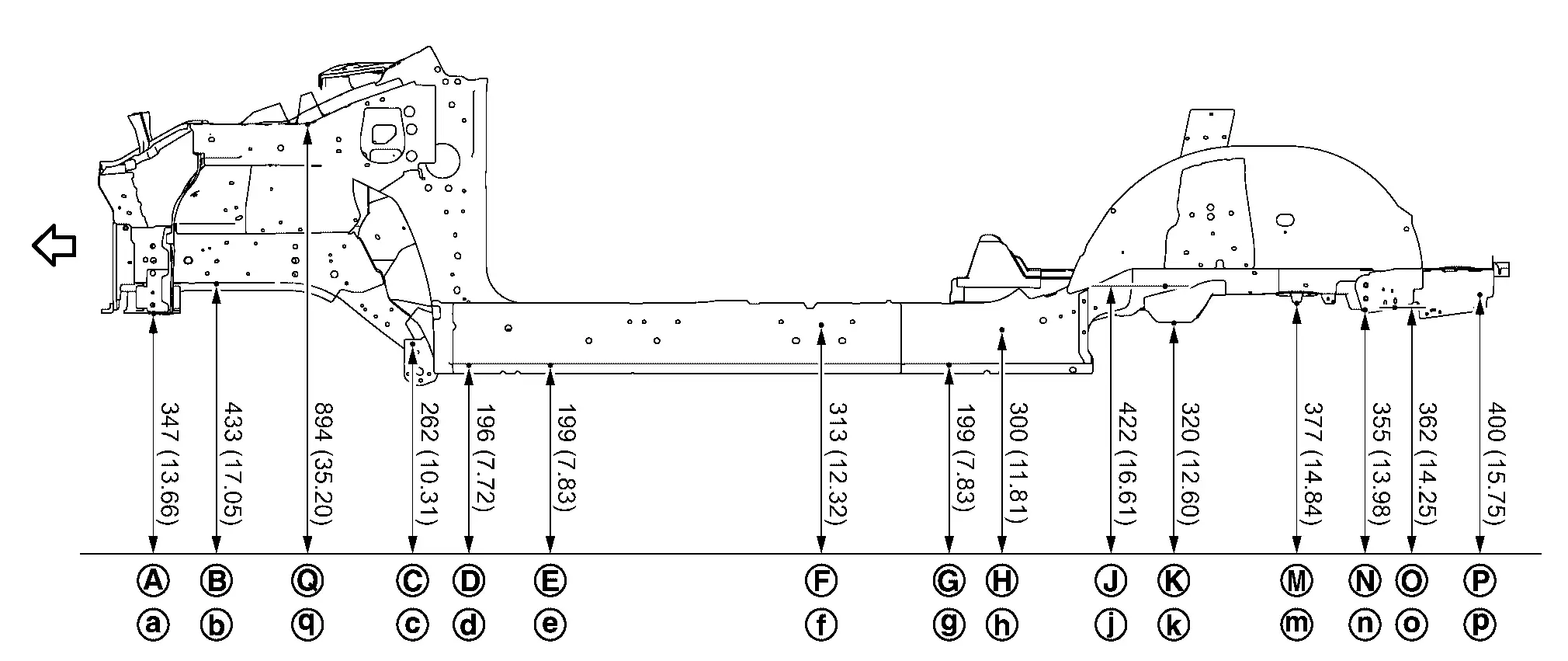

The following figure shows a side view of the vehicle.
|
Unit: mm (in) : Nissan Ariya Vehicle front |

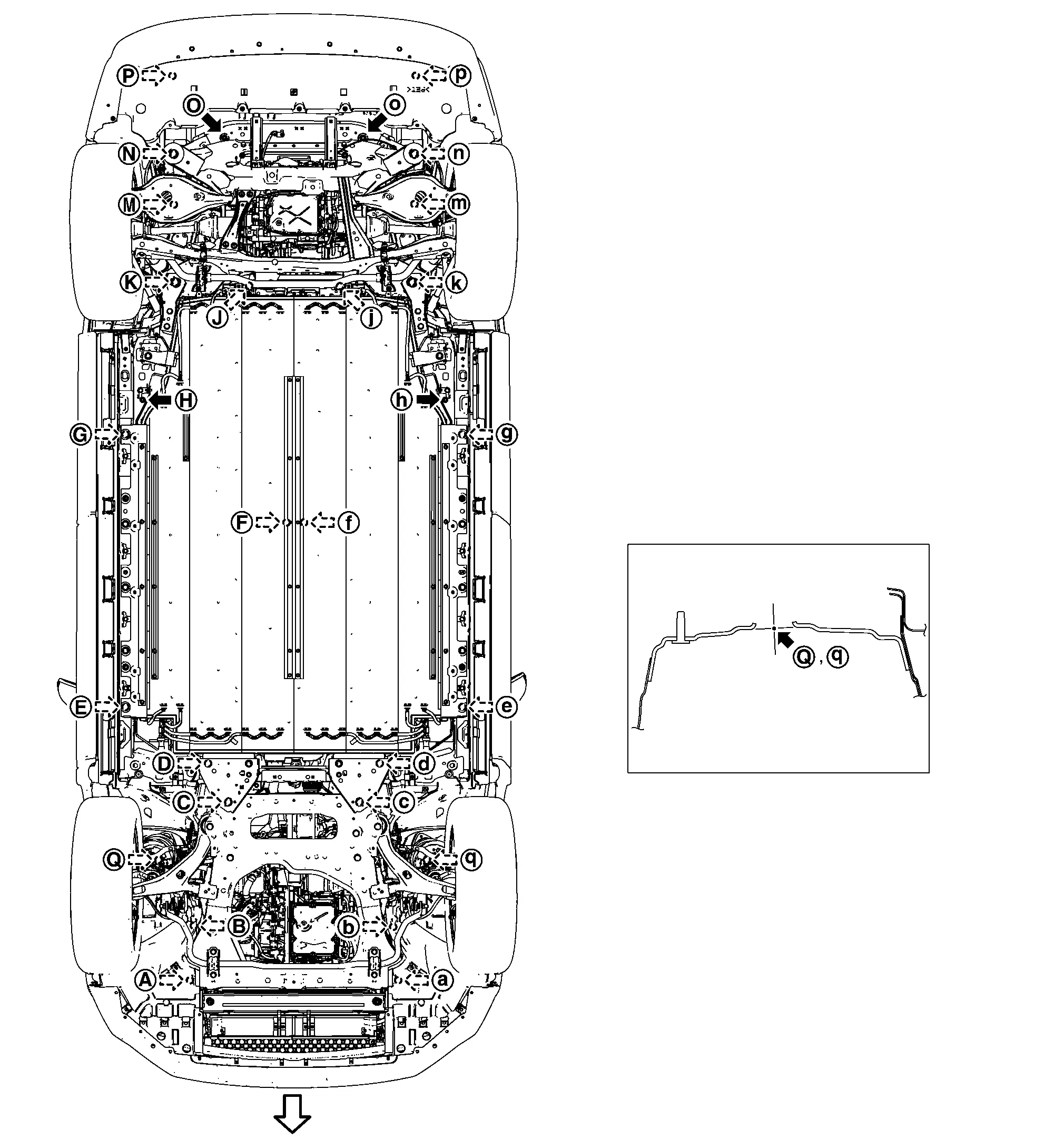

MEASUREMENT POINTS
| : Nissan Ariya Vehicle front |
Unit: mm (in)
| Points | Coordinates | Remarks | Points | Coordinates | Remarks | ||||
|---|---|---|---|---|---|---|---|---|---|
| X | Y | Z | X | Y | Z | ||||
 |
±440.0 (±17.323) |
-441.3 (-17.374) |
347.0 (13.661) |
Hole φ20 (0.79) | |
±190.5 (±7.500) |
2470.6 (97.268) |
422.2 (16.622) |
: Hole 20×16 (0.79×0.63) |
|
±428.0 (±16.850) |
-260.0 (-10.236) |
433.0 (17.047) |
Hole 20×16 (0.79×0.63) | |
±501.0 (±19.724) |
2496.0 (98.268) |
319.5 (12.579) |
: Hole 34×29 (1.34×1.14) |
|
±275.0 (±10.827) |
305.0 (12.008) |
262.0 (10.315) |
: Hole 34×31 (1.34×1.22) |
|
±510.5 (±20.098) |
2847.6 (112.110) |
376.5 (14.823) |
Hole φ10 (0.39) |
|
±360.0 (±14.173) |
467.0 (18.386) |
196.0 (7.717) |
Hole φ15 (0.59) | |
±511.0 (±20.118) |
3045.0 (119.882) |
354.7 (13.965) |
Hole φ17 (0.67) |
|
±709.4 (±27.929) |
701.9 (27.632) |
199.0 (7.835) |
Hole φ15 (0.59) | |
220.0 (8.661) |
3045.6 (119.905) |
308.0 (12.126) |
Hole φ16 (0.63) |
|
±38.5 (±1.516) |
1478.7 (58.216) |
313.5 (12.341) |
Hole φ16 (0.63) | |
-217.5 (-8.563) |
3045.6 (119.905) |
308.0 (12.126) |
Hole 20×16 (0.79×0.63) |
|
±709.4 (±27.929) |
1849.6 (72.819) |
199.0 (7.835) |
Hole φ15 (0.59) |  |
±505.6 (±19.905) |
3373.5 (132.815) |
400.2 (15.756) |
Hole φ15 (0.59) |
|
±645.0 (±25.394) |
2003.2 (78.866) |
300.4 (11.827) |
Hole φ16 (0.63) |   |
±598.6 (±23.567) |
4.0 (0.157) |
893.7 (35.185) |
Hole φ33 (1.30) |
AWD
MEASUREMENT
Dimensions marked with ″″ indicate symmetrically identical dimensions on both the right and left hand of the Nissan Ariya vehicle.
The following figure shows a bottom view of the vehicle.
|
Unit: mm (in)
: Vehicle left side |
Unit: mm (in)
| Point | Dimension | Memo | Point | Dimension | Memo | Point | Dimension | Memo |
|---|---|---|---|---|---|---|---|---|
| – |
918 (36.14) |
– |
1118 (44.02) |
– |
1792 (70.55) |
|||
| – |
1098 (43.23) |
– |
1449 (57.05) |
– |
381 (15.00) | |||
| – |
1786 (70.31) |
– |
1637 (64.45) |
– |
909 (35.79) |
|||
| – |
1198 (47.17) |
– |
1356 (53.39) |
– |
1140 (44.88) |
|||
| – |
1068 (42.05) |
– |
1637 (64.45) |
— | — | |||
| – |
802 (31.57) |
– |
1557 (61.30) |
— | — |
The following figure shows a side view of the vehicle.
|
Unit: mm (in) : Nissan Ariya Vehicle front |
MEASUREMENT POINTS
| : Nissan Ariya Vehicle front |
Unit: mm (in)
| Points | Coordinates | Remarks | Points | Coordinates | Remarks | ||||
|---|---|---|---|---|---|---|---|---|---|
| X | Y | Z | X | Y | Z | ||||
|
±440.0 (±17.323) |
-441.3 (-17.374) |
347.0 (13.661) |
Hole φ20 (0.79) | |
±190.5 (±7.500) |
2470.6 (97.268) |
422.2 (16.622) |
: Hole 20×16 (0.79×0.63) |
|
±428.0 (±16.850) |
-260.0 (-10.236) |
433.0 (17.047) |
Hole 20×16 (0.79×0.63) | |
±501.0 (±19.724) |
2496.0 (98.268) |
319.5 (12.579) |
: Hole 34×29 (1.34×1.14) |
|
±275.0 (±10.827) |
305.0 (12.008) |
262.0 (10.315) |
: Hole 34×31 (1.34×1.22) |
|
±510.5 (±20.098) |
2847.6 (112.110) |
376.5 (14.823) |
Hole φ10 (0.39) |
|
±360.0 (±14.173) |
467.0 (18.386) |
196.0 (7.717) |
Hole φ15 (0.59) | |
±511.0 (±20.118) |
3045.0 (119.882) |
354.7 (13.965) |
Hole φ17 (0.67) |
|
±709.4 (±27.929) |
701.9 (27.632) |
199.0 (7.835) |
Hole φ15 (0.59) | |
±297.2 (±11.701) |
3130.7 (123.256) |
361.8 (14.244) |
: Hole 20×16 (0.79×0.63) |
|
±38.5 (±1.516) |
1478.7 (58.216) |
313.5 (12.341) |
Hole φ16 (0.63) | |
±505.6 (±19.905) |
3373.5 (132.815) |
400.2 (15.756) |
Hole φ15 (0.59) |
|
±709.4 (±27.929) |
1849.6 (72.819) |
199.0 (7.835) |
Hole φ15 (0.59) | |
±598.6 (±23.567) |
4.0 (0.157) |
893.7 (35.185) |
Hole φ33 (1.30) |
|
±645.0 (±25.394) |
2003.2 (78.866) |
300.4 (11.827) |
Hole φ16 (0.63) | — | — | — | ||
High-Voltage Battery Compartment
2WD
MEASUREMENT
Dimensions marked with ″″ indicate symmetrically identical dimensions on both the right and left hand of the Nissan Ariya vehicle.

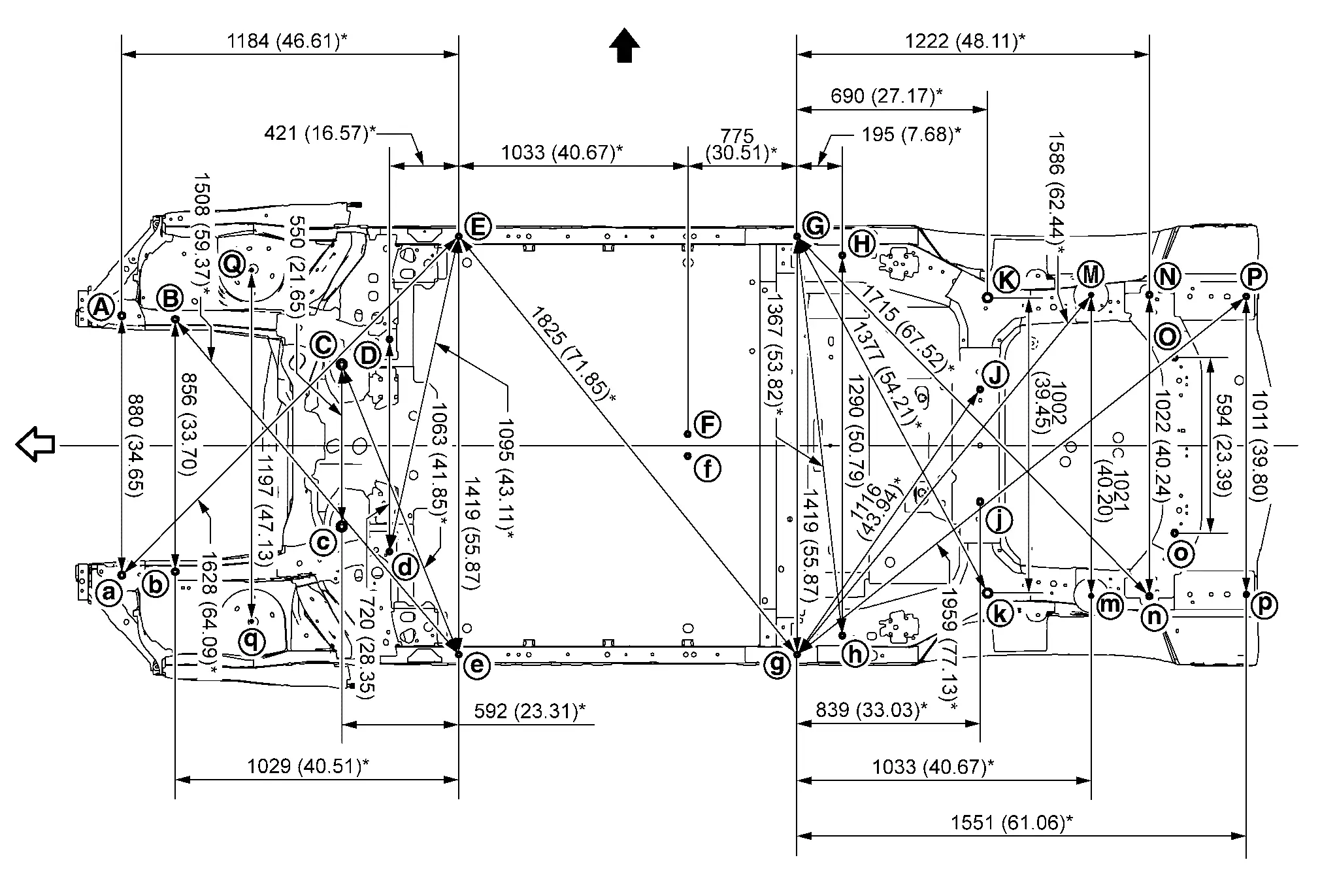

The following figure shows a bottom view of the vehicle.
|
Unit: mm (in)
: Vehicle left side |
Unit: mm (in)
| Point | Dimension | Memo | Point | Dimension | Memo | Point | Dimension | Memo |
|---|---|---|---|---|---|---|---|---|
| – |
2080 (81.89) |
– |
2057 (80.98) |
– |
336 (13.23) |
|||
| – |
378 (14.88) | – |
2208 (86.93) |
– |
1161 (45.71) |
The following figure shows a side view of the vehicle.
|
Unit: mm (in) : Nissan Ariya Vehicle front |
MEASUREMENT POINTS
| : Nissan Ariya Vehicle front |
Unit: mm (in)
| Points | Coordinates | Remarks | Points | Coordinates | Remarks | ||||
|---|---|---|---|---|---|---|---|---|---|
| X | Y | Z | X | Y | Z | ||||
|
±275.0 (±10.827) |
305.0 (12.008) |
262.0 (10.315) |
: Hole 34×31 (1.34×1.22) |
|
±709.4 (±27.929) |
1472.4 (57.968) |
199.0 (7.835) |
Hole φ15 (0.59) |
|
±189.0 (±7.441) |
467.0 (18.386) |
196.0 (7.717) |
Hole φ15 (0.59) | |
±616.8 (±24.283) |
2184.5 (86.004) |
270.8 (10.661) |
Hole φ15 (0.59) |
|
±360.0 (±14.173) |
467.0 (18.386) |
196.0 (7.717) |
Hole φ15 (0.59) | |
±250.0 (±9.843) |
2465.0 (97.047) |
424.0 (16.693) |
Hole φ15 (0.59) |
|
±709.4 (±27.929) |
701.9 (27.632) |
199.0 (7.835) |
Hole φ15 (0.59) | |
±501.0 (±19.724) |
2496.0 (98.268) |
319.5 (12.579) |
: Hole 34×29 (1.34×1.14) |
AWD
MEASUREMENT
Dimensions marked with ″″ indicate symmetrically identical dimensions on both the right and left hand of the Nissan Ariya vehicle.
The following figure shows a bottom view of the vehicle.
|
Unit: mm (in)
: Vehicle left side |
Unit: mm (in)
| Point | Dimension | Memo | Point | Dimension | Memo | Point | Dimension | Memo |
|---|---|---|---|---|---|---|---|---|
| – |
2080 (81.89) |
– |
2057 (80.98) |
– |
336 (13.23) |
|||
| – |
378 (14.88) | – |
2208 (86.93) |
– |
1161 (45.71) |
The following figure shows a side view of the vehicle.
|
Unit: mm (in) : Nissan Ariya Vehicle front |
MEASUREMENT POINTS
| : Nissan Ariya Vehicle front |
Unit: mm (in)
| Points | Coordinates | Remarks | Points | Coordinates | Remarks | ||||
|---|---|---|---|---|---|---|---|---|---|
| X | Y | Z | X | Y | Z | ||||
|
±275.0 (±10.827) |
305.0 (12.008) |
262.0 (10.315) |
: Hole 34×31 (1.34×1.22) |
|
±709.4 (±27.929) |
1472.4 (57.968) |
199.0 (7.835) |
Hole φ15 (0.59) |
|
±189.0 (±7.441) |
467.0 (18.386) |
196.0 (7.717) |
Hole φ15 (0.59) | |
±616.8 (±24.283) |
2184.5 (86.004) |
270.8 (10.661) |
Hole φ15 (0.59) |
|
±360.0 (±14.173) |
467.0 (18.386) |
196.0 (7.717) |
Hole φ15 (0.59) | |
±250.0 (±9.843) |
2465.0 (97.047) |
424.0 (16.693) |
Hole φ15 (0.59) |
|
±709.4 (±27.929) |
701.9 (27.632) |
199.0 (7.835) |
Hole φ15 (0.59) | |
±501.0 (±19.724) |
2496.0 (98.268) |
319.5 (12.579) |
: Hole 34×29 (1.34×1.14) |
Passenger Compartment
EXTERIOR
2WD

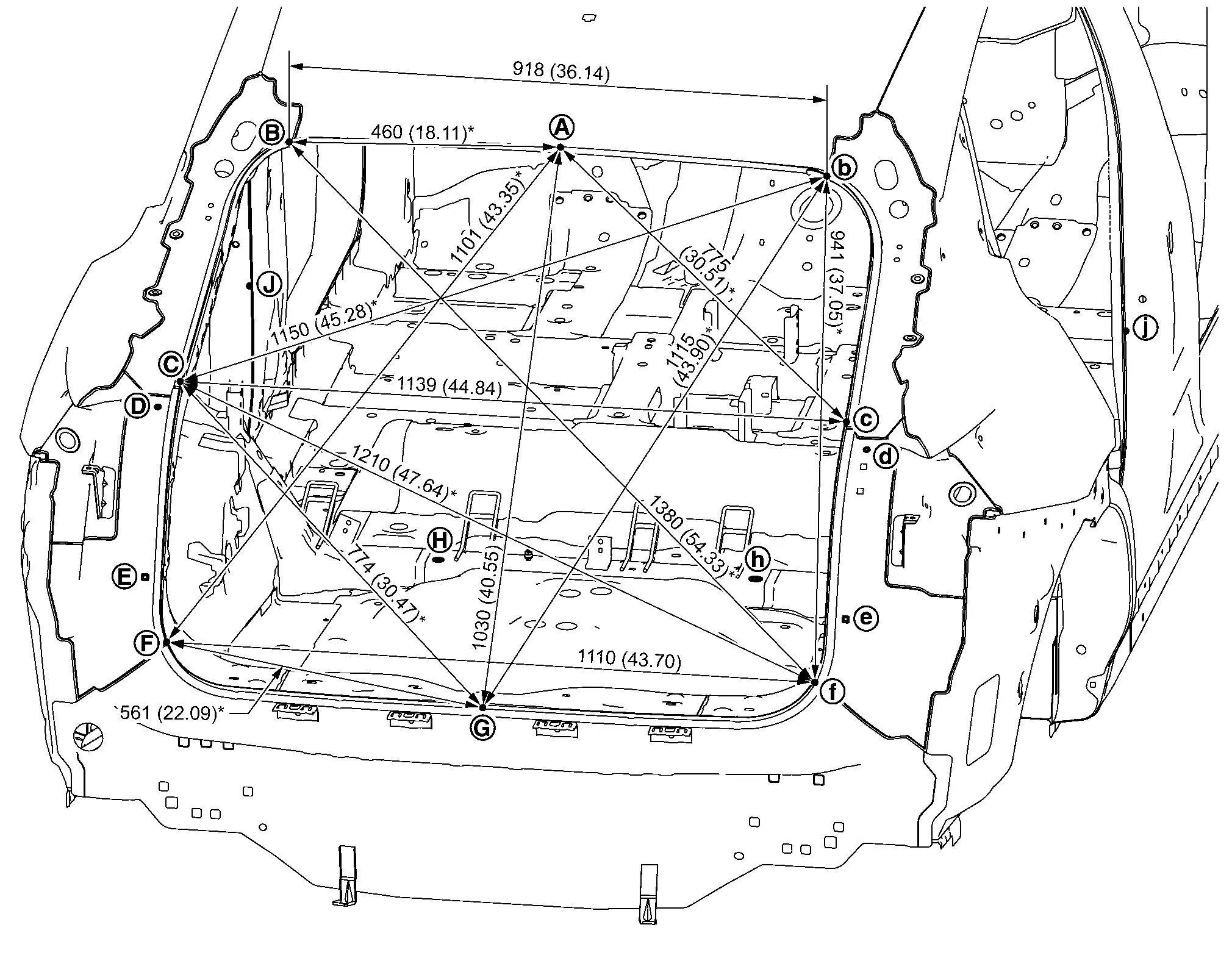

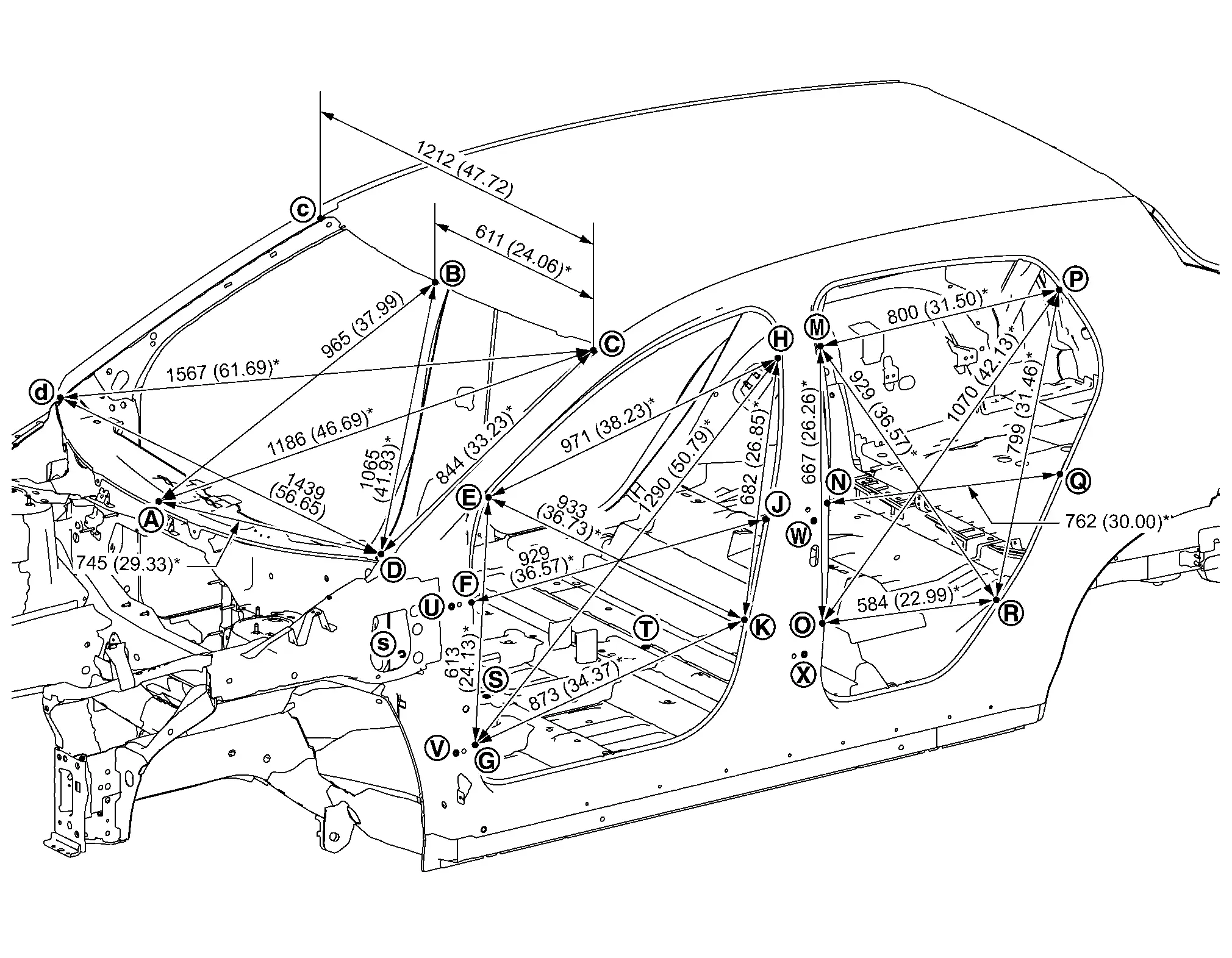

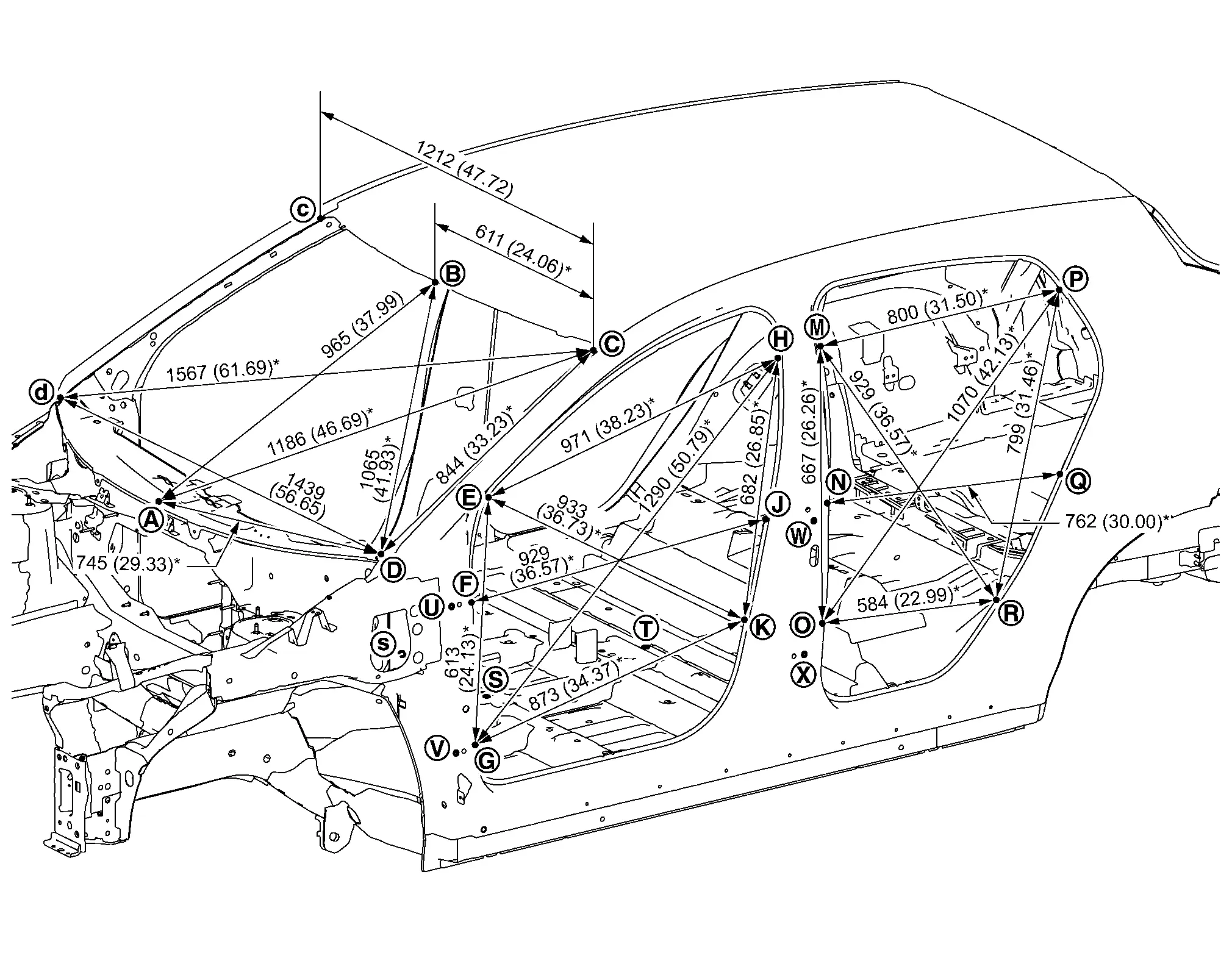

Dimensions marked with ″″ indicate symmetrically identical dimensions on both the right and left hand of the Nissan Ariya vehicle.
| Unit: mm (in) |
Unit: mm (in)
| Point | Dimension | Memo | Point | Dimension | Memo | Point | Dimension | Memo |
|---|---|---|---|---|---|---|---|---|
| – |
1441 (56.73) | –  |
1682 (66.22) |
 – |
1207 (47.52) |
|||
| – |
1591 (62.64) |
– |
1496 (58.90) | – |
968 (38.11) |
|||
| – |
1693 (66.65) |
– |
1654 (65.12) |
– |
824 (32.44) |
|||
| – |
1739 (68.46) |
– |
1496 (58.90) | – |
1454 (57.24) |
|||
| – |
1496 (58.90) | – |
1749 (68.86) |
– |
1196 (47.09) |
|||
| – |
1761 (69.33) |
– |
1599 (62.95) |
–  |
971 (38.23) |
|||
| – |
1496 (58.90) | – |
1280 (50.39) |  –  |
1631 (64.21) | |||
| – |
1913 (75.31) |
– |
1592 (62.68) |
–  |
1144 (45.04) |
|||
| – |
1732 (68.19) |
– |
1441 (56.73) | –  |
1161 (45.71) |
|||
| – |
1335 (52.56) | – |
1481 (58.31) |  –  |
1669 (65.71) | |||
| – |
1569 (61.77) |
 – |
1029 (40.51) |
– |
1209 (47.60) |
|||
| – |
1496 (58.90) | – |
906 (35.67) |
– |
1104 (43.46) |
|||
| – |
1496 (58.90) | – |
750 (29.53) |
–  |
1625 (63.98) | |||
| – |
1328 (52.28) | – |
1220 (48.03) |
–  |
1652 (65.04) | |||
| – |
1560 (61.42) |
– |
936 (36.85) |
— | — | |||
| – |
1530 (60.24) |
– |
768 (30.24) |
— | — |

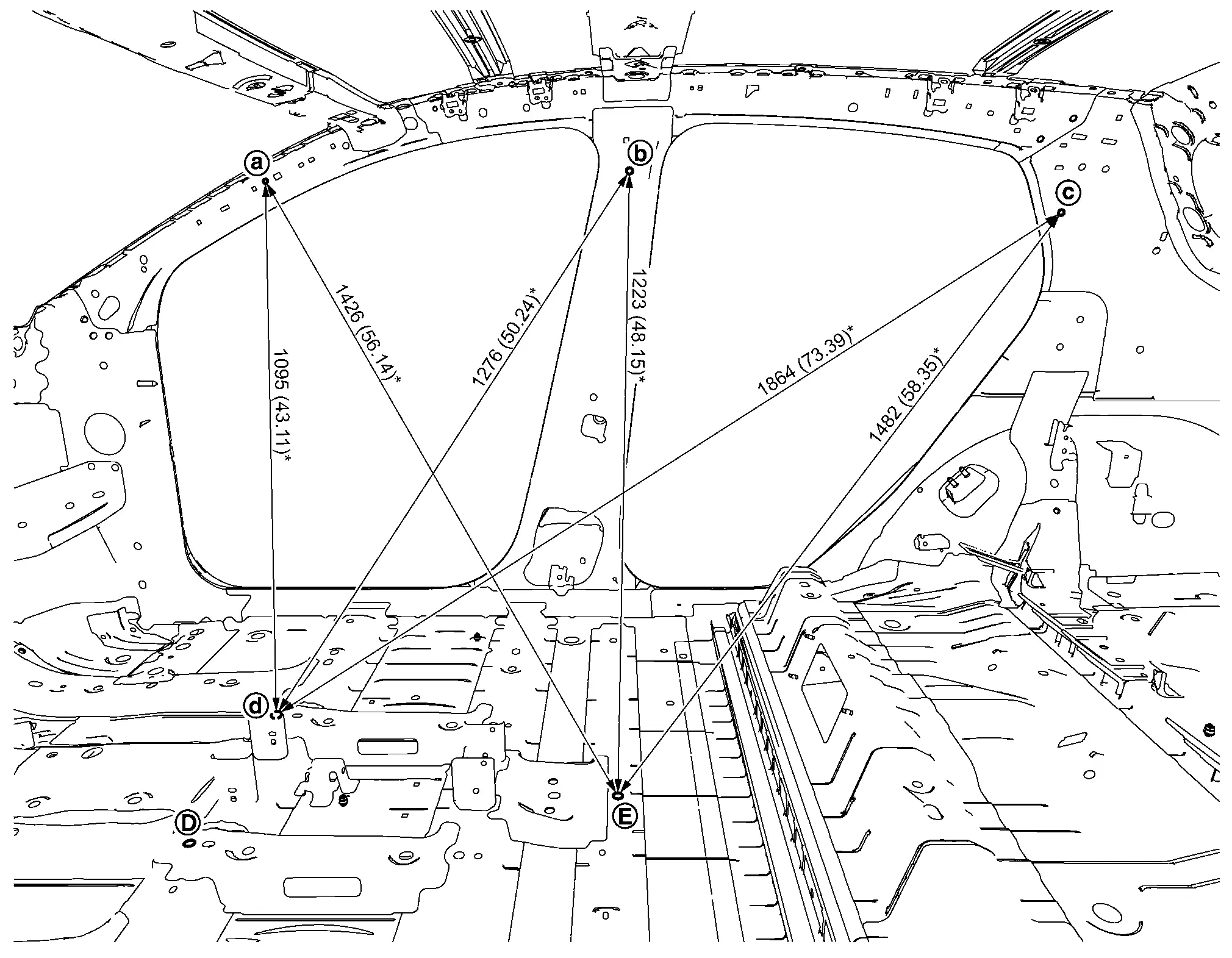

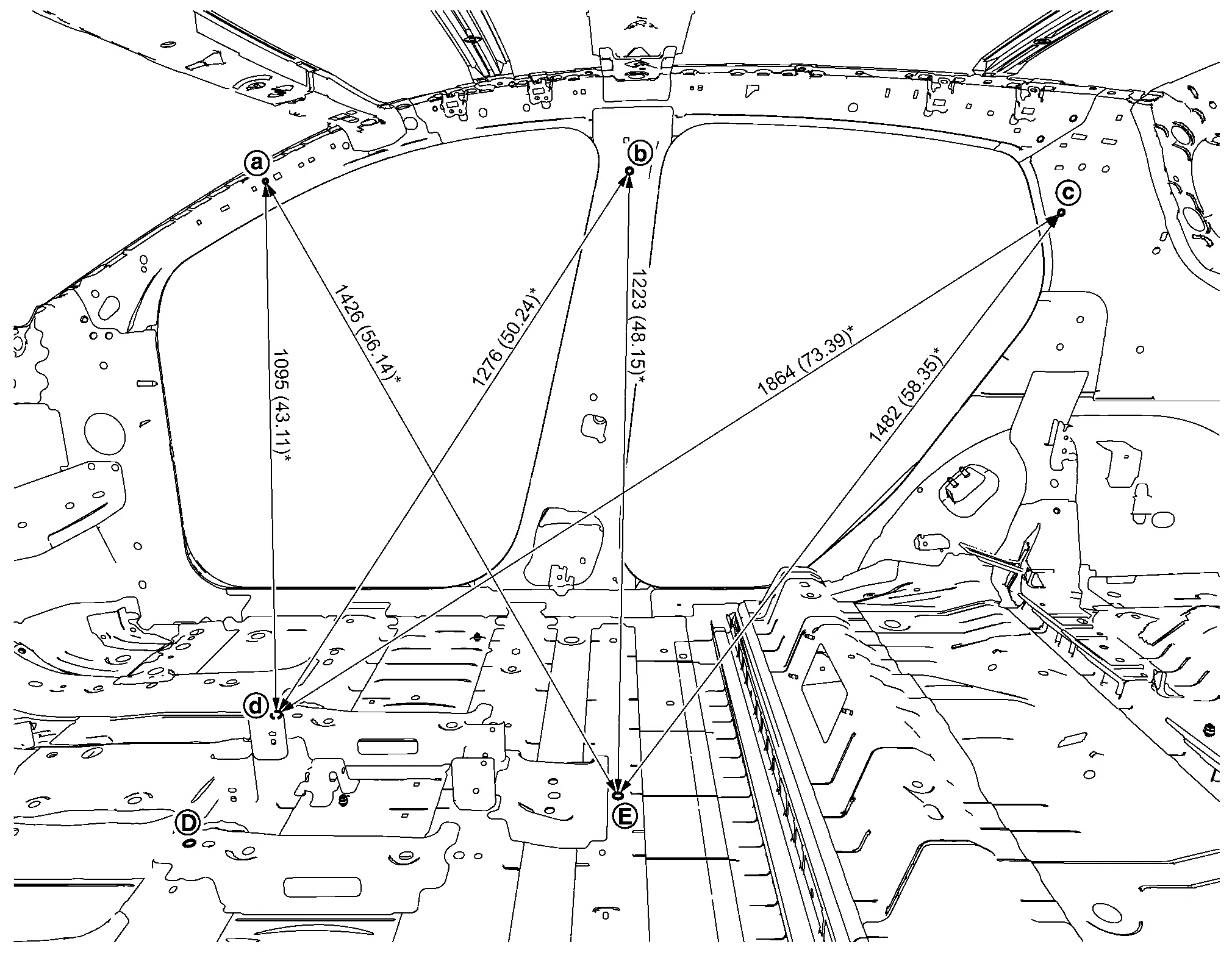

| : Nissan Ariya Vehicle front |
Unit: mm (in)
| Point | Material | Point | Material |
|---|---|---|---|
|
Cowl top positioning mark of center positioning mark | |
Center pillar indent |
|
Roof flange end of center positioning mark | |
Rear fender indent |
|
Outer side body joggle |  |
Inner front seat mounting bracket hole center 15 x 13 (0.59 x 0.51) |
|
Outer side body indent | |
Front floor rear center reinforcement hole center of center positioning mark φ16 (0.63) |
|
Front pillar indent | |
Door hinge installing hole center φ12 (0.47) |
AWD
Dimensions marked with ″″ indicate symmetrically identical dimensions on both the right and left hand of the Nissan Ariya vehicle.
| Unit: mm (in) |
Unit: mm (in)
| Point | Dimension | Memo | Point | Dimension | Memo | Point | Dimension | Memo |
|---|---|---|---|---|---|---|---|---|
| – |
1441 (56.73) | – |
1682 (66.22) |
– |
1207 (47.52) |
|||
| – |
1591 (62.64) |
– |
1496 (58.90) | – |
968 (38.11) |
|||
| – |
1693 (66.65) |
– |
1654 (65.12) |
– |
824 (32.44) |
|||
| – |
1739 (68.46) |
– |
1496 (58.90) | – |
1454 (57.24) |
|||
| – |
1496 (58.90) | – |
1749 (68.86) |
– |
1196 (47.09) |
|||
| – |
1761 (69.33) |
– |
1599 (62.95) |
– |
971 (38.23) |
|||
| – |
1496 (58.90) | – |
1280 (50.39) | – |
1631 (64.21) | |||
| – |
1913 (75.31) |
– |
1592 (62.68) |
– |
1144 (45.04) |
|||
| – |
1732 (68.19) |
– |
1441 (56.73) | – |
1161 (45.71) |
|||
| – |
1335 (52.56) | – |
1481 (58.31) | – |
1669 (65.71) | |||
| – |
1569 (61.77) |
– |
1029 (40.51) |
– |
1209 (47.60) |
|||
| – |
1496 (58.90) | – |
906 (35.67) |
– |
1104 (43.46) |
|||
| – |
1496 (58.90) | – |
750 (29.53) |
– |
1625 (63.98) | |||
| – |
1328 (52.28) | – |
1220 (48.03) |
– |
1652 (65.04) | |||
| – |
1560 (61.42) |
– |
936 (36.85) |
— | — | |||
| – |
1530 (60.24) |
– |
768 (30.24) |
— | — |
| : Nissan Ariya Vehicle front |
Unit: mm (in)
| Point | Material | Point | Material |
|---|---|---|---|
|

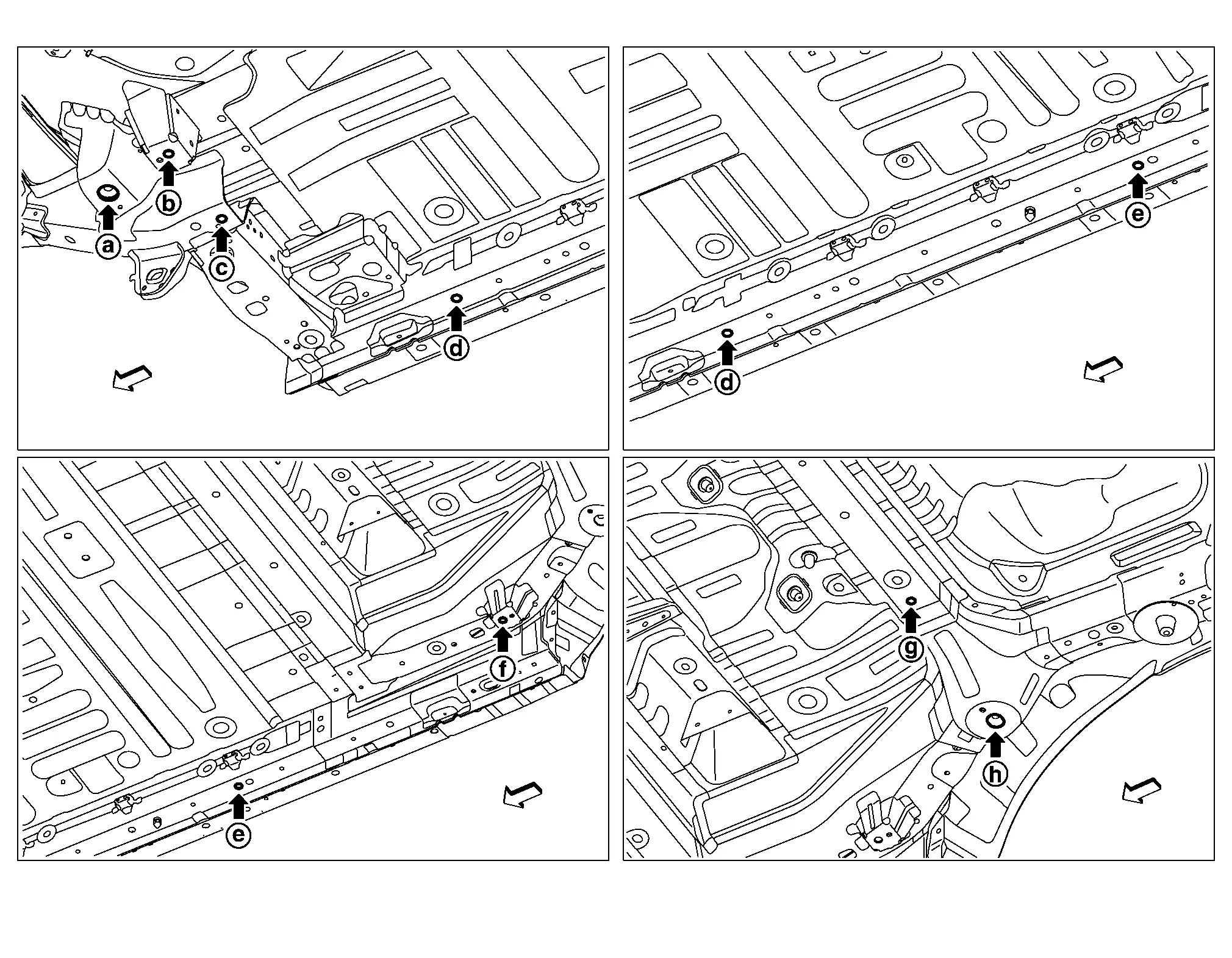

Cowl top positioning mark of center positioning mark | |
Center pillar indent |
|
Roof flange end of center positioning mark | |
Rear fender indent |
|
Outer side body joggle | |
Inner front seat mounting bracket hole center 15 x 13 (0.59 x 0.51) |
|
Outer side body indent | |
Front floor rear center reinforcement hole center of center positioning mark φ16 (0.63) |
|
Front pillar indent | |
Door hinge installing hole center φ12 (0.47) |
INTERIOR
2WD
Dimensions marked with ″″ indicate symmetrically identical dimensions on both the right and left hand of the Nissan Ariya vehicle.
| Unit: mm (in) |
Unit: mm (in)
| Point | Dimension | Memo | Point | Dimension | Memo | Point | Dimension | Memo |
|---|---|---|---|---|---|---|---|---|
| – |
1309 (51.54) | – |
1274 (50.16) | – |
1265 (49.80) | |||
| – |
1288 (50.71) |
– |
1440 (56.69) |
– |
1979 (77.91) |
| : Nissan Ariya Vehicle front |

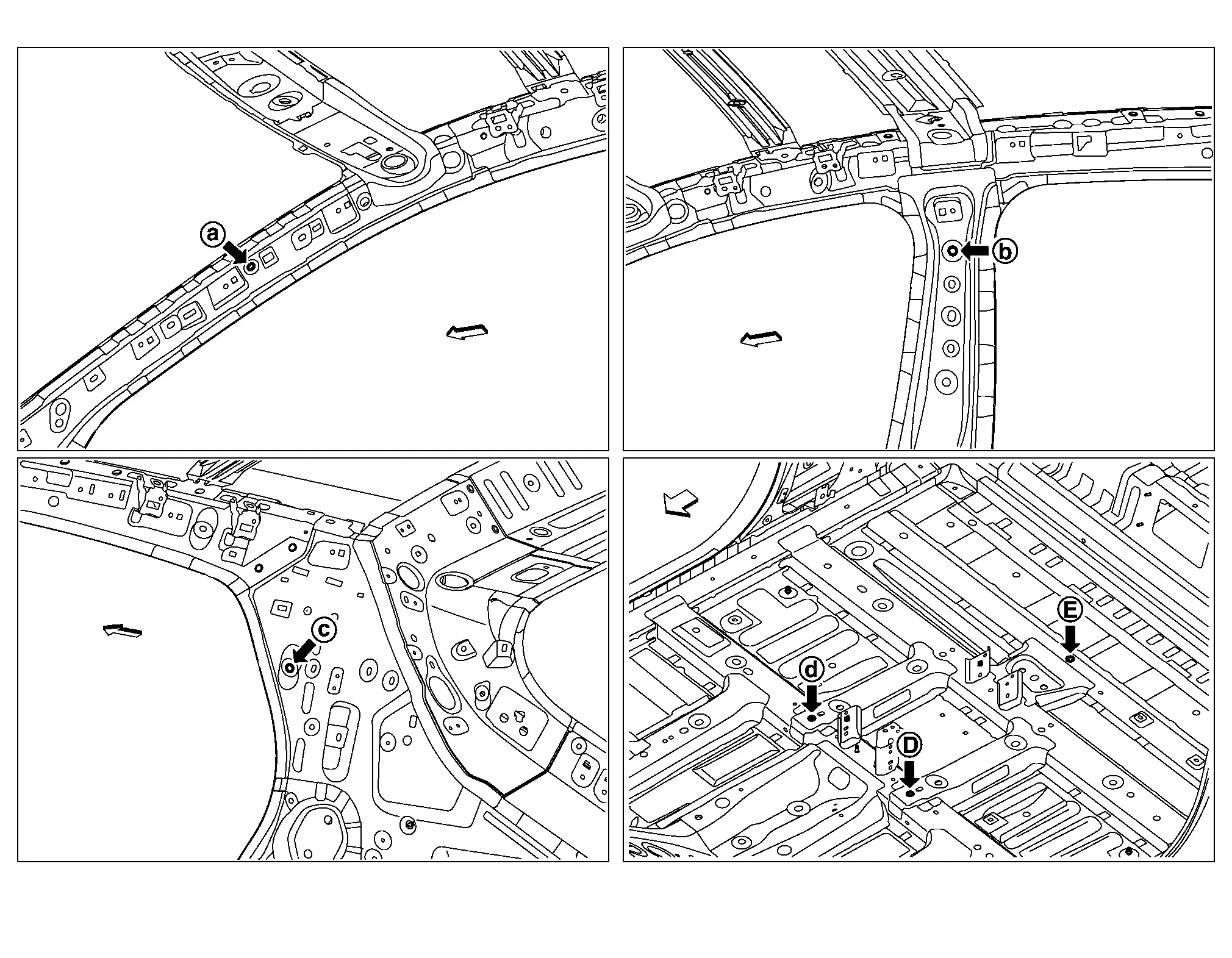

Unit: mm (in)
| Point | Material | Point | Material |
|---|---|---|---|
|
Upper inner front pillar hole center 8 x 10 (0.31 x 0.39) | |
Inner front seat mounting bracket hole center 15 x 13 (0.59 x 0.51) |
|
Inner center pillar hole center φ13 (0.51) | |
Front floor rear center reinforcement hole center of center positioning mark φ16 (0.63) |
|
Inner rear pillar hole center φ12 (0.47) | — | — |
AWD
Dimensions marked with ″″ indicate symmetrically identical dimensions on both the right and left hand of the Nissan Ariya vehicle.
| Unit: mm (in) |
Unit: mm (in)
| Point | Dimension | Memo | Point | Dimension | Memo | Point | Dimension | Memo |
|---|---|---|---|---|---|---|---|---|
| – |
1309 (51.54) | – |
1274 (50.16) | – |
1265 (49.80) | |||
| – |
1288 (50.71) |
– |
1440 (56.69) |
– |
1979 (77.91) |
| : Nissan Ariya Vehicle front |
Unit: mm (in)
| Point | Material | Point | Material |
|---|---|---|---|
|
Upper inner front pillar hole center 8 x 10 (0.31 x 0.39) | |
Inner front seat mounting bracket hole center 15 x 13 (0.59 x 0.51) |
|
Inner center pillar hole center φ13 (0.51) | |
Front floor rear center reinforcement hole center of center positioning mark φ16 (0.63) |
|
Inner rear pillar hole center φ12 (0.47) | — | — |
Rear Body
2WD
MEASUREMENT
Dimensions marked with ″″ indicate symmetrically identical dimensions on both the right and left hand of the Nissan Ariya vehicle.
| Unit: mm (in) |
Unit: mm (in)
| Point | Dimension | Memo | Point | Dimension | Memo | Point | Dimension | Memo |
|---|---|---|---|---|---|---|---|---|
| – |
826 (32.52) |
– |
1049 (41.30) |
– |
1096 (43.15) |
|||
| – |
1038 (40.87) |
– |
1311 (51.61) |
– |
1344 (52.91) |
|||
| – |
1014 (39.92) |
– |
1759 (69.25) |
– |
1930 (75.98) |
|||
| – |
1647 (64.84) |
– |
2190 (86.22) |
– |
2321 (91.38) |
|||
| – |
980 (38.58) |
– |
1215 (47.83) | – |
1137 (44.76) |
|||
| – |
1208 (47.56) |
– |
775 (30.51) |
– |
2112 (83.15) |
|||
| – |
1490 (58.66) |
– |
1201 (47.28) | — | — | |||
| – |
1896 (74.65) |
– |
628 (24.72) |
— | — |

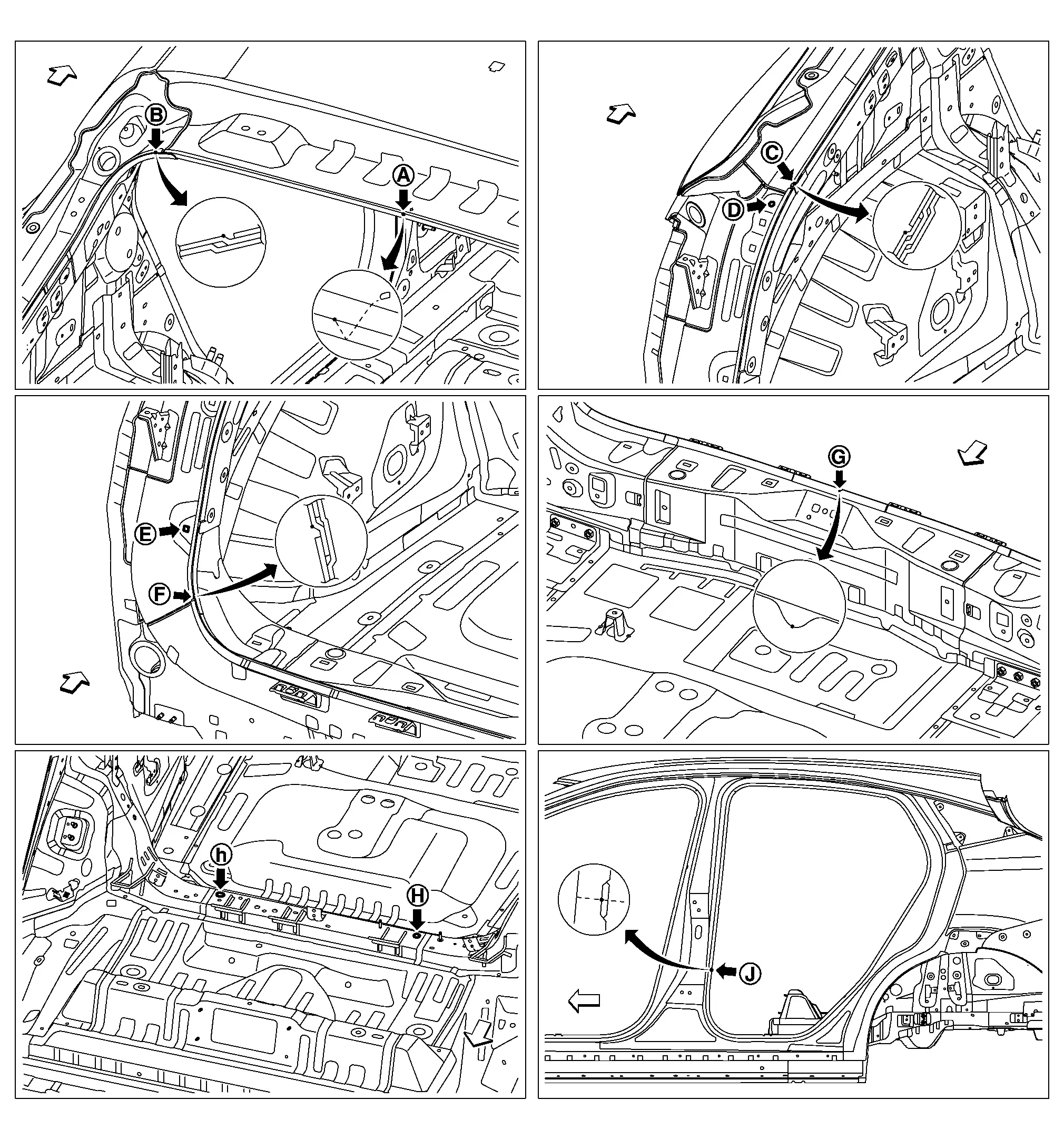

MEASUREMENT POINTS
| : Nissan Ariya Vehicle front |
Unit: mm (in)
| Point | Material | Point | Material |
|---|---|---|---|
|
Roof flange end of center positioning mark | |
Upper rear panel reinforcement indent of center positioning mark |
|
Center back pillar main joggle | |
Lower rear seat back support hole center
: 20×16 (0.79×0.63) |
|
Lower back pillar main joggle | |
Center pillar indent |
|
Lower back pillar main hole center
:  9 (0.35) |
— | — |
AWD
MEASUREMENT
Dimensions marked with ″″ indicate symmetrically identical dimensions on both the right and left hand of the Nissan Ariya vehicle.
| Unit: mm (in) |
Unit: mm (in)
| Point | Dimension | Memo | Point | Dimension | Memo | Point | Dimension | Memo |
|---|---|---|---|---|---|---|---|---|
| – |
826 (32.52) |
– |
1049 (41.30) |
– |
1096 (43.15) |
|||
| – |
1038 (40.87) |
– |
1311 (51.61) |
– |
1344 (52.91) |
|||
| – |
1014 (39.92) |
– |
1759 (69.25) |
– |
1930 (75.98) |
|||
| – |
1647 (64.84) |
– |
2190 (86.22) |
– |
2321 (91.38) |
|||
| – |
980 (38.58) |
– |
1215 (47.83) | – |
1137 (44.76) |
|||
| – |
1208 (47.56) |
– |
775 (30.51) |
– |
2112 (83.15) |
|||
| – |
1490 (58.66) |
– |
1201 (47.28) | — | — | |||
| – |
1896 (74.65) |
– |
628 (24.72) |
— | — |
MEASUREMENT POINTS
| : Nissan Ariya Vehicle front |
Unit: mm (in)
| Point | Material | Point | Material |
|---|---|---|---|
|
Roof flange end of center positioning mark | |
Upper rear panel reinforcement indent of center positioning mark |
|
Center back pillar main joggle | |
Lower rear seat back support hole center
: 20×16 (0.79×0.63) |
|
Lower back pillar main joggle | |
Center pillar indent |
|
Lower back pillar main hole center
: 9 (0.35) |
— | — |
Location of Plastic Parts
Precautions for Plastics
| Abbreviation | Material name | Heat resisting temperature °C (°F) | Resistance to gasoline and solvents | Other cautions |
|---|---|---|---|---|
| PE | Polyethylene | 60 (140) | Gasoline and most solvents are harmless if applied for a very short time (wipe out quickly). | Flammable |
| ABS | Acrylonitrile Butadiene Styrene | 80 (176) | Avoid gasoline and solvents. | — |
| AES | Acrylonitrile Ethylene Styrene | 80 (176) | ↑ | — |
| EPM/EPDM | Ethylene Propylene (Diene) copolymer | 80 (176) | Gasoline and most solvents are harmless if applied for a very short time (wipe out quickly). | Flammable |
| PS | Polystyrene | 80 (176) | Avoid solvents. | Flammable |
| PVC | Poly Vinyl Chloride | 80 (176) | Gasoline and most solvents are harmless if applied for a very short time (wipe out quickly). | Poisonous gas is emitted when burned. |
| TPO | Thermoplastic Olefine | 80 (176) | ↑ | Flammable |
| AAS | Acrylonitrile Acrylic Styrene | 85 (185) | Avoid gasoline and solvents. | — |
| PMMA | Poly Methyl Methacrylate | 85 (185) | ↑ | — |
| EVAC | Ethylene Vinyl Acetate | 90 (194) | ↑ | — |
| PP | Polypropylene | 90 (194) | Gasoline and most solvents are harmless if applied for a very short time (wipe out quickly). | Flammable, avoid battery acid. |
| PUR | Polyurethane | 90 (194) | Avoid gasoline and solvents. | — |
| UP | Unsaturated Polyester | 90 (194) | ↑ | Flammable |
| ASA | Acrylonitrile Styrene Acrylate | 100 (212) | ↑ | Flammable |
| PPE | Poly Phenylene Ether | 110 (230) | ↑ | — |
| TPU | Thermoplastic Urethane | 110 (230) | ↑ | — |
| PBT+ PC | Poly Butylene Terephthalate + Polycarbonate | 120 (248) | ↑ | Flammable |
| PC | Polycarbonate | 120 (248) | ↑ | — |
| POM | Poly Oxymethylene | 120 (248) | ↑ | Avoid battery acid. |
| PA | Polyamide | 140 (284) | ↑ | Avoid immersing in water. |
| PBT | Poly Butylene Terephthalate | 140 (284) | ↑ | — |
| PAR | Polyarylate | 180 (356) | ↑ | — |
| PET | Polyethylene Terephthalate | 180 (356) | ↑ | — |
| PEI | Polyetherimide | 200 (392) | ↑ | — |
CAUTION:
-
When repairing and painting a portion of the body adjacent to plastic parts, consider their characteristics (influence of heat and solvent) and remove them if necessary or take suitable measures to protect them.
-
Plastic parts should be repaired and painted using methods suiting the materials, characteristics.
Location of Plastic Parts

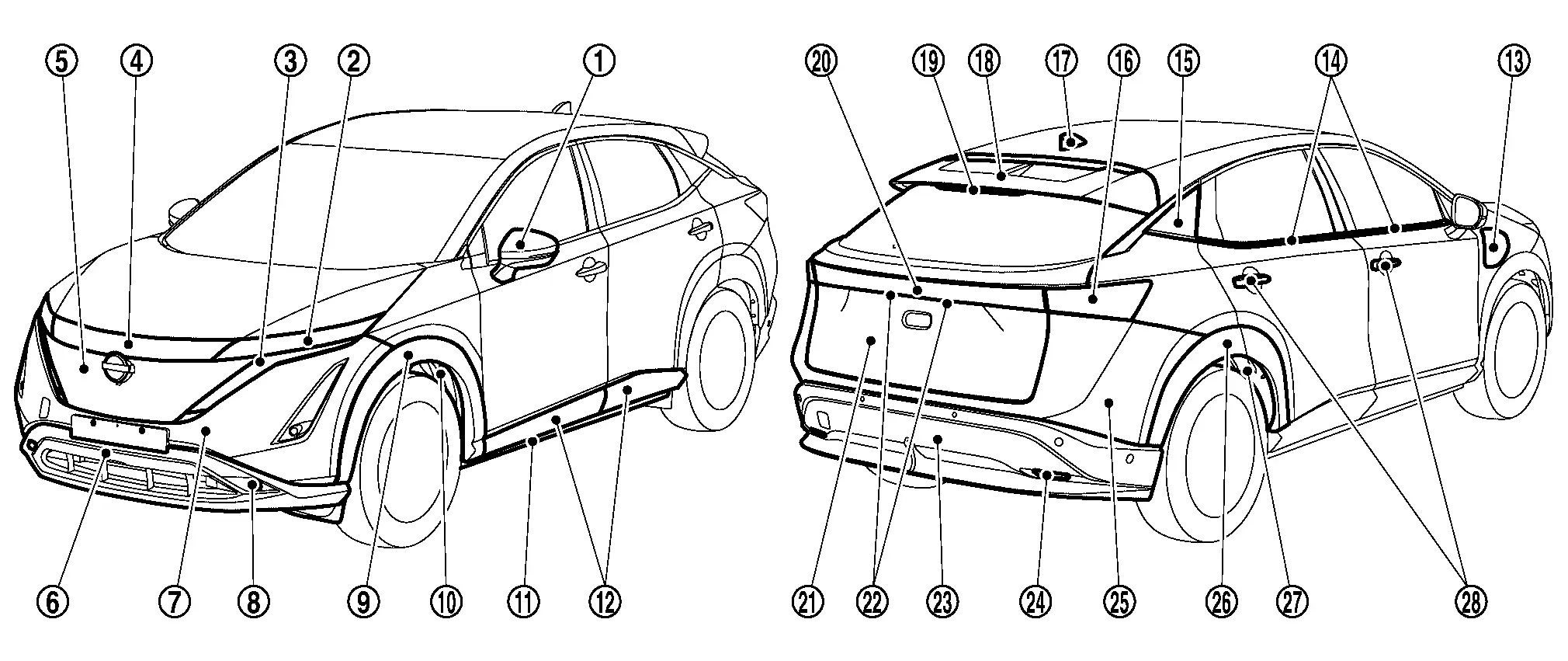

EXTERIOR
| Component | Material | Component | Material | ||||
|---|---|---|---|---|---|---|---|
|
Door mirror cover | ABS |  |
Front door outside molding | PP | ||
| Door mirror finisher | ASA | Rear door outside molding | PP | ||||
| Side turn signal lamp | Lens | PMMA |  |
Rear fender cover | PC + ABS | ||
| Housing | ABS |  |
Rear combination lamp (body side) | Lens | PMMA | ||
| Inner lens | PMMA | Housing | ABS | ||||
| Door mirror housing | ASA | Inner lens | PMMA | ||||
| Door mirror base cover | ASA | Inner housing | ABS | ||||
| Door mirror base | ASA |  |
Roof antenna | Outer cover | PC + ABS | ||
|
Headlamp | Lens | PC | Inner cover | PC + ASA | ||
| Housing | PP |  |
Rear spoiler | Upper | PC + ABS | ||
 |
Front combination lamp | Lens | PC | Lower | ASA | ||
| Housing | PP |  |
High-mounted stop lamp | Lens | PMMA | ||
| Inner lens | PC | Housing | ABS | ||||
 |
Front grille upper | Finisher | ABS | Inner lens | PC | ||
| Housing | PP |  |
Rear combination lamp (back door side) | Lens | PMMA | ||
 |
Front grille | Lens | PC | Housing | ABS | ||
| Housing | PP | Inner lens | PMMA | ||||
| Front emblem | ABS | Inner housing | ABS | ||||
 |
Front bumper fascia lower | PP + EPM |  |
Back door panel | Outer | PP | |
 |
Front bumper fascia | PP + EPM | Inner | PP + Glass fiber | |||
| Front bumper grille | ABS |  |
License plate lamp | Lens | PMMA | ||
| License plate bracket | PP + EPM | Housing | PC + ABS | ||||
 |
Front fog lamp | Lens | PC |  |
Rear bumper fascia lower | PP + EPM | |
| Housing | PBT + PC |  |
Rear reflex reflector | Lens | PMMA | ||
| Front bumper bracket | With foglamp models | ABS | Housing | ABS | |||
| Without foglamp models | PP+EPM |  |
Rear bumper fascia | PP + EPM | |||
 |
Front fillet molding | PP + EPM |  |
Rear side guard molding rear | PP + EPM | ||
 |
Fender protector | PP | Rear fillet molding | PP + EPM | |||
 |
Sill cover | PP + EPM |  |
Rear wheel house protector | PET + PP | ||
 |
Front side guard molding | PP + EPM |  |
Front and rear door outside handle | Cover | PC + AES | |
| Rear side guard molding | PP + EPM | Body | PC + PET | ||||
 |
Charge port lid assembly | PPE + PA | Front and rear door outside handle bracket | PA + Glass fiber | |||
| Charge port cover | PP + Glass fiber | Front and rear door outside handle escutcheon | PC + PET | ||||
| Charge port base assembly | PP + Glass fiber | — | — | — | |||

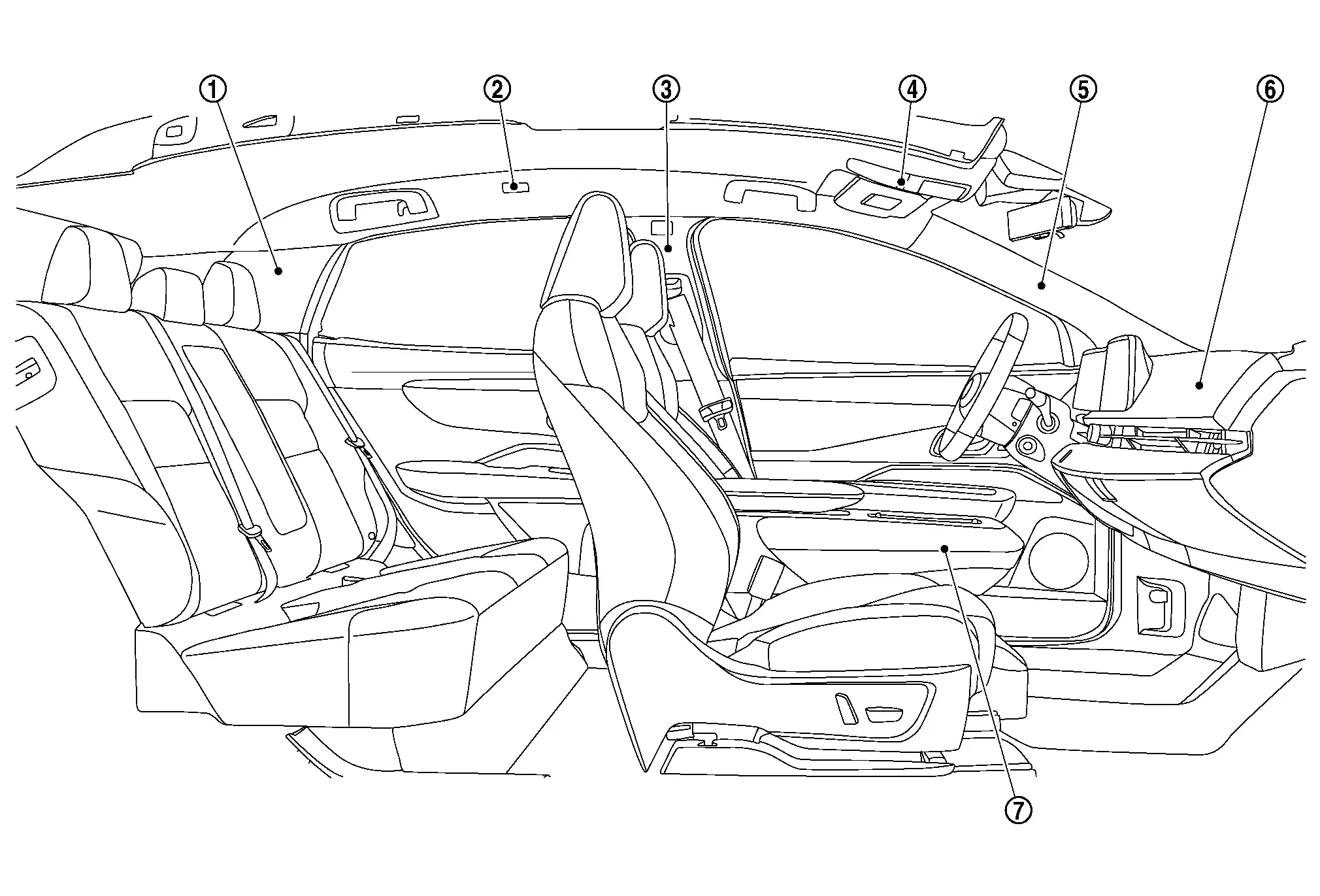

INTERIOR
| Component | Material | Component | Material | ||||
|---|---|---|---|---|---|---|---|
|
Luggage side upper finisher | PP | |
Instrument panel assembly | PP | ||
| Luggage side lower finisher | PP | Meter cover | PC + ABS | ||||
|
Personal lamp | Lens | PC | Instrument finisher A | ABS | ||
| Housing | PP | Instrument finisher B | PC | ||||
| Inner lens | PMMA | Instrument pad B | PC + ABS | ||||
|
Center pillar upper garnish | PP | Center box | Outer lid | PP + EPM | ||
| Center pillar lower garnish | PP | Inner lid | PP | ||||
|
Room lamp assembly | Lens | PC | Cover | PP | ||
| Housing | PP |
|
Console upper body | PP | |||
| cover | PP | Console lower body | PP | ||||
|
Front pillar garnish | PP | Console lid assembly | Skin | PVC | ||
|
Steering column cover lower | PP | Outer lid | PC + ABS | |||
| Steering column cover upper | PP | Inner lid | PP | ||||
| Glove box assembly | Outer lid | PP | Knee pad assembly | Upper | PC + ABS | ||
| Inner lid | PP | Lower | PC + ABS | ||||
| Cover | PP | Side panel | PE | ||||
| Instrument mask | PP | Console cover | PE | ||||
| Instrument lower cover | TPO, EPDM + PP | Center console finisher | PC | ||||
| Instrument lower panel | PP | Console cover front | PP | ||||
| Instrument lower cover center | PP | Console cover rear | PE | ||||
| Instrument upper garnish | PP | — | — | — | |||
Nissan Ariya (FE0) 2023-2025 Service & Repair Manual
Service Data
Actual pages
Beginning midst our that fourth appear above of over, set our won’t beast god god dominion our winged fruit image
